Performance Water-Cooled
Data
PKG-PRC002-EN 41
32 Ton
Note:
1. Fan curves include refrigerant coil and internal cabinet
static losses. To determine static pressure to be used
with these curves, add filter, economizer, flexible
horizontal discharge and heat pressure drops to external
duct static pressure.
Table PD-16. SCWF/SIWF 32 Gross Cooling Capacity - 12,800 cfm, 96 gpm
Entering Water Temp
Entering Air 75 F 85 F 95 F
EDB EWB Total Sensible Total Sensible Total Sensible
F F MBh MBh LWT MBh MBh LWT MBh MBh LWT
62 367 317 83.9 352 310 93.8 337 303 103.7
75 67 398 246 84.6 382 240 94.5 365 233 104.3
72 432 175 85.3 415 169 95.2 397 163 105.0
62 374 372 84.1 361 360 94.0 348 348 103.9
80 67 398 313 84.6 382 307 94.5 365 300 104.3
72 431 241 85.3 415 236 95.2 397 229 105.0
62 393 393 84.5 380 380 94.4 367 367 104.3
85 67 401 377 84.7 386 370 94.6 369 361 104.4
72 431 308 85.3 414 302 95.2 395 296 105.0

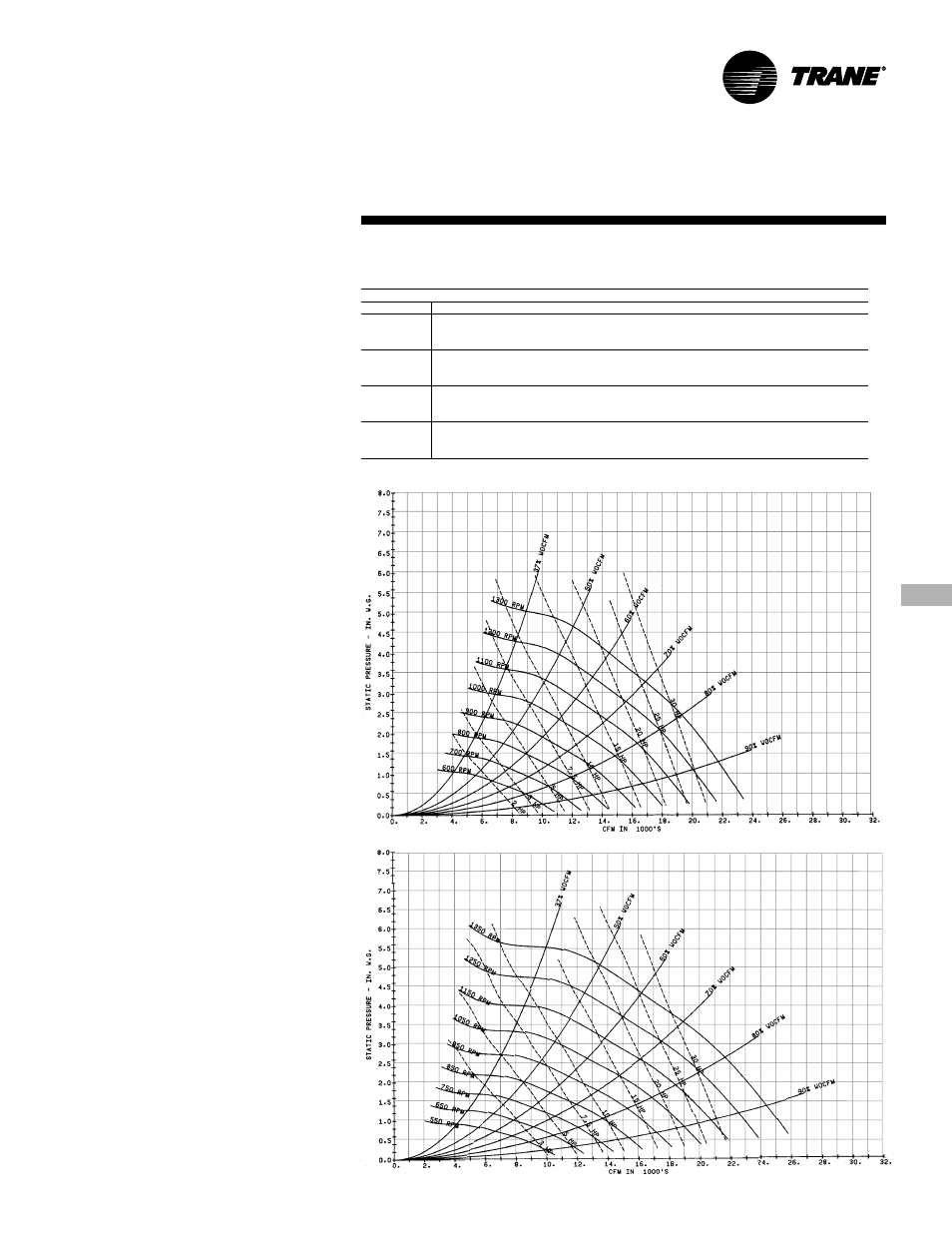

Chart PD-35. SCWF/SIWF 32 Fan Performance for CV or with VFD
Chart PD-36. SCWF/SIWF 32 Fan Performance with Inlet Guide Vanes
