Performance Water-Cooled
Data
PKG-PRC002-EN 57
72 Ton
Note:
1. Fan curves include refrigerant coil and internal cabinet
static losses. To determine static pressure to be used
with these curves, add filter, economizer, flexible
horizontal discharge and heat pressure drops to
external duct static pressure.
Table PD-40. SCWF/SIWF 72 Gross Cooling Capacity - 28,800 cfm, 216 gpm
Entering Water Temp
Entering Air 75 F 85 F 95 F
EDB EWB Total Sensible Total Sensible Total Sensible
F F MBh MBh LWT MBh MBh LWT MBh MBh LWT
62 799 690 83.7 768 675 93.6 735 660 103.4
75 67 868 536 84.3 834 522 94.2 798 509 104.0
72 941 381 85.0 905 368 94.9 866 355 104.7
62 814 812 83.8 787 788 93.7 758 758 103.7
80 67 868 681 84.3 833 668 94.2 798 653 104.0
72 941 526 85.0 904 514 94.8 866 500 104.7
62 859 859 84.2 832 832 94.2 802 802 104.1
85 67 874 819 84.4 841 803 94.3 807 786 104.1
72 940 670 85.0 904 658 94.8 865 644 104.7

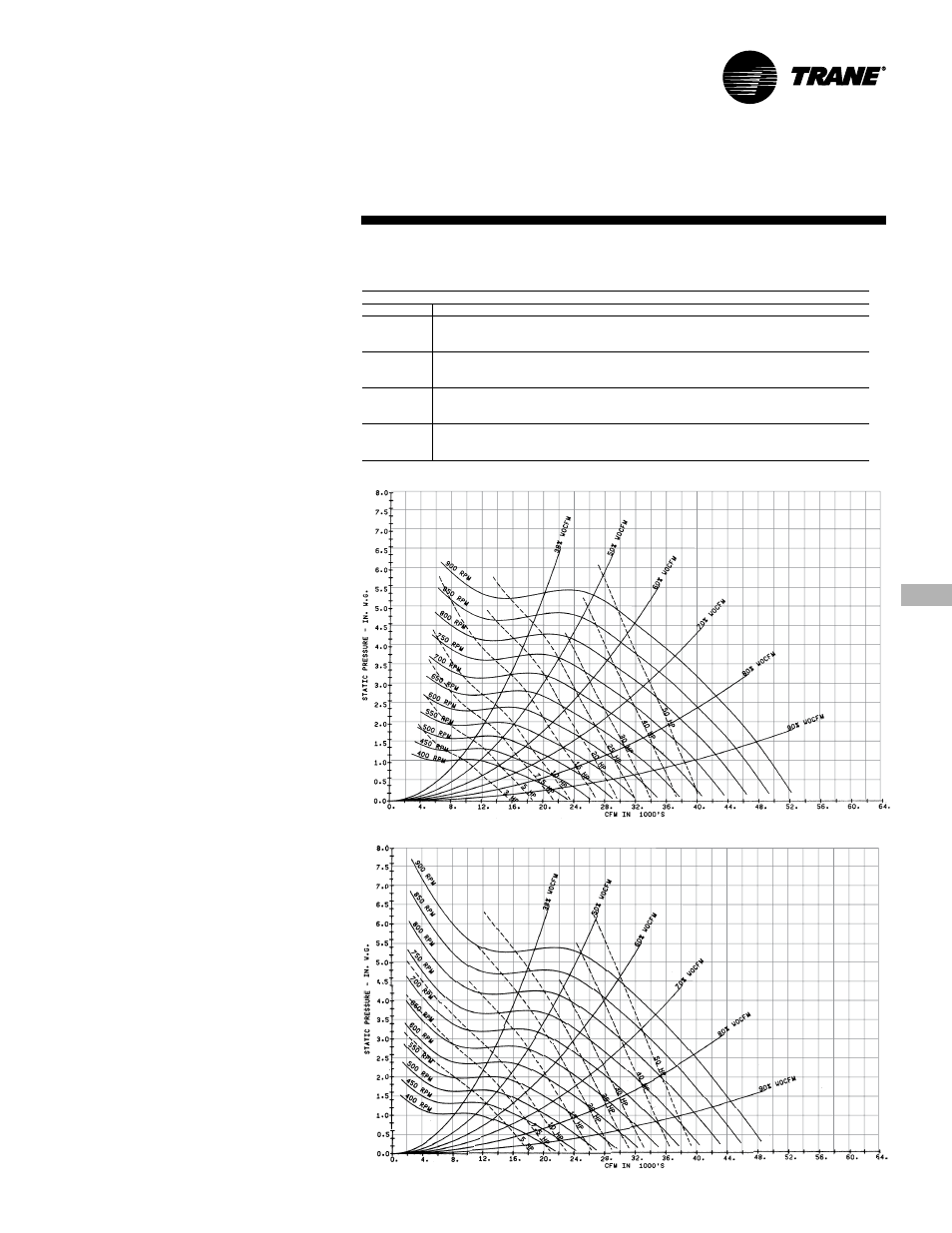

Chart PD-51. SCWF/SIWF 72 Fan Performance for CV or with VFD
Chart PD-52. SCWF/SIWF 72 Fan Performance with Inlet Guide Vanes
