Before use

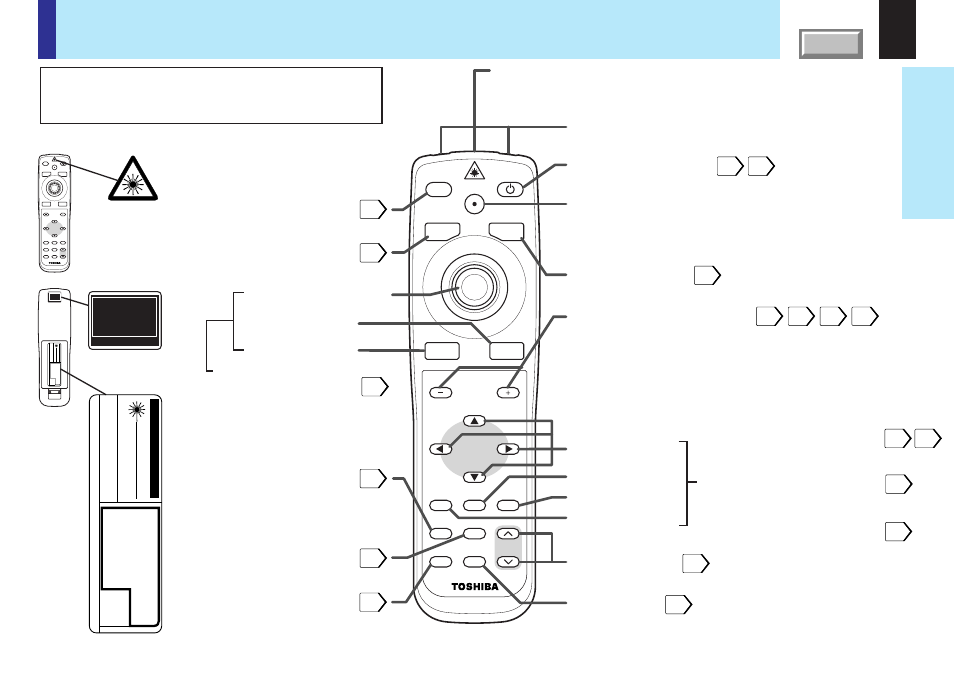

Names of each part on the remote control
INPUT button
MUTE button
RESIZE buttons
R-CLICK button
L-CLICK button
Pointer control button
VOLUME/ADJUST buttons
AUTO KEYSTONE button
AUTO SET button
LASER button
PIP button
FREEZE button
CALL button
ON/STANDBY button
Laser emission part
(The models TLP-X10Y, TLP-X11Y, TLP-X20Y and TLP-X21Y
do not have this part. )
Remote control transmission part
To display the laser pointer by pointing the laser emission part
toward the screen. (The models TLP-X10Y, TLP-X11Y, TLP-X20Y
and TLP-X21Y do not have this button. )
To set and/or adjust values on the menu.
To adjust volume when the menu is not displayed.
To select page and/or thumbnail in the memory card operation.
Hereafter called "VOL/ADJ button" in this manual.
To select the input source.
To correct the keystone distortion
of the picture automatically.
To use as
USB remote control mouse.
To turn the projector on or off (Standby).
To adjust the image of RGB input automatically.
To enlarge the picture size.
To cut off the picture and sound temporarily.
To display the video input image
as a small size picture in the
computer image display window.
To display the information.
To freeze the picture.
To display the menu screen and/or
select the operation on the menu
screen.
Also use the selection buttons,
ENTER button and EXIT button to
operate the memory card.
Use the selection buttons and
EXIT button to enlarge the picture.
ENTER button
Selection buttons
EXIT button
MENU button
MENU
ON/STANDBY
LASER
INPUT
L-CLICK
R-CLICK
ENTER
KEYSTONE
AUTO
SET
EXIT
PIP
FREEZE
MUTE
CALL
RESIZE
VOLUME/ADJUST
Caution - use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Location of the labels
AVOID
EXPOSURE LASER
MENU
ON/STANDBY
LASER
INPUT
L-CLICK
R-CLICK
ENTER
KEYSTONE
AUTO
SET
EXIT
PIP
FREEZE
MUTE
CALL
RESIZE
VOLUME/ADJUST
LASER RADIATION
DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT
LASER-STRAHLUNG
NICHT
IN
DEN
STRAHL
BLICKEN,
LASER
KLASSE
2
PRODUKT
RAYONNEMENT
LASER
NE
PAS
REGARDER
DANS
LE
FAISCEAU
APPAREIL
A
LASER
DE
CLASSE
2
WAVE
LENGTH (WELLENÄNGE,
LONGUEUR
D' ONDE) : 650nm
MAX
OUTPUT
(MAX AUSGANGSLEISTUNG,
PUISSANCE
MAXIMA) : 1mW
LASER RADIATION
DO NOT STARE INTO BEAM
WAVE LENGT
H
:
650nm
MAX OUTPUT
:
1
mW
CLASS
II
LASER
PRODUCT
COMPLIES WITH DHHS 21 CFR SUBCHAPTER J
TOSHIBA AMERICA CONSUMER PRODUCTS,INC.
82 TOTOWA RD., WAYNE, NJ 07470, U.S.A.
MANUFACTURED:
SEPTEMBER 2000
PLACE OF
MANUFACTURE:A
IEC60825-1 A1;1997
REMOTE
CONTROL
MODEL
C
T
–90057
CAUTION
RADIATION IS EMITTED
FROM THIS APERTURE
MADE IN JAPAN
LASER RADIATION
DO NOT STARE INTO BEAM, CLASS 2 LASER PRODUCT
LASER-STRAHLUNG
NICHT
IN
DEN
STRAHL
BLICKEN,
LASER
KLASSE
2
PRODUKT
RAYONNEMENT
LASER
NE
PAS
REGARDER
DANS
LE
FAISCEAU
APPAREIL
A
LASER
DE
CLASSE
2
WAVE
LENGTH (WELLENÄNGE,
LONGUEUR
D' ONDE) : 650nm
MAX
OUTPUT
(MAX AUSGANGSLEISTUNG,
PUISSANCE
MAXIMA) : 1mW
LASER RADIATION
DO NOT STARE INTO BEAM
WAVE LENGTH
:
650nm
MAX OUTPUT
:
1mW
CLASS
II
LASER
PRODUCT
COMPLIES WITH DHHS 21 CFR SUBCHAPTER J
TOSHIBA AMERICA CONSUMER PRODUCTS,INC.
82 TOTOWA RD., WAYNE, NJ 07470, U.S.A.
MANUFACTURED:
SEPTEMBER 2000
PLACE OF
MANUFACTURE:A
IEC60825-1 A1;1997
REMOTE
CONTROL
MODEL
CT–90057
CAUTION
AVOID
EXPOSURE LASER
RADIATION IS EMITTED
FROM THIS APERTURE
MADE IN JAPAN
(The models TLP-X10Y, TLP-X11Y, TLP-X20Y and TLP-X21Y do not have the labels.)
REAR
