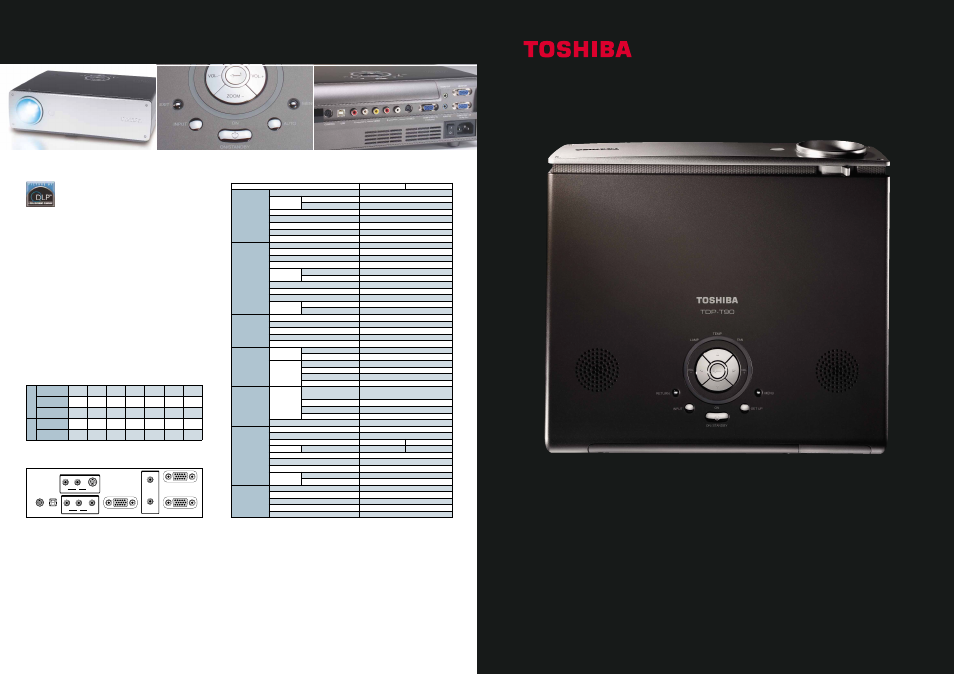

background image

SCREEN SIZE

Diagonal

(inches)

40”

60”

80”

100”

150”

200”

250”

Horizontal (m)

0.81

1.22

1.63

2.03

3.05

4.06

5.08

Vertical (m)

0.61

0.91

1.22

1.52

2.29

3.05

3.81

DIS

T

ANCE

Minimum

(metres)

1.62

2.44

3.25

4.00

6.10

8.10

10.00

Maximum

(metres)

1.95

2.93

3.90

4.88

7.30

9.76

Projection Distance

Connections

AUDIO

OUT

AUDIO

IN

COMPUTER 2 IN

(Y/P

B

/P

R

)

COMPUTER 1 IN

(Y/P

B

/P

R

)

MONITOR OUT

R

L

VIDEO

CONTROL

USB

S-VIDEO

L

R

Box Contents

Operating manual & CD-ROM, 3m

RGB lead, Power cable, Remote

control with remote mouse

functionality, Batteries, Carry case,

WiFi PC Card (TW90), 0.2m RGB

Camera connection lead (T91)

Key Features

T91 Detachable document camera,

TW90 - Integrated WiFi, 80211.b,

Integrated Scalar / De-interlacer,

Colour Accuracy Technology,

Dual PC inputs,

Monitor Re-Drive (Active Loop),

Audio In and Out,

One Button Auto-Setup,

Eco Mode,

Ideal for both Video and Data,

Auto Input search

t90 series

PVP00017

** Actual lamp life may vary based on ambient environment

Model

T90 / TW90

T91

Display

Display Type

DLP

Shape

Aspect Ratio

4:3 (16:9 Switchable)

Size

0.7” XGA panel x 1

Number Of Pixels

786,432 pixels (1,024 x 768)

Drive Method

DDR 12 degree (DDP2000)

Contrast Ratio

2000:1

Resolution

Real XGA

Upgraded Video Processing

DDP2000 Scalar / De-Interlacer


Brightness (ANSI)

2000 lm

Lamp

200W / 160W (Eco) - TLPLW3

Service Life of Lamp **

2000h / 3000h (Eco mode)

Colour Reproduction

16.7 Million Colours

Colour
Wheel (DLP)

Segments (Qty)

RGBW 4 Segment

Speed

2X

Projection distance (m)

1.2 - 10.0m (3.9ft - 32.8ft)

Picture Size (Diagonal)

0.62 - 6.25m (24.6 - 246”)

Projection Method

Front, Rear, or Ceiling

Keystone
Correction

Vertical

Digital +/-15 degrees

Horizontal

None

Lens

Optical zoom and Focus Methods

Manual Zoom & Focus

"F" Value Aperture

F = 2.4 - 2.65

"f" Value Focal length (mm)

f = 28 - 35.6mm

Zoom Ratio

1.2 x

Throw Ratio

2.0 - 2.4:1

Signal

Compatible
Frequency

Horizontal (KHz)

15 - 93kHz

Vertical (Hz)

50 - 85Hz

Input
Signals

Video Signal

NTSC / PAL / SECAM

Colour Difference

480i/480p/576i/576p/1080i/720p

RGB Real Display

VGA / SVGA / XGA

RGB Compressed

SXGA / UXGA

Terminals

Input

Video Signal

1x RCA, 1x S-Video, Component

Video (via D-Sub 15)

Computer Signal

2x RGB, WiFi (TW90)

Audio Signal

1 x Stereo Mini Jack, 2 x RCA

Control and Other

USB, RS232C (mini DIN8 pin)

Output

1 x RGB, 1x Stereo Mini Jack

General

Operating Noise

35dB (32dB Eco)

Embedded Speaker

1W Mono

Weight (kg)

2.8kg 3.7kg

Dimensions

W x D x H

298 x 275 x 101 383 x 275 x 101

Power source

AC100-240V, 50 / 60Hz

Power Consumption (W)

300W

Security

Kensington Slot

Warranty

Projector

3 Year RTB

Lamp

90 Days

DLP™ technology

is a revolutionary

projection solution that uses an optical

semiconductor to manipulate light

wherever visual excellence is in demand.

It is the only display solution that enables home

and business projectors to create an entirely digital

connection between a graphic or video source and

the screen in front of you. The result, maximum

fidelity - a picture whose clarity, brilliance and

colour must be seen to be believed

Colour Accuracy Technology

Toshiba has developed a unique ‘Y’ Gamma

colour correction technology enabling accurate

colour reproduction when projecting data and

video signals.

E & O E - Product design and specification subject to change or modification without notice

*DLP is a registed trademark of Texas Instruments

TOSHIBA INFORMATION SYSTEMS (U.K.) LTD.

Projection and Display Technology

Toshiba Court, Weybridge Business Park,

Addlestone Road, Weybridge, Surrey KT15 2UL

www.toshiba.co.uk/projectors

TOSHIBA

M A K I N G L I G H T W O R K

t90 series

Document
Camera
Arm

Type

Image Element

Effective Pixels

Focusing

Lens

T91 - Type 2 Detachable

1/4.2 type honeycomb CCD

629,856 (648H x 486V x2)

Switching in two steps

F = 2.8, F = 2.8mm
