Ricoh H545 User Manual
Page 115
Changing The Paper Size In The Lower Cassette
99
5
G

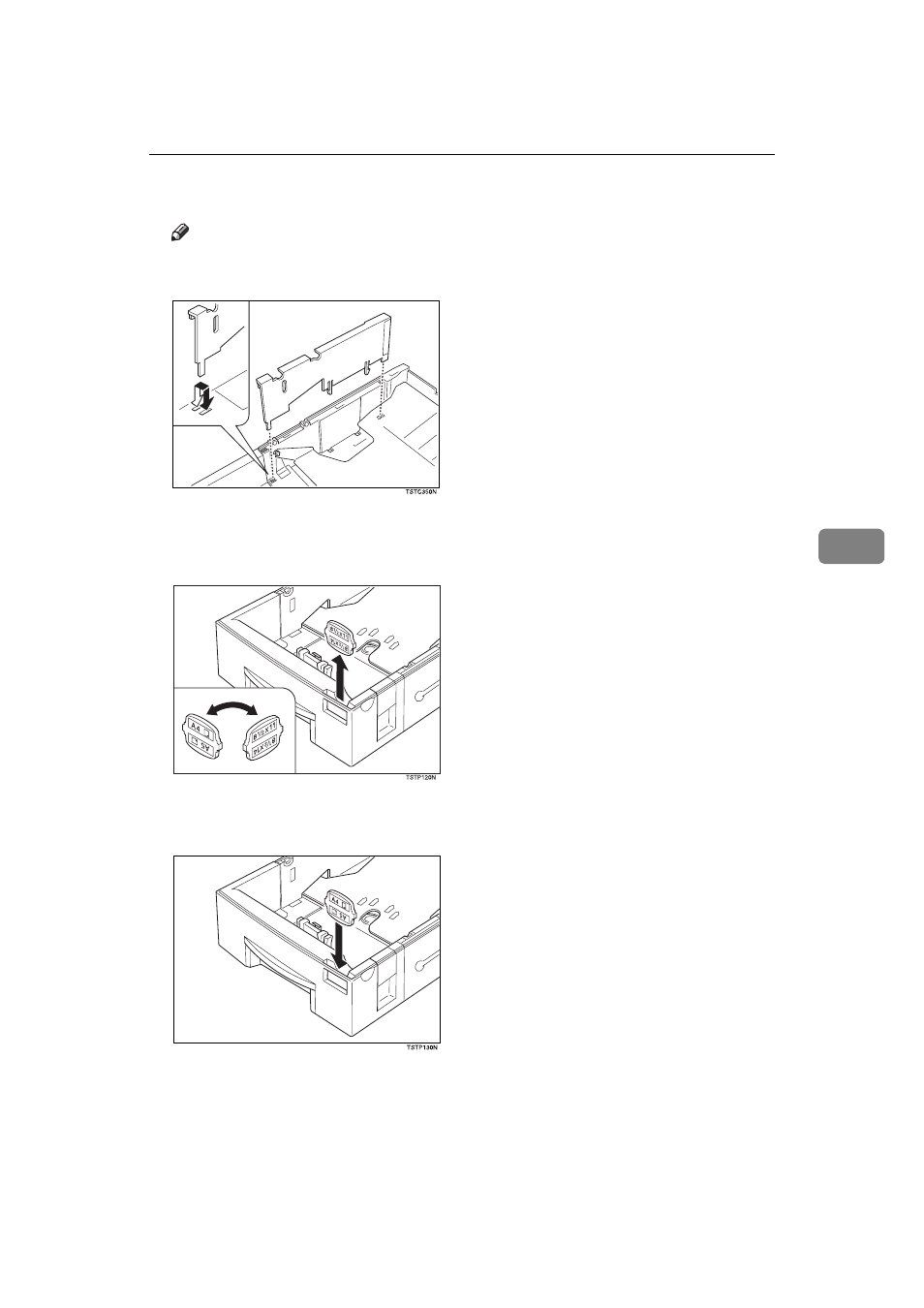

Replace the side rail in the A4 slots.
Note
❒ There are two sets of slots and they are marked on the base. Make sure that
the upper and lower tabs on the rail both fit in the inner set of slots.
H
Repeat steps
GGGG and HHHH for the other rail.
I
Remove the paper size plate located at the front of the cassette.
J
Replace the plate, orienting it so that the A4 symbol is visible in the win-
dow at the front of the cassette.
