Page 78
Chapter 5: Installation
61
D3445-1

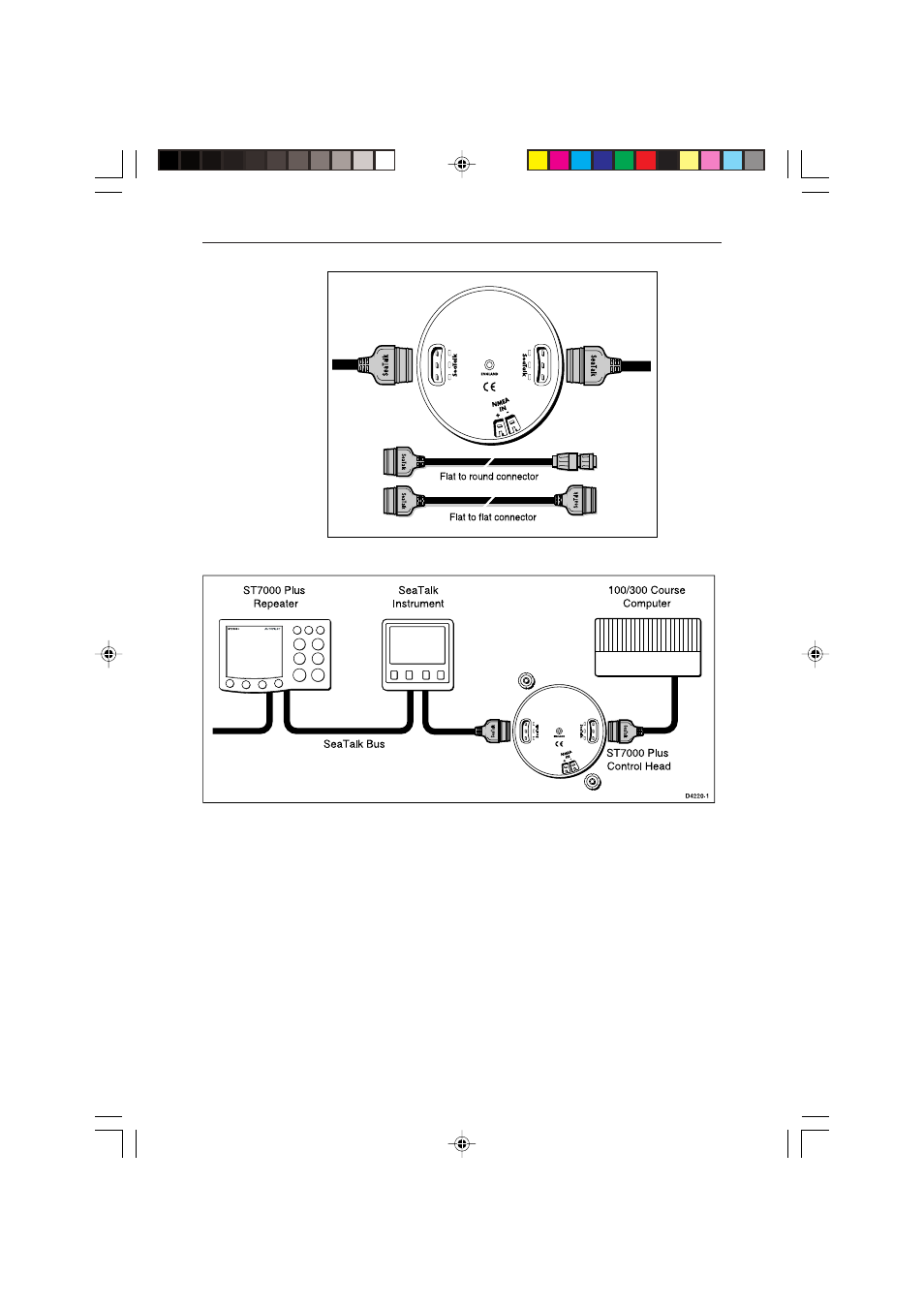

Typical SeaTalk Cabling
5.3 NMEA Interface
ST7000 Plus accepts NMEA navigation data for display and use in
Track and Wind modes. The required NMEA data formats are shown
in the table at the end of this section.
Cabling
The NMEA port should be connected to a Navigator or Wind
instrument.
118ch05.p65
07/01/99, 12:43
61
