4 ST7000 Plus Autopilot Control Unit Owner’s Handbook
2.2 Display Layout

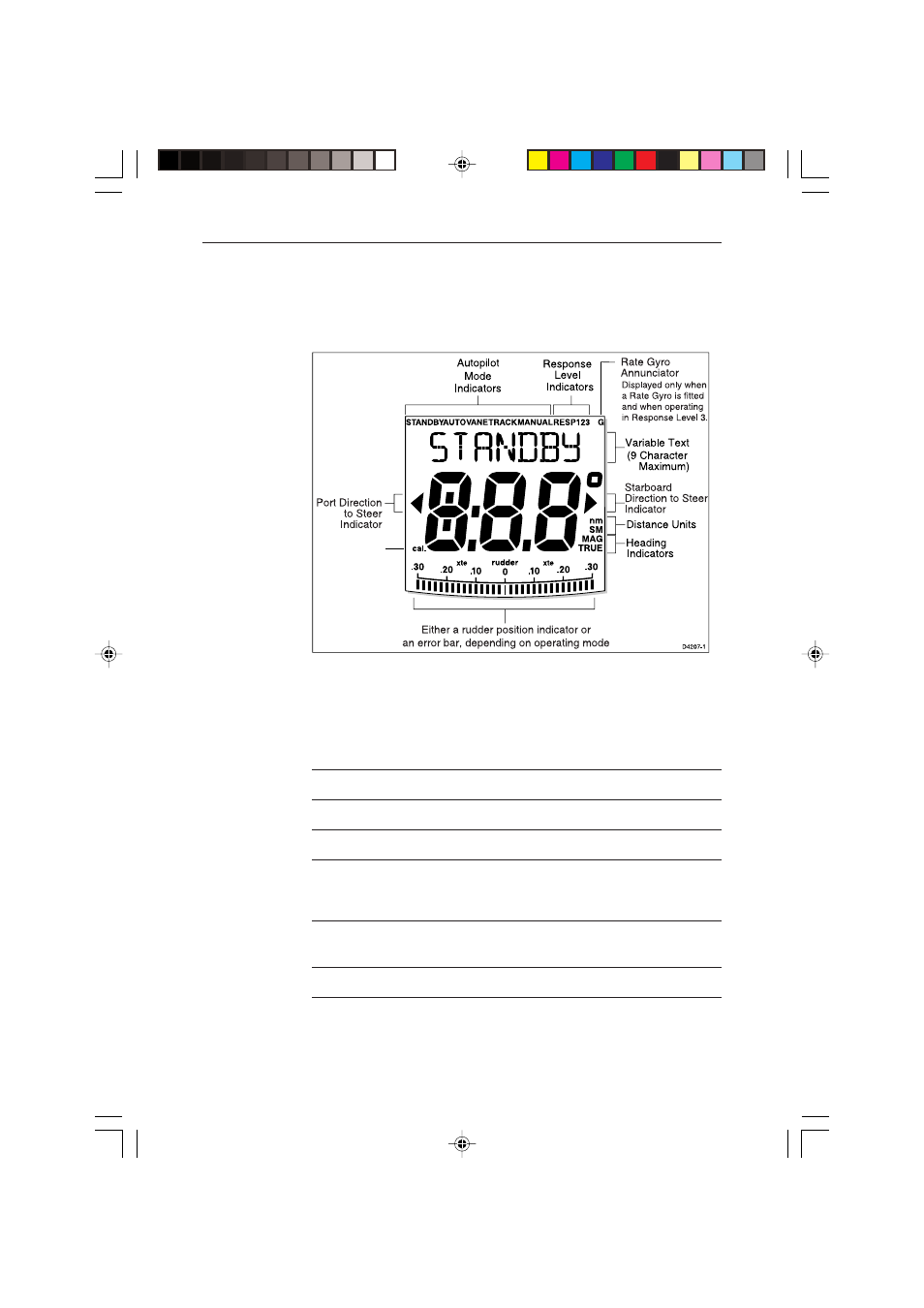

The following illustration shows all the elements, together with a brief
description, that make up the ST7000 Plus control unit LCD display.
Calibration
Indicator
Displayed on
calibration
pages
Bar Graph
The bar graph at the bottom of the display can be set up either as a
rudder position indicator, or as an error bar. If it has been set as an error
bar, the display depends on the current autopilot mode, as follows:
Mode Bar
Standby Rudder position indicator, in degrees.
Auto Heading error bar. Deviation from locked course, in degrees.
Track Cross track error (XTE) bar. Deviation from ground track. The
bar scaling is in the currently-selected distance units
(displayed on pages showing distances).
Wind Wind angle error bar. Deviation from locked apparent wind
angle, in degrees.
Manual Rudder position indicator
