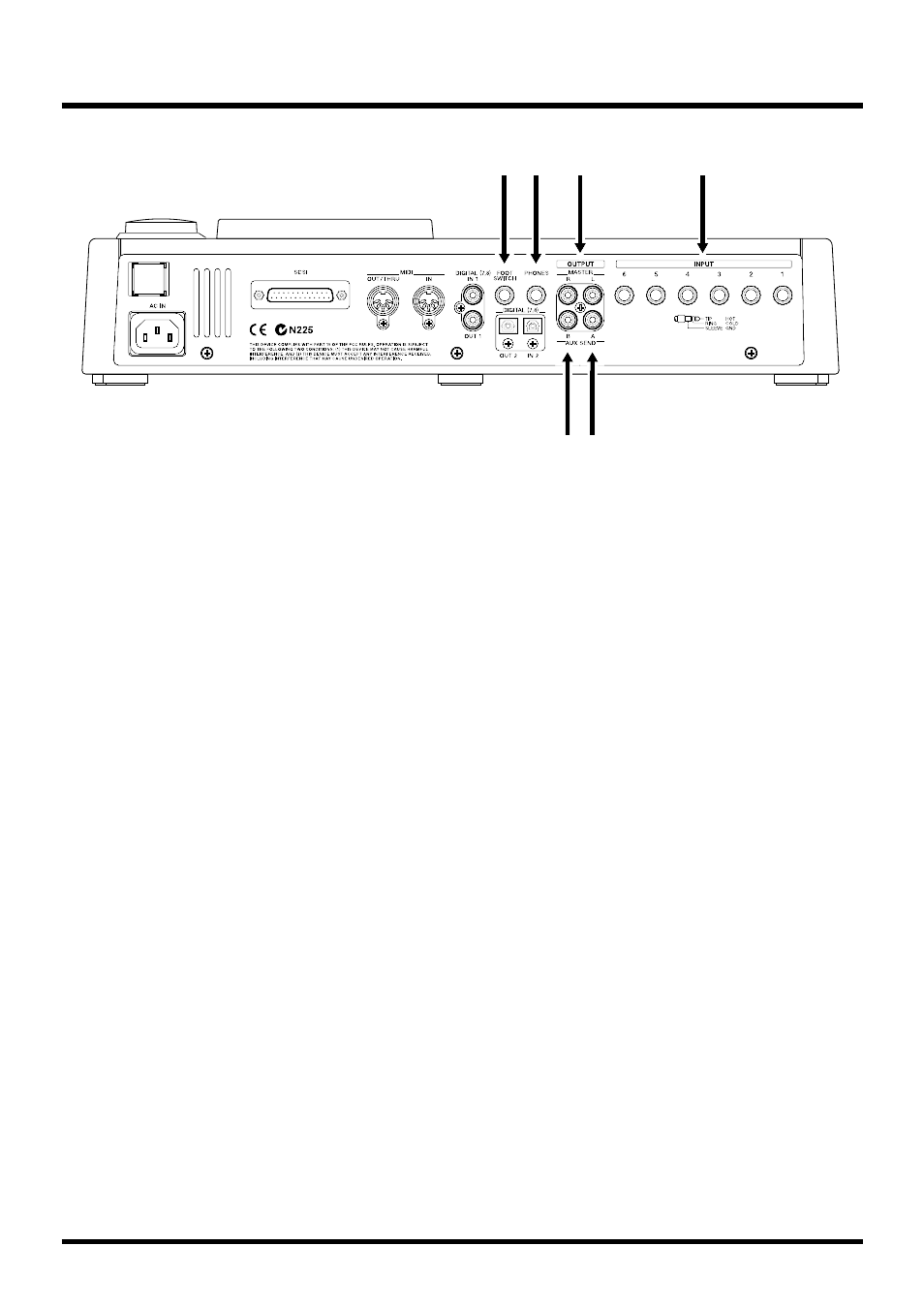

6 7 11 8
9 10
Preparations
20
6. FOOT SWITCH Jack
An optional foot switch (such as the DP-2 or the BOSS
FS-5U) can be connected here when you want to con-
trol recorder operations, mark point settings, and
punch in/out operations, and so on with a foot switch.
With the factory settings, a foot switch is set to start
and stop the recorder.
7. PHONES Jack
An optional set of headphones can be connected here.
The PHONES jack outputs the same sound as the
MONITOR jack.
8. MASTER Jacks (L, R)
9. AUX SEND Jack A
10. AUX SEND Jack B
These are output jacks for analog audio signals (RCA
phono type).
With the factory settings, all signals are output from
the MASTER OUT jacks, and there is no output from
the AUX (A and B) SEND jacks. The output is deter-
mined by the block settings of the mixer’s master sec-
tion and the settings of each channel.
11. INPUT Jacks (1–6)
These are input jacks for analog audio signals. These
are balanced phone jacks, the input sensitivity of each
jack is adjusted by the INPUT knobs on the top panel.
