When the mixer corresponds to recorded tracks (TRACK MIX)
In this mode the mixer will function as an 8-in/10-out mixer placed after the recorder section. The
mixer channels will correspond to recorded tracks.
Input:
The track output (1Ð8) of the recorder section will be in one-to-one correspondence with the chan-
nels (1Ð8) of the mixer section.
Equalizer:
The equalizer section will normally function as 2-band parametric equalizers with high (shelving
type) and low (shelving type) bands. These can be turned off if you do not wish to use them.
The V-XPANDED enhancement also allows the equalizers to be used as 3-band parametric equal-
izers. Refer to ÒUsing 3-band equalizer in INPUT MIX/TRACK MIXÓ (p.20).
Output:
The outputs of each channel are combined into a stereo signal by the MIX buss, and output from
the MASTER OUT jacks. The same signal will also be sent from the PHONES jack and the DIGI-
TAL OUT connector.
■ Switching the mixer mode
The current mixer mode is shown by the indicator located at the right of MIXER MODE [SELECT].
Use the following procedure to switch the mixer mode. The reason that this procedure is required
is to prevent you from accidentally selecting a mixer mode that radically changes the internal
structure of the mixer.
To switch from INPUT➝TRACK mode to INPUT MIX mode or TRACK MIX mode, hold down
[SHIFT] and press [SELECT]. If you once again hold down [SHIFT] and press [SELECT], you will
return to INPUT➝TRACK mode. INPUT MIX mode and TRACK MIX mode will alternate each
time the [SELECT] button is pressed.
■ Recording the current condition of the mixer (Scene)
Up to 8 sets of mixer settings can be stored for each song. A stored set of mixer settings is called a
Òscene,Ó and can be recalled at the touch of a button. For example if during mixdown you wish to
compare different mixing balances, you can store each different mixer setting as a scene.

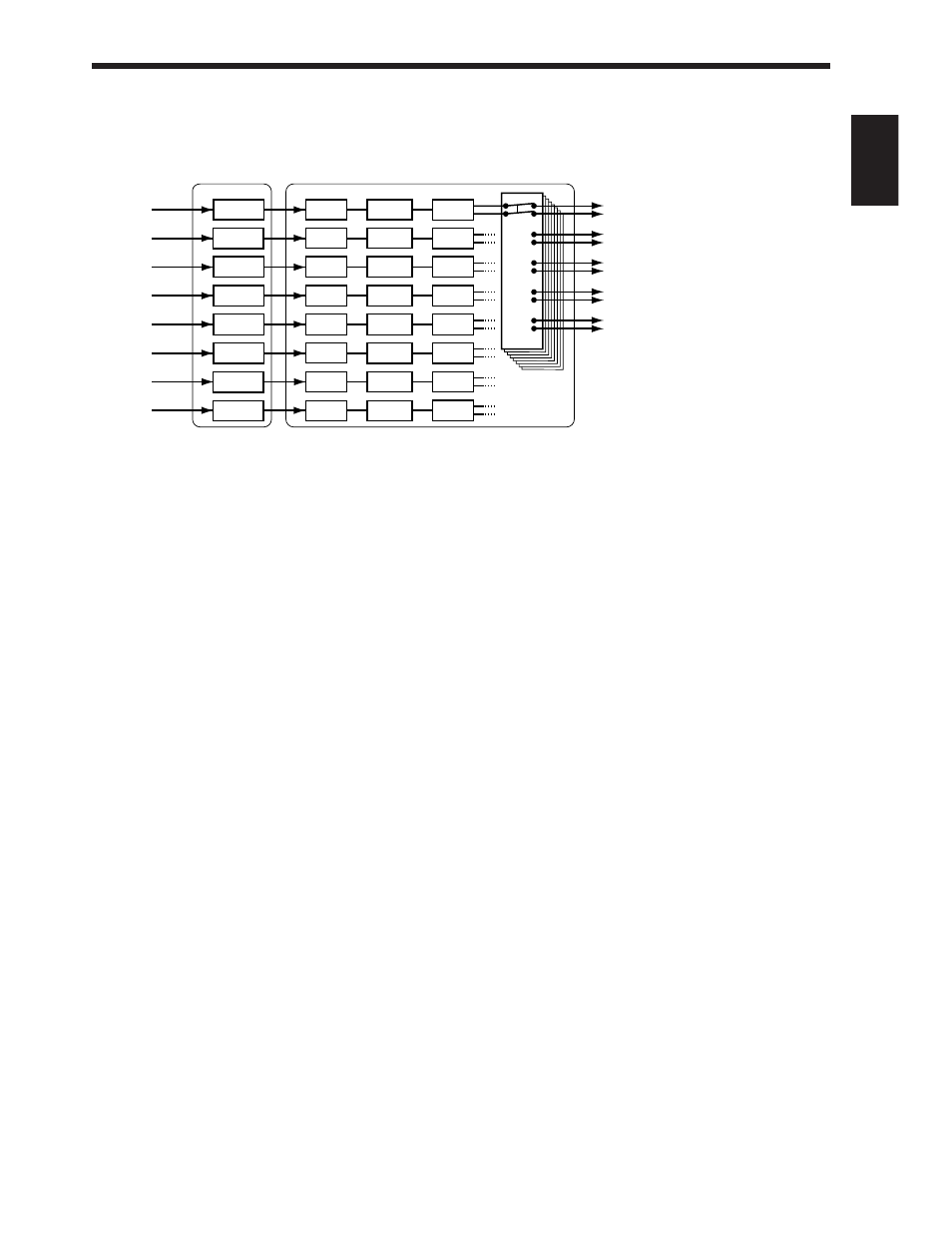

Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8
REC 1
REC 2
REC 3
REC 4
EQ 1
EQ 2
EQ 3
EQ 4
EQ 5
EQ 6
EQ 7
EQ 8
Fader 1
Fader 2
Fader 3
Fader 4
Fader 5
Fader 6
Fader 7
Fader 8
Pan 1
Pan 2
Pan 3
Pan 4
Pan 5
Pan 6
Pan 7
Pan 8
Recorder
REC 5
REC 6
REC 7
REC 8
Track Mix mode (Track channel 1–8)
Buss select
REC 1-2 buss (Recorder)
REC 3-4 buss (Recorder)
REC 5-6 buss (Recorder)
REC 7-8 buss (Recorder)
MIX buss (MASTER OUT L, R)
