LowQ (Low Q)
Specify the width of the band centered on the low range
equalizer center frequency in which the gain adjustment
will occur. As this setting is raised, the width of the band
affected will become narrower.
LoMidG (Low middle gain)
Specify the gain (amount of boost/cut) for the low middle
range equalizer.
LoMidF (Low middle frequency)
Specify the center frequency of the low middle range equal-
izer.
LoMidQ (Low middle Q)
Specify the width of the band centered on the low middle
range equalizer center frequency in which the gain adjust-
ment will occur. As this setting is raised, the width of the
band affected will become narrower.
HiMidG (High middle gain)
Specify the gain (amount of boost/cut) for the high middle
range equalizer.
HiMidF (High middle frequency)
Specify the center frequency of the high middle range
equalizer.
HiMidQ (High middle Q)
Specify the width of the band centered on the high middle
range equalizer center frequency in which the gain adjust-
ment will occur. As this setting is raised, the width of the
band affected will become narrower.
HiType (High type)
Select the type of high range equalizer.
Shlv: Shelving type
Peak: Peaking type
HiG (High gain)
Specify the gain (amount of boost/cut) for the high range
equalizer.
HiF (High frequency)
Specify the center frequency of the high range equalizer.
HiQ (High Q)
Specify the width of the band centered on the high range
equalizer center frequency in which the gain adjustment
will occur. As this setting is raised, the width of the band
affected will become narrower.
Level (Output level)
Adjust the overall volume level of the sound that has
passed through the equalizer.
● 10-Band Graphic Equalizer
This simulates a 10-band graphic equalizer. It can be used
either as two monaural units or as one stereo unit.
LNK (Link)
EQLink Off, On
EQLink (Equalizer link)
This is the link switch for channels A and B. When this is
turned off, the channels will function independently as two
monaural equalizers.
When this is turned on, both channels will be controlled
simultaneously by the settings of channel A.
EQA/EQB (Graphic equalizer channel A / channel B)
EQAch(EQBch) Off, On
InputG -60Ð12 dB
31.2Hz -12Ð12 dB
62.5Hz -12Ð12 dB
125Hz -12Ð12 dB
250Hz -12Ð12 dB
500Hz -12Ð12 dB
1kHz -12Ð12 dB
2kHz -12Ð12 dB
4kHz -12Ð12 dB
8kHz -12Ð12 dB
16kHz -12Ð12 dB
Level -60Ð12 dB
EQA/EQB (Equalizer channel A / channel B)
Turn the equalizer on/off. If this is turned off, the following
items will not be displayed.
InputG (Input gain)
Adjust the overall volume level of the sound before it pass-
es through the equalizer.
31.2Hz–16kHz (Gain)
Adjust the gain (amount of boost/cut) of the equalizer for
each frequency.
Level (Output level)
Adjust the volume level of the sound which as passed
through the equalizer.

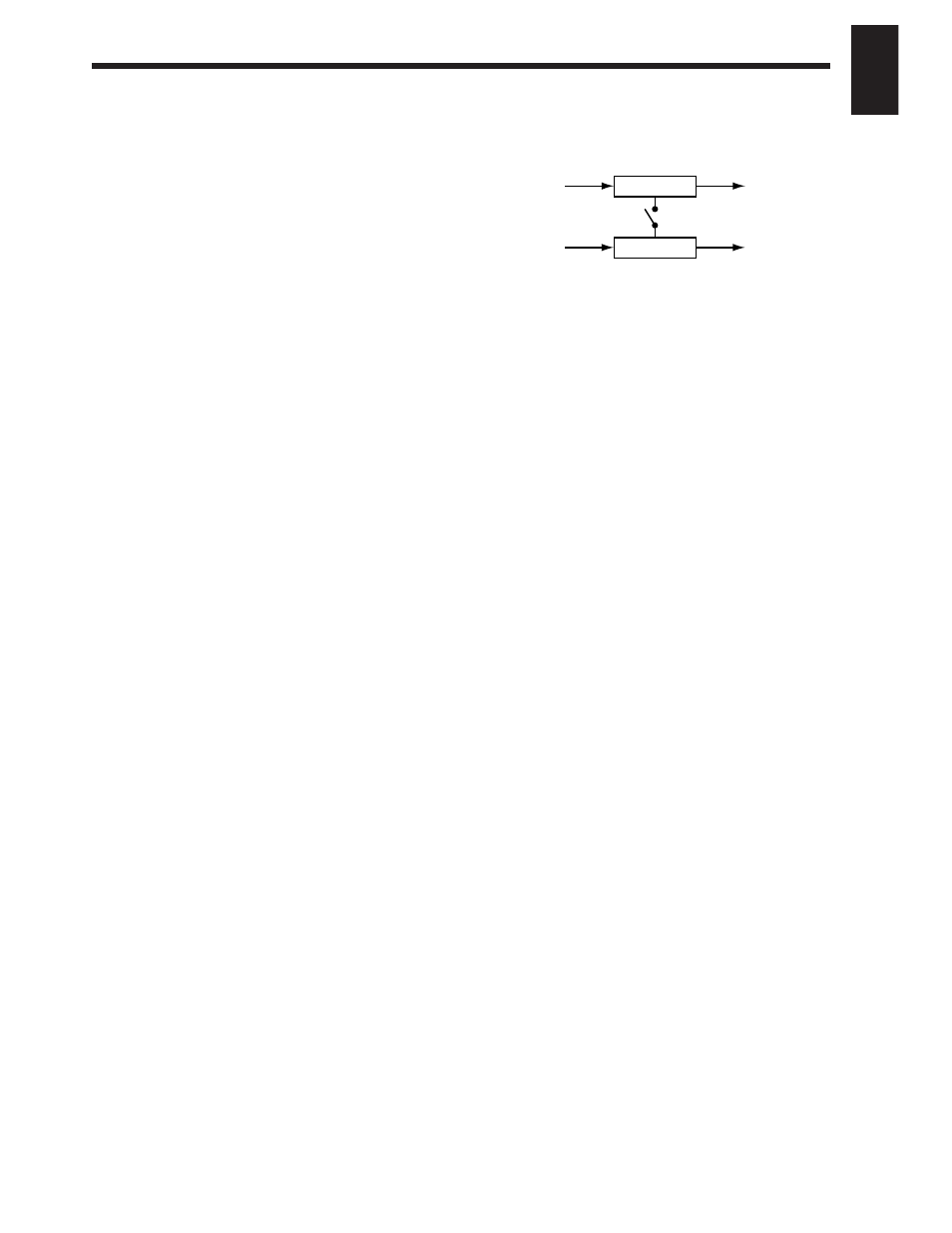

Equalizer
Equalizer
Input A
Input B
Output A
Output B
Link
