Effect related
When a VS8F-1 effect expansion board is installed, a single
VS-880 now allows you to use two stereo effects.
Please read the VS8F-1 ownerÕs manual together with this
explanation.
■ Newly added preset patches
One hundred preset patches have been added to the effect
patches. Refer to the included ÒPreset Patch List.Ó
Due to the increased number of preset patches, the patch
numbers have changed as follows.
Ver.1 V-XPANDED
Preset 001Ð100 Preset A00ÐA99
(newly added) Preset B00ÐB99
User 001Ð100 User U00ÐU99
■ Newly added algorithms
The following effect algorithms have been added.
Reverb 2 (p.23)
Space Chorus (p.24)
Lo-Fi Processor (p.25)
4-Band Parametric Equalizer (p.26)
10-Band Graphic Equalizer (p.27)
Hum Canceler (p.28)
Vocal Canceller (p.28)
Vocoder 2 (p.29)
Voice Transformer (p.30)
Mic Simulator (p.32)
● Reverb 2
This is a reverb that provides a gating function and a duck-
ing function. It can be used in either EFFECT-1 or EFFECT-
2. You can use two reverbs with different settings, or use it
in combination with a previous reverb.
REV (Reverb)
Reverb On, Off
Type Room1, Room2, Hall1, Hall2, Plate
Time 0.1Ð10.0 sec
PreDLY 0Ð200 msec
Density 0Ð100
HPF Thru, 20Ð2000 Hz
LPF 1.0Ð20.0 kHz, Thru
EFLevel 0Ð100
DiLevel 0Ð100
Gate Off, On
Mode Gate, Ducking
Thresh 0Ð100
Attack 1Ð100
Release 1Ð100
HoldTime 1Ð100
Reverb
Turn reverb on/off. When turned off, the following items
will not be displayed.
Type (Reverb Type)
Select the type of reverb.
Room1: Normal room reverb.
Room2: Room reverb with a softer tone than Room1.
Hall1: Normal hall reverb.
Hall2: Hall reverb with a softer tone than Hall1.
Plate: Plate reverb.
Time
Adjust the length (time) of the reverberation.
PreDLY (Pre delay)
Adjust the time until the reverb is output.
Density
Adjust the density of the reverb.
HPF (High pass filter)
Adjust the frequency at which the high pass filter will begin
to take effect. With a setting of Thru, the high pass filter will
not function.
LPF (Low pass filter)
Adjust the frequency at which the low pass filter will begin
to take effect. With a setting of Thru, the low pass filter will
not function.
EFLevel (Effect level)
Adjust the volume of the reverb.
DiLevel (Direct level)
Adjust the volume of the direct sound.
Gate
Turn the gate function on/off. When this is off, the follow-
ing items will not be displayed.
Mode (Gate mode)
Select the way in which the gate function will operate.
Gate: The gate will begin to open when the direct
signal level exceeds the threshold level, and
will begin to close when it falls below the
threshold level.
Ducking: The function will be the opposite of the Gate
setting. The gate will begin to close when the
direct signal level exceeds the threshold level,
and will begin to open when it falls below the
threshold level.
Thresh (Threshold)
Adjust the basic level at which opening and closing of the
gate will be controlled.

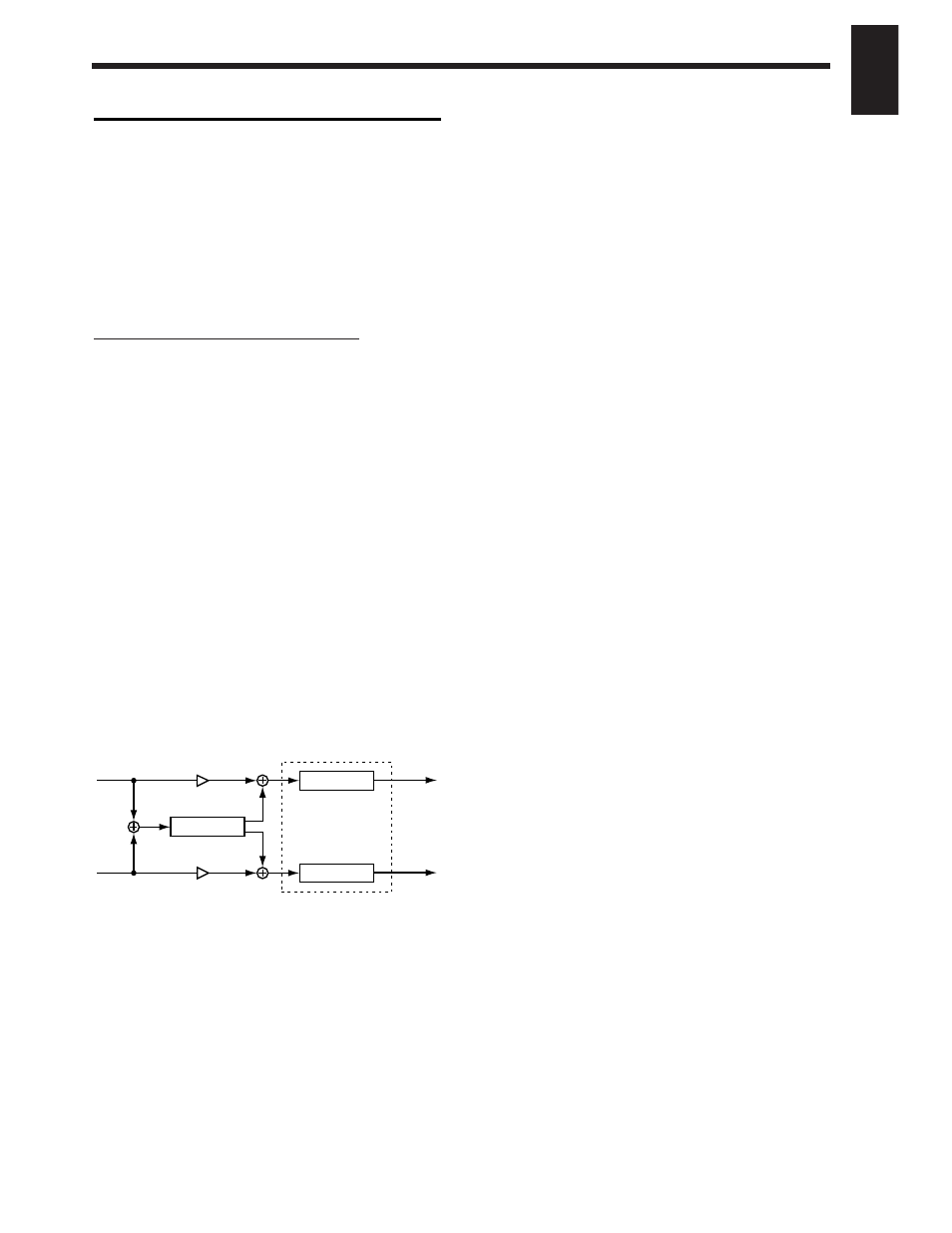

Reverb
Equalizer
Equalizer
Input L
Input R
Direct Level
Direct Level
Output L
Output R
