Page 114
If the display area is difficult
to read (Contrast)
Depending on the location where the VS-880 is placed, the
display may sometimes be difficult to read. In such cases,
use the following procedure to adjust the display contrast
(0Ð15).
Adjustment procedure 1
1.
Press [SYSTEM]. If a message with a question mark
such as “SYS System PRM?” does not appear, press
[SYSTEM] once again.
2.
Use PARAMETER
[
][
]
to get the “SYS
System PRM?” display, and press [YES].
3.
Use PARAMETER
[
][
]
to get the “SYS LCD
Contrast=” display and then use the TIME/VALUE dial
to adjust the contrast.
4.
When you finish making the setting, press [PLAY (DIS-
PLAY)] to return to Play condition.
Adjustment procedure 2
1.
Press [PLAY (DISPLAY)] once. Then hold down [PLAY
(DISPLAY)] and rotate the TIME/VALUE dial to adjust
the contrast. The display will show the current setting.
2.
When you finish making the setting, release [PLAY
(DISPLAY)].

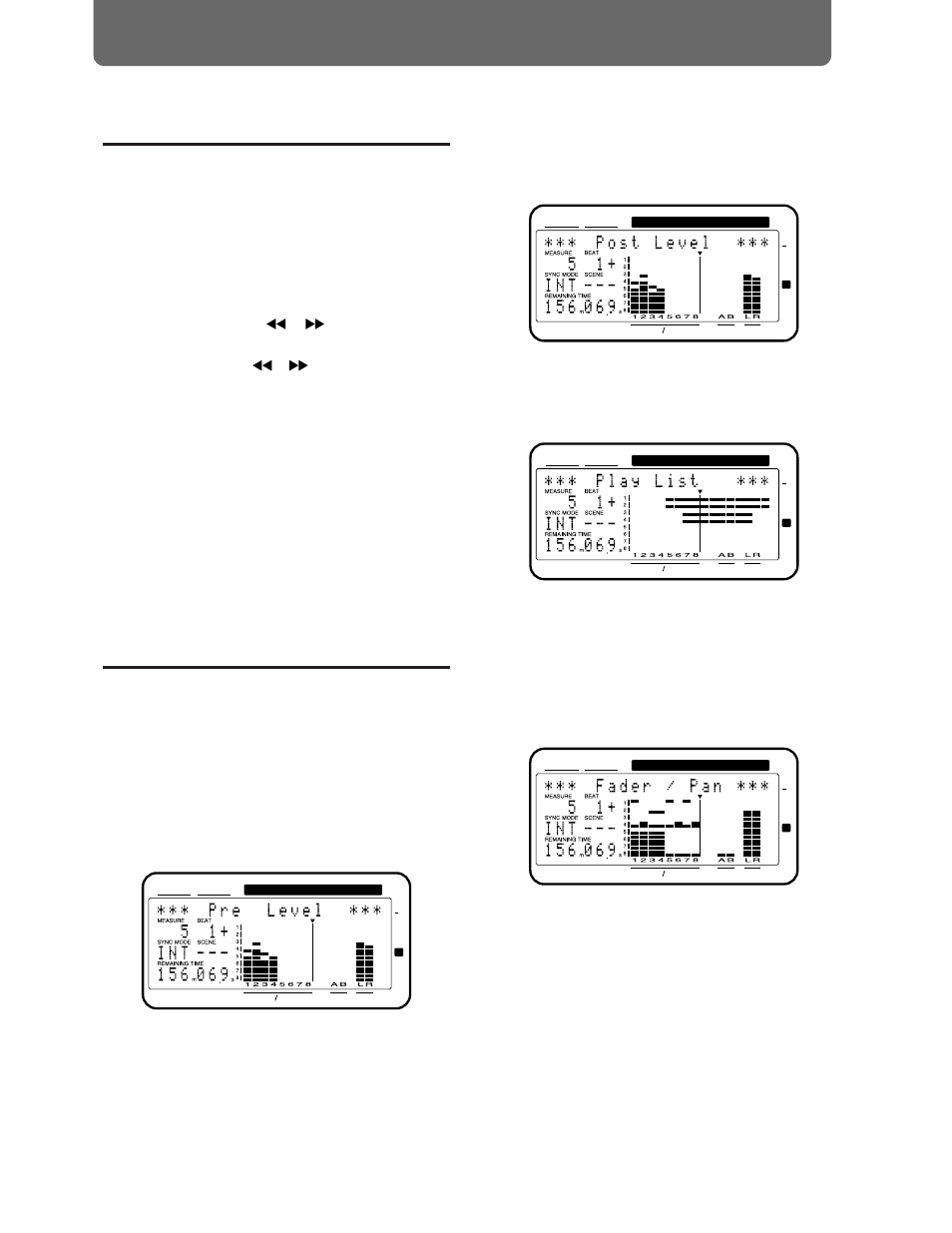

Switching the contents of
the display (Bar Display)
In Play condition, you can hold down [SHIFT] and press
[DISPLAY (PLAY)] to switch the contents of the bar display.
In Edit condition, the contents of the display will change
depending on the selected parameter or operation.
●
Pre Level
The volume of each channel before passing through the
channel faders will be displayed. The AUX and MASTER
fields indicate the respective volume levels of the signal
after passing through the AUX knob and the master
fader.
●
Post Level
The volume of each channel after passing through the
channel faders will be displayed. The AUX and MASTER
fields indicate the respective volume levels of the signal
after passing through the AUX knob and the master
fader.
●
Play List
The way in which sound is recorded in the various tracks
before and after the current time will be displayed.
●
Fader/Pan
The settings of the master fader and the PAN knob and
fader of each channel will be displayed. If the displayed
location of the PAN knobs or faders is different than the
actual location (as when the mixer mode has been
switched), the current location of the PAN knob or fader
will blink.
CONDITION MARKER#
MASTER
INPUT TRACK
AUX
TIME
TIME
48
24
4
0
dB
1
12
2
CONDITION MARKER#
MASTER
INPUT TRACK
AUX
TIME
TIME
48
24
4
0
dB
1
12
2
CONDITION MARKER#
MASTER
INPUT TRACK
AUX
TIME
TIME
48
24
4
0
dB
1
12
2
CONDITION MARKER#
MASTER
INPUT TRACK
AUX
TIME
TIME
48
24
4
0
dB
1
12
2
