Front and rear panels, Chapter 1 – Roland Vs-880 User Manual
Page 13

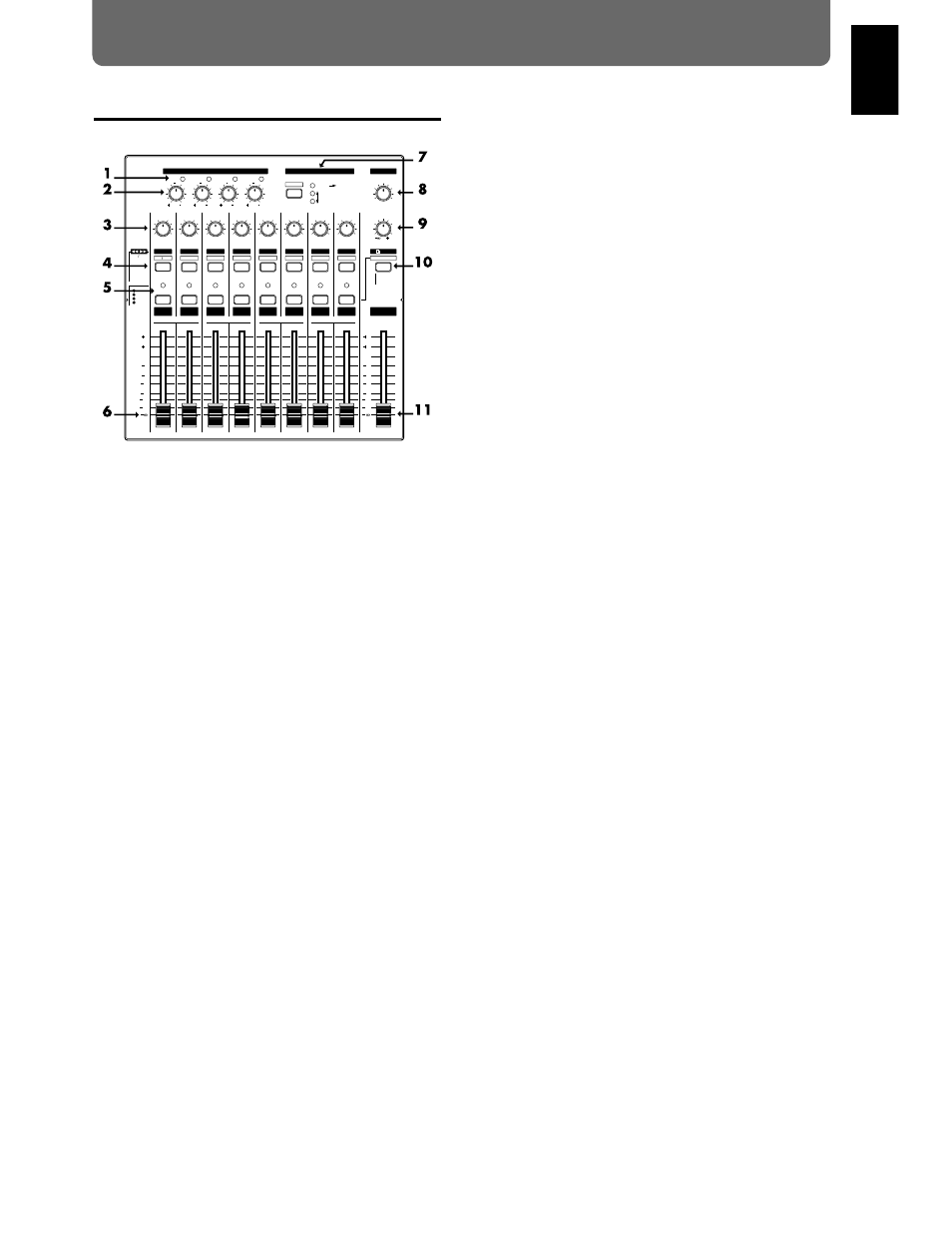

Mixer section
1.
PEAK indicators
These indicators allow you to avoid distortion of the sound
being input at the input jacks (1Ð4). The peak indicators will
light red when the signal reaches -6 dB before clipping
level. Adjust the input sensitivity so that the peak indicators
do not light.
2.
INPUT SENS (input sensitivity) knobs
These knobs adjust the sensitivity of the input jacks (1Ð4).
Rotate a knob fully right for mic level (-50 dBm), and fully
left for line level (+4 dBm).
3.
PAN knobs
These knobs adjust the pan (location in the stereo output) of
each channel.
4.
CH EDIT / SEL (channel edit/select) buttons
Use these buttons when you wish to make settings for a
mixer channel. The names of the parameter groups that can
be set for each channel are printed below CH EDIT. To
directly specify a particular group, you can hold down
[SHIFT] and press the button for that group name.
When editing a song, use these buttons to select tracks for
editing.
5.
STATUS buttons
These buttons switch the status of each channel. The current
status is shown by the button indicator.
SOURCE (orange):
The input source assigned to the
channel is being output.
REC (blinking red):
Recording is selected for the track
assigned to the channel.
PLAY (green):
The track assigned to the channel
will playback.
MUTE (dark):
The channel is muted (silent).
6.
Channel faders
Use these faders to adjust the volume level of each channel.
7.
SELECT button
This button switches the operating mode of the mixer. The
current mixer mode is shown by the indicators located at
the right of the button. Each time you press the button, you
will alternate between INPUT MIX mode and TRACK MIX
mode. To change from INPUT➝ TRACK mode to INPUT
MIX mode / TRACK MIX mode, hold down [SHIFT] and
press the button. Use the same operation to move in the
other direction.
INPUT➝TRACK mode
INPUT MIX mode
TRACK MIX mode
8.
PHONES knob
This knob adjusts the volume of the headphones.
9.
AUX SEND knob
This knob adjusts the output level of the AUX SEND jacks.
10.
EDIT/SOLO button
Press this button to make settings for the master section of
the mixer.
To use the Solo function to monitor only a specific channel,
hold [SHIFT] while you press the button.
11.
Master fader
Use this fader to adjust the overall output level.
PAN
C
TRACK MIX
STATUS
SEL
a
1
Input BUSS
Input BUSS
V.Track
INPUT
TRACK
INPUT MIX
SOLO
AUX SEND
PEAK
(dB)
REC
PLAY
MUTE
EQ
BUSS Send
Channel Link
AUX Send
SOURCE
Master Out
6
4
0
4
8
12
18
24
36
(dB)
6
4
0
4
8
12
18
24
36
BUSS
BUSS
BUSS
BUSS
AUX
V.Track
EQ Low
EQ Mid
EQ Hi
Aux Send
SELECT
EFFECT - 1
EFFECT - 2
10
PAN
C
STATUS
SEL
PAN
C
STATUS
SEL
b
AUX
PAN
C
STATUS
SEL
PAN
C
STATUS
SEL
c
AUX
PAN
C
STATUS
SEL
PAN
C
STATUS
SEL
d
AUX
PAN
C
STATUS
SEL
AUX SEND
2
PEAK
10
3
PEAK
10
4
0
PEAK
10
MASTER
CH EDIT
CH EDIT
EDIT
INPUT SENS
PHONES
MIXER MODE
1
2
CH EDIT
CH EDIT
3
4
CH EDIT
CH EDIT
5
6
CH EDIT
CH EDIT
7
8
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
4
50 dBm
4
50 dBm
4
50 dBm
4
50 dBm
0
10
6 dB
EFFECT
- 2
- 1
EFFECT
- 2
- 1
Front and rear panels
13
Chapter 1
