x Clearing Misfeeds

181

EEEE

Set the drum unit and close the
front door.

Note

❒ For setting the drum unit, see

”

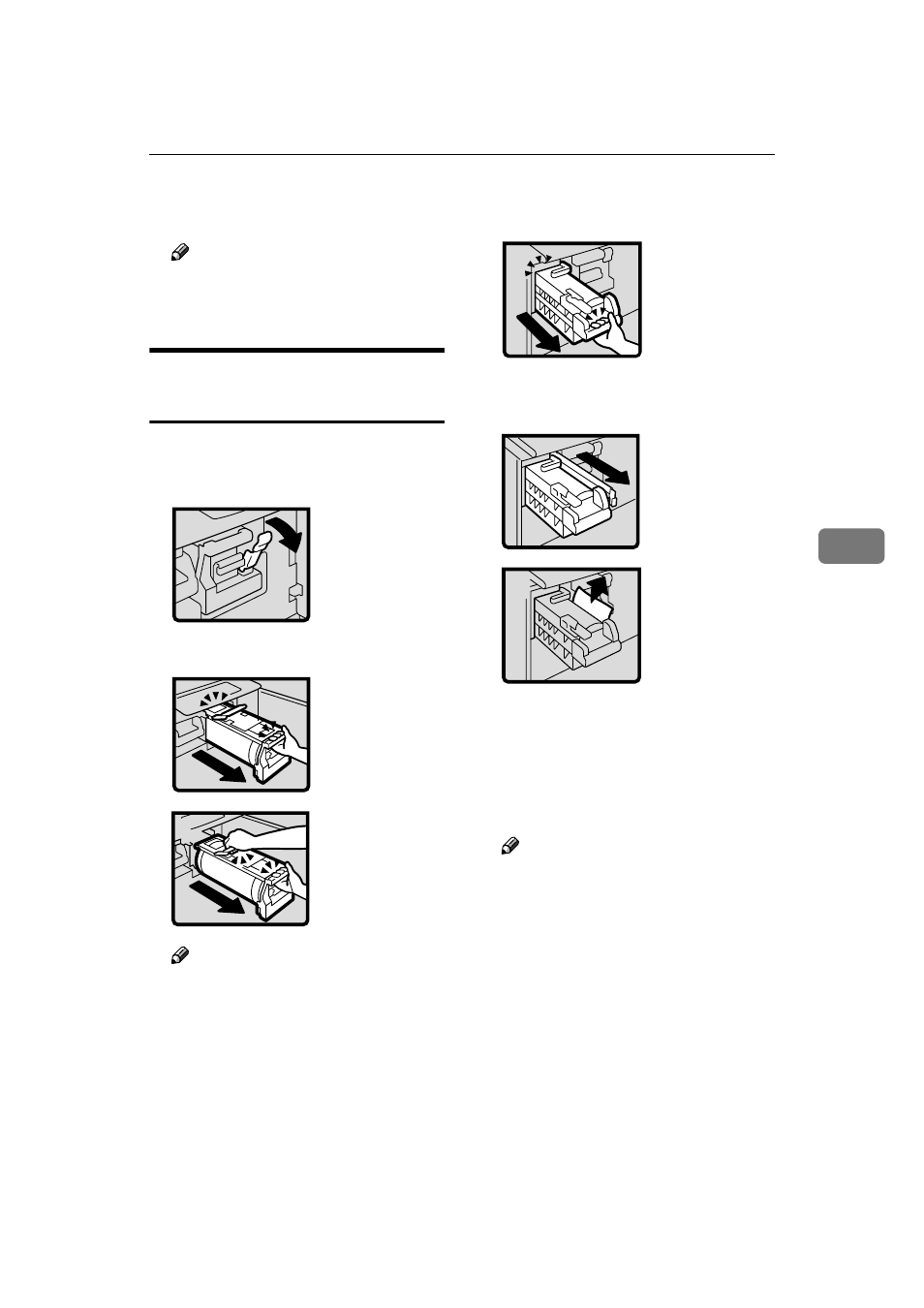

x + B + E” Master Misfeeds

in the Master Eject Section

AAAA

Open the front door.

BBBB

Lower drum unit lock lever (B1).

CCCC

Take out the drum.

Note

❒ For taking out the drum unit,

see p.132 “Changing the Color
Drum Unit”.

DDDD

Grasp handle (E1) and pull out
the master eject unit until it stops.

EEEE

Pull out lever (E3) and remove the
misfed master.

FFFF

Return lever (E3) and the master
eject unit to their original posi-
tions.

GGGG

Set the drum unit and close the
front door.

Note

❒ For setting the drum unit, see

p.132 “Changing the Color
Drum Unit”.

B 1

B 2

B 3

E 1
