Ricoh JP8000 User Manual
Page 381
Color Printing Using the Optional Color Drum
133
2
CCCC

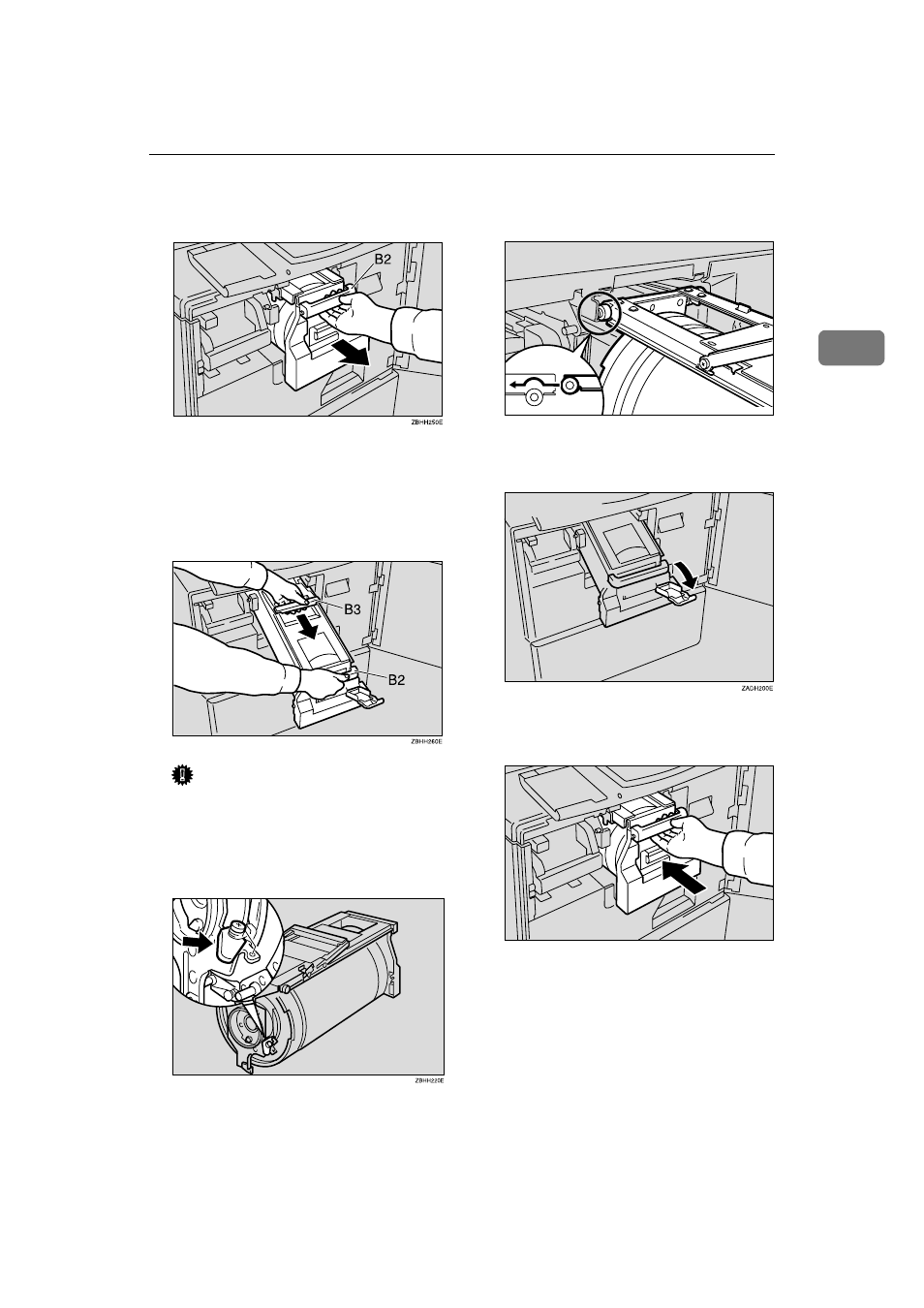

Pull the drum unit handle out
slowly (B2).
DDDD
Lift the upper drum stay (B3) a lit-
tle to unlock the drum unit, and
then pull out the drum unit while
holding the drum unit handle
(B2) and the upper drum stay (B3).
❒ Be careful not to let the drum
unit fall.
EEEE
Make sure the optional color
drum lock is securely set.
FFFF
Insert the color drum unit along
the guide rail.
GGGG
Lower the drum unit lock lever
(B1) of the inserted drum.
HHHH
Slide in the drum unit until it
locks in position.
TPEH290E
TPEH091E
