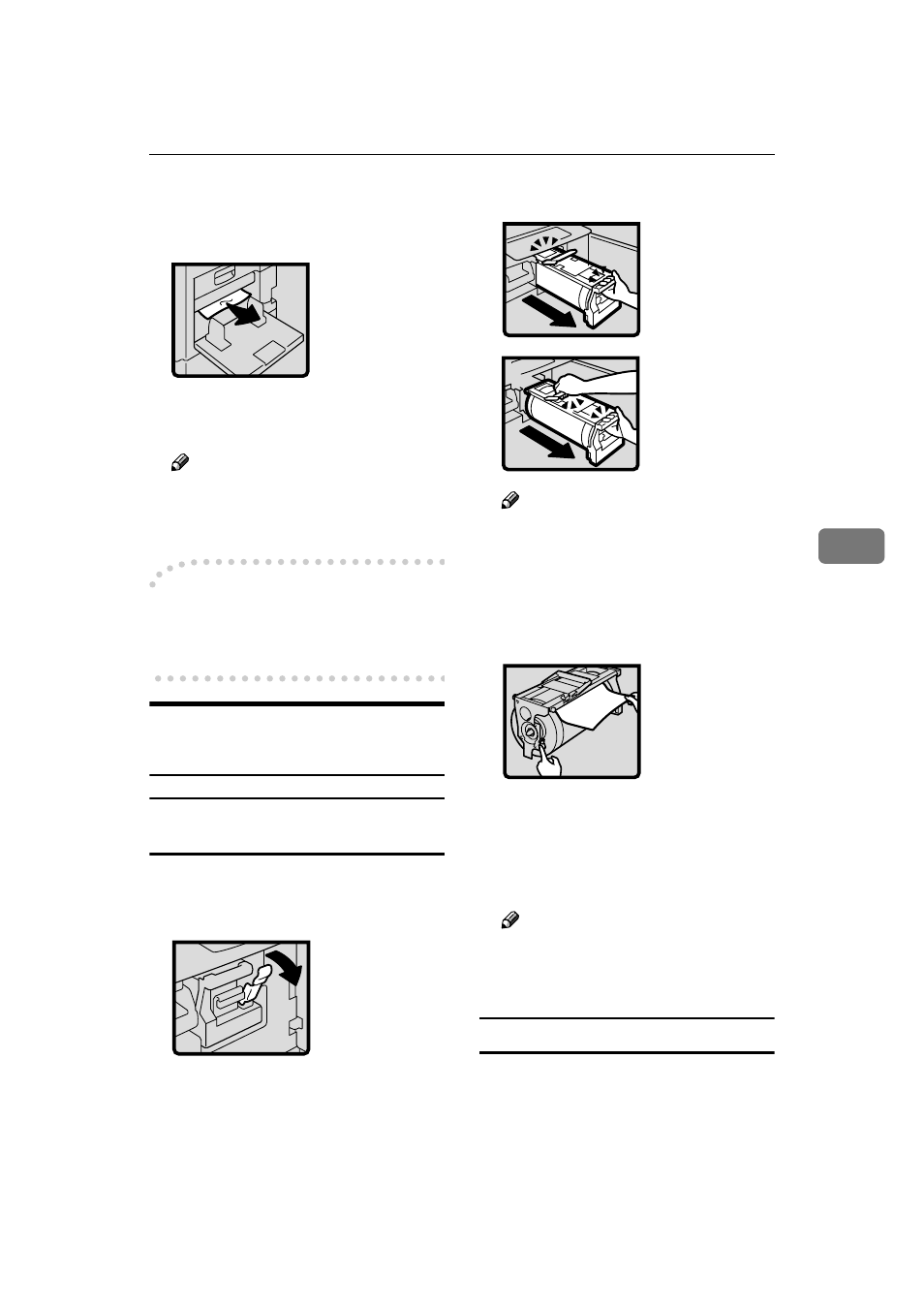

x Clearing Misfeeds
177
5
EEEE
If you cannot remove the misfed
paper, remove it from the paper
feed tray.
FFFF
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, see
p.132 “Changing the Color
Drum Unit”.
- - - -To prevent paper misfeeds:
See p.175 “”
x + A” Paper Misfeeds
in the Paper Feed Section”.
”
x x x x + B” Paper or Master
Wrapped Around the Drum
When the master is wrapped around the
drum
AAAA
Open the front door.
BBBB
Lower drum unit lock lever (B1).
CCCC
Take out the drum.
Note
❒ For taking out the drum unit,
see p.132 “Changing the Color
Drum Unit”.
DDDD
While pressing the drum lock,
grasp the edge of the master (the
white area) and peel it off.
EEEE
Return the drum lock to its origi-
nal position.
FFFF
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, see
p.132 “Changing the Color
Drum Unit”.
When paper is wrapped around the drum
AAAA
Open the front cover.
B 1
B 2
B 2
B 3
