x Clearing Misfeeds
171
5
E

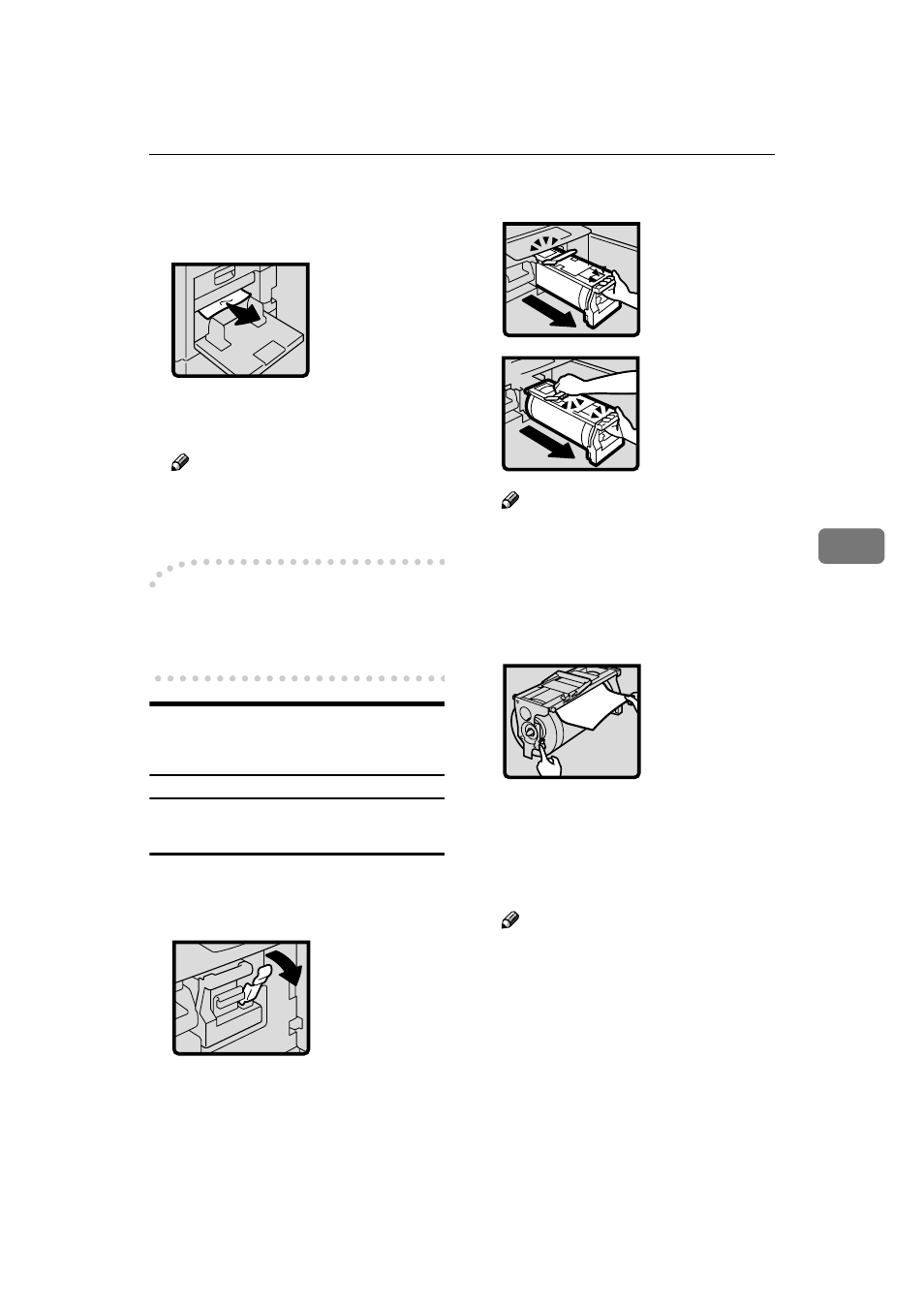

If you cannot remove the misfed
paper, remove paper from the pa-
per feed tray.
F
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”
- - - -To prevent paper misfeeds:
⇒ P.169 “” x + A” Paper Misfeeds in
the Paper Feed Section”.
”
x x x x + B” Paper or Master
Wrapped around the Drum
When the master is wrapped around the
drum
A
Open the front door.
B
Lower drum unit lock lever (B1).
C
Take out the drum.
Note
❒ For taking out the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”.
D
While pressing the drum lock,
grasp the edge of the master (the
white area) and peel it off.
E
Return the drum lock to its origi-
nal position.
F
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”
B 1
B 2
B 2
B 3
