Machine exterior – Ricoh JP8000 User Manual
Page 249
1

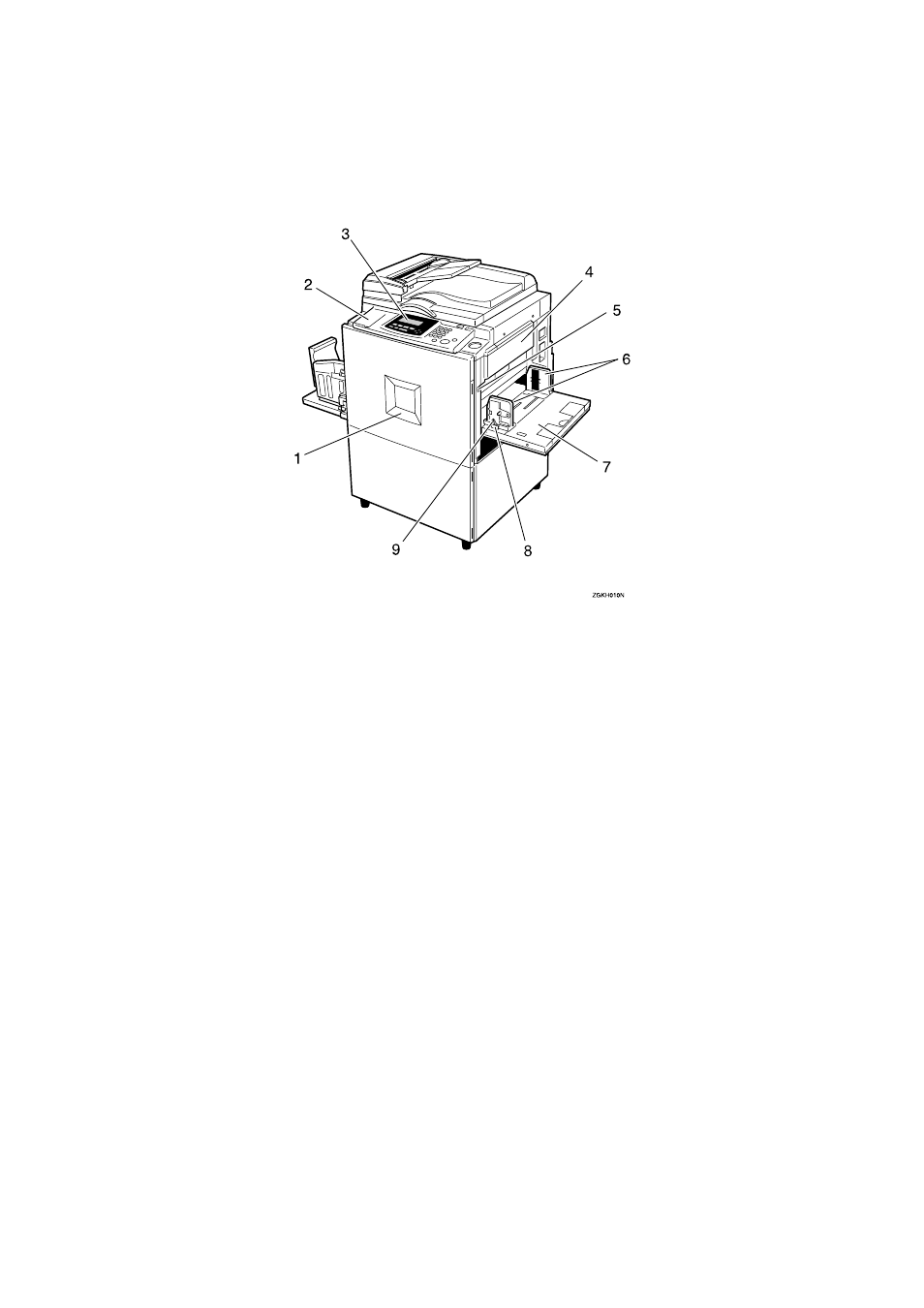

Open to access the inside of the machine.
2.
Flip up cover
Flip up to access the keys underneath.
See p.5 “Operation Panel”.
4.
Open this unit when installing the mas-
ter.
Press to lower the paper feed tray.
7.
Paper feed tray
Use to move the side plates.
9.
