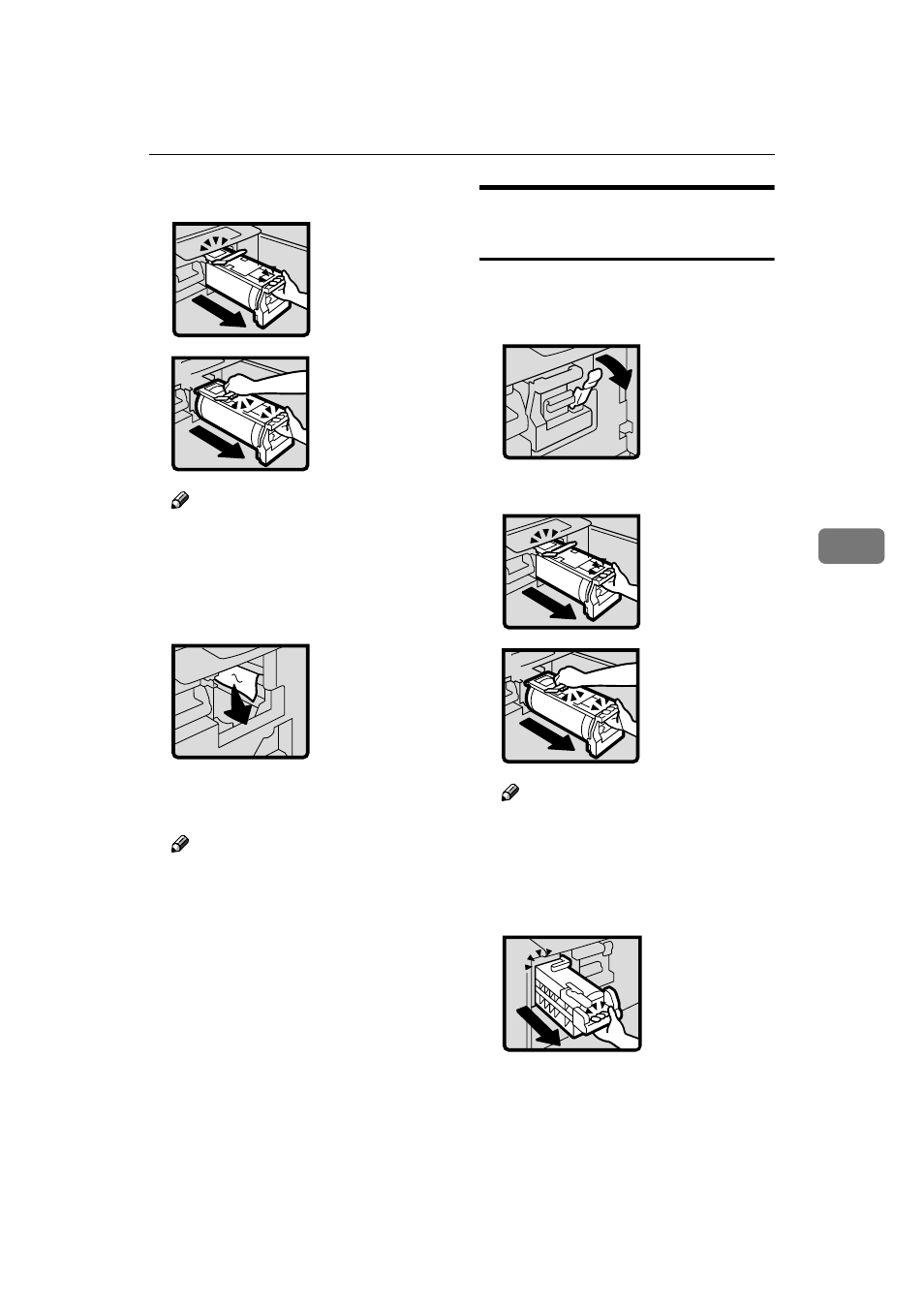

x Clearing Misfeeds
175
5
C
Take out the drum.
Note
❒ For taking out the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”.
D
Pull out the misfed master from
inside.
E
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”
”
x x x x + B + E” Master Misfeed in
the Master Eject Section
A
Open the front door.
B
Lower drum unit lock lever B1.
C
Take out the drum.
Note
❒ For taking out the drum unit, ⇒
P.128 “Changing the Color Drum
Unit”.
D
Grasp handle (E1) and pull out
the master eject unit until it stops.
B 2
B 2
B 3
B 1
B 2
B 2
B 3
E 1
