Guide to the Printer
Type 1 Printer
Type 1 Printer: Exterior
Note
❒ Please refer to the inside of the front cover of this manual to confirm which
printer (Type 1 Printer or Type 2 Printer) you have.
1. Bypass tray
Use to print onto thick paper, OHP trans-
parencies, adhesive labels, custom size
paper, and envelopes as well as plain pa-
per. When printing on custom paper size,
printer driver's settings are required.
Up to 100 sheets of plain paper (80 g/m
2 ,
20 lb) can be loaded.
⇒
P.65 “Paper and Other Media Supported
by Your Printer”
⇒
P.81 “Type 1 Printer: Loading Paper in
the Bypass Tray”
2. Bypass Tray Extender
Pull out this extender to load paper into
the bypass tray when its length is longer
than A4
L or 8 1 /
2
” x 11” L.
3. Operation Panel
Contains keys for printer operation and a
panel display that shows the printer sta-
tus.
4. Power Switch
Use this switch to turn the printer power
on and off.
11
12
1
2
3 4 5
6
7
8
9
10 13
14

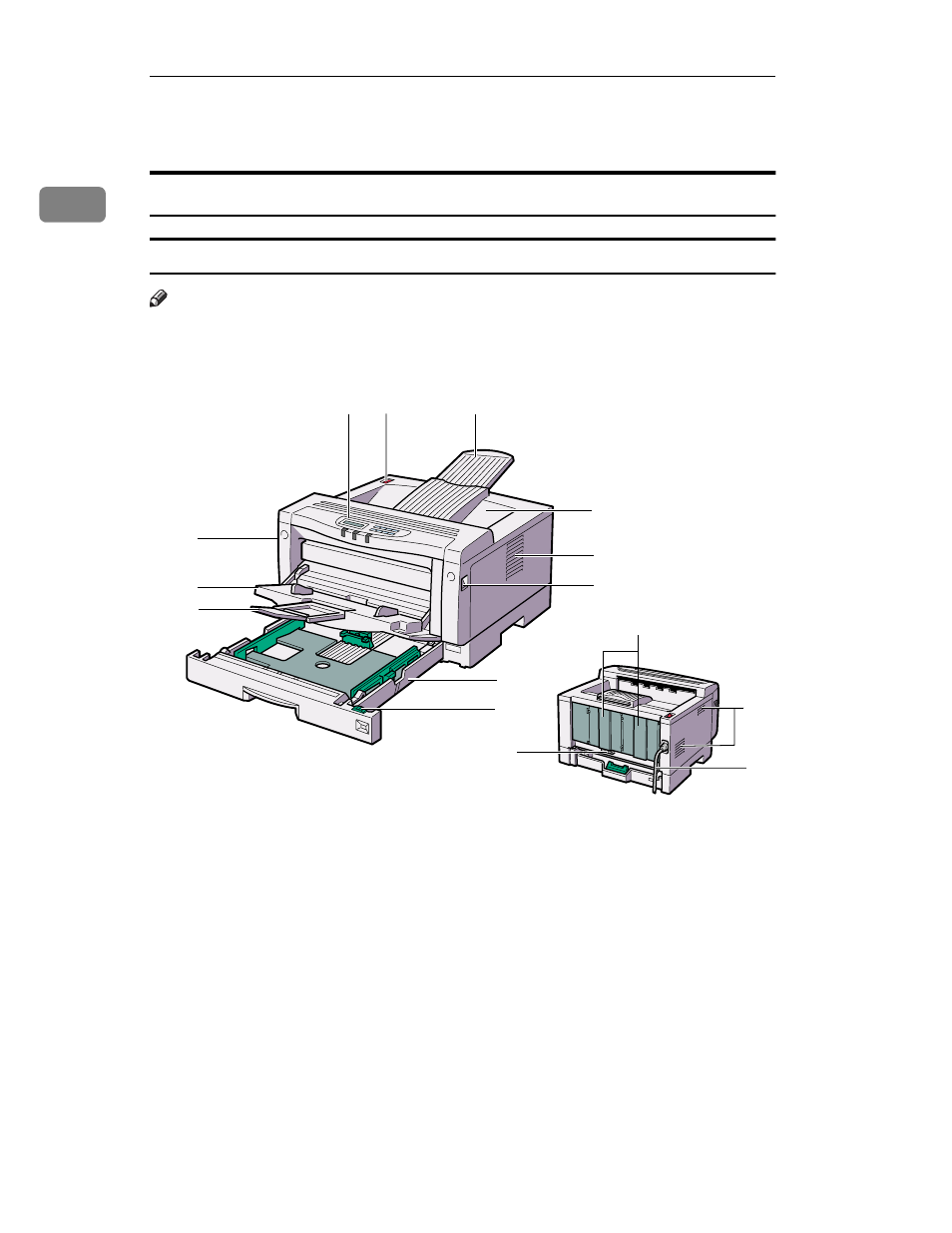

TS3H030E
