Ricoh AP1400/AP2000 User Manual
Page 207
Replacing Parts
8
2

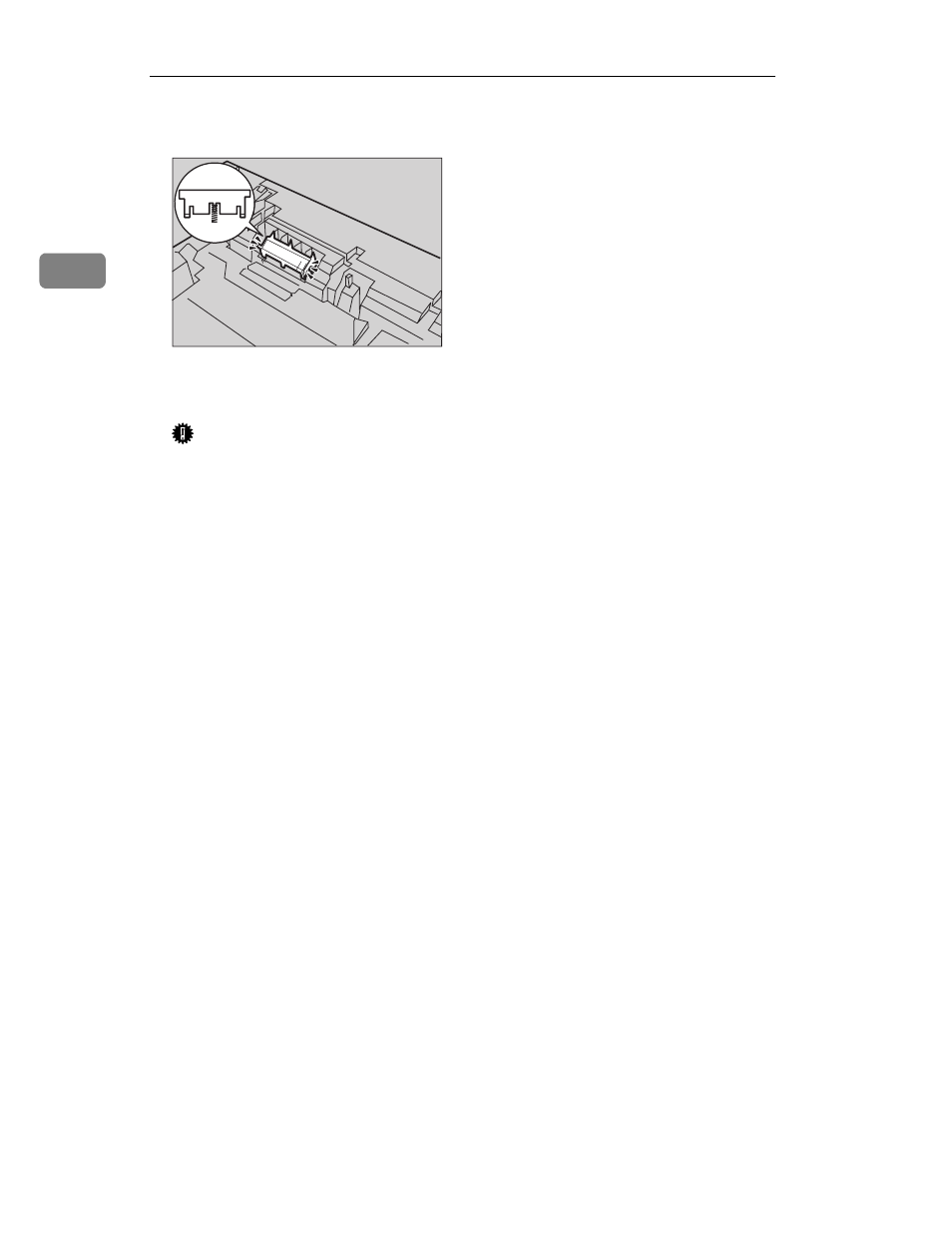

the holes of the paper tray as
shown in the illustration.
F
Push the friction pad until it locks
securely.
Important
❒ To be sure the friction pad is set
correctly, gently push it a few
times. If the friction pad re-
bounds with the force of the
spring, the pad has been set cor-
rectly.
G
Leave the paper tray pulled out
and go to P.9 “Replacing the Paper
Feed Roller”.
TS4M121E
