2-12

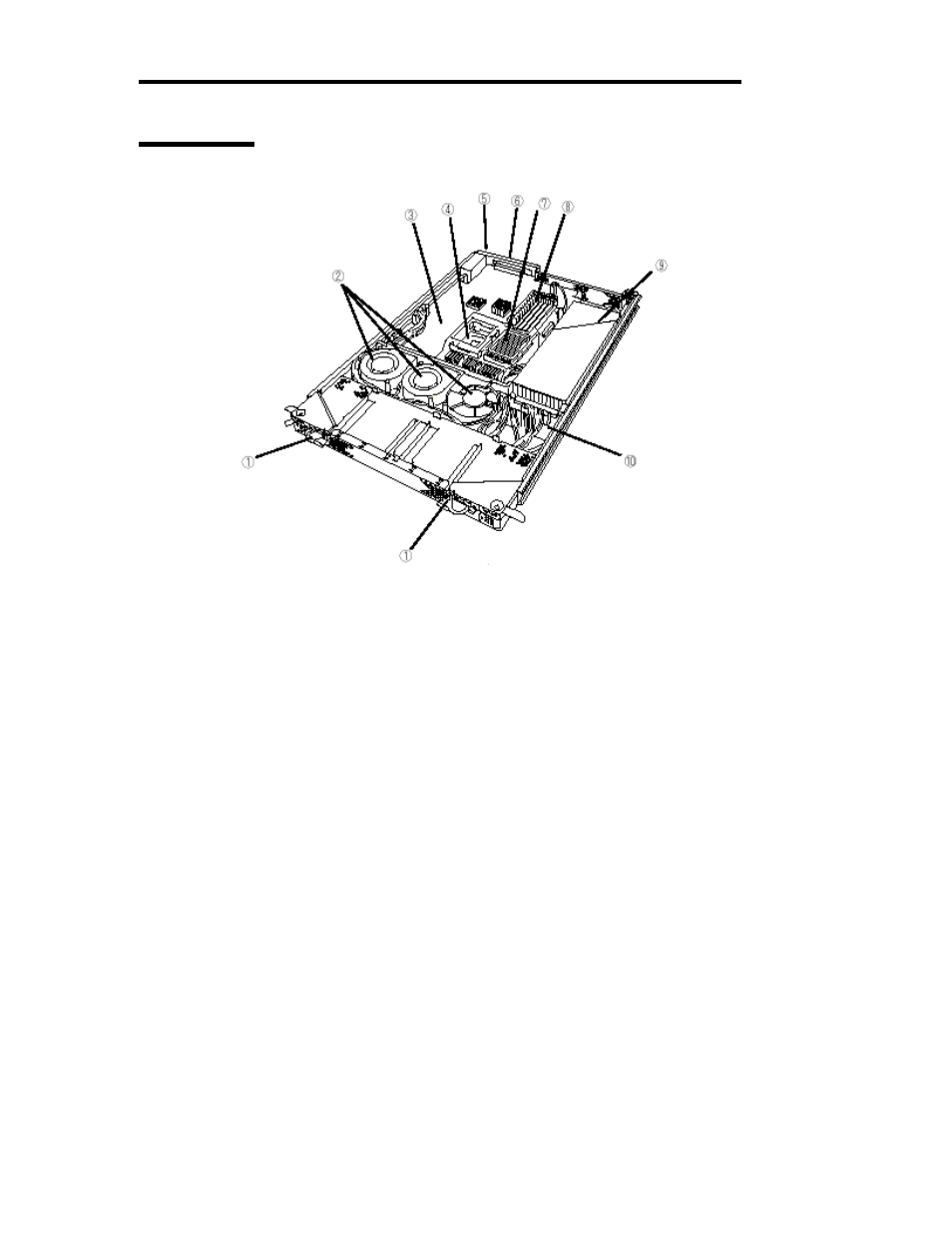

CPU Module

Group 1 and group 2 have the same configuration.

1

Module handle

2

Cooling fan

3

CPU module board

4

CPU socket #2 (additional)

5

AC inlet (in the back)

6

Backpanel connector (in the back)

7

CPU socket #1 (standard)

8

DIMM

9

Power unit

10

Power backboard
