5-19
Device name Device ID
SCSI enclosure 2
SCSI slot 1 on SCSI enclosure 2
SCSI slot 2 on SCSI enclosure 2
SCSI slot 3 on SCSI enclosure 2
Electronics 1 on SCSI enclosure 2
Power supply unit on SCSI enclosure 2 42
42/1
42/2
42/3
42/120
42/100

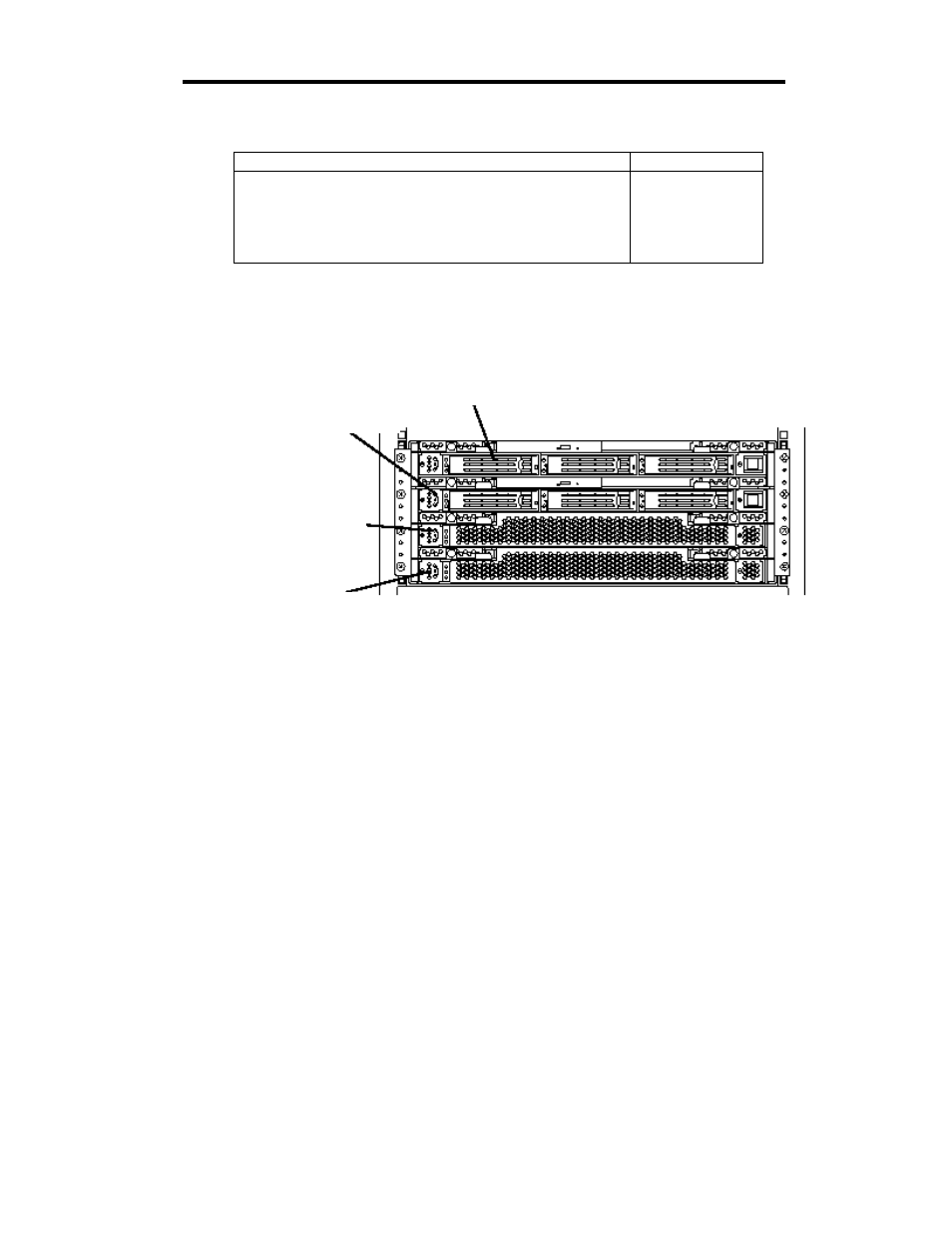

The figure below shows the actual locations of the device names displayed on the NEC ESMPRO
screen. In the case of the tower model, modules are mounted vertically instead of horizontally.
PCI module1
SCSI enclosure1 (SCSI 1 –
SCSI 3 from left to right)
PCI module2
SCSI enclosure2 (SCSI 1 –
SCSI 3 from left to right)
CPU module1
CPU module3
