12 Cluster Platform 4500/3 User’s Guide • July 2001

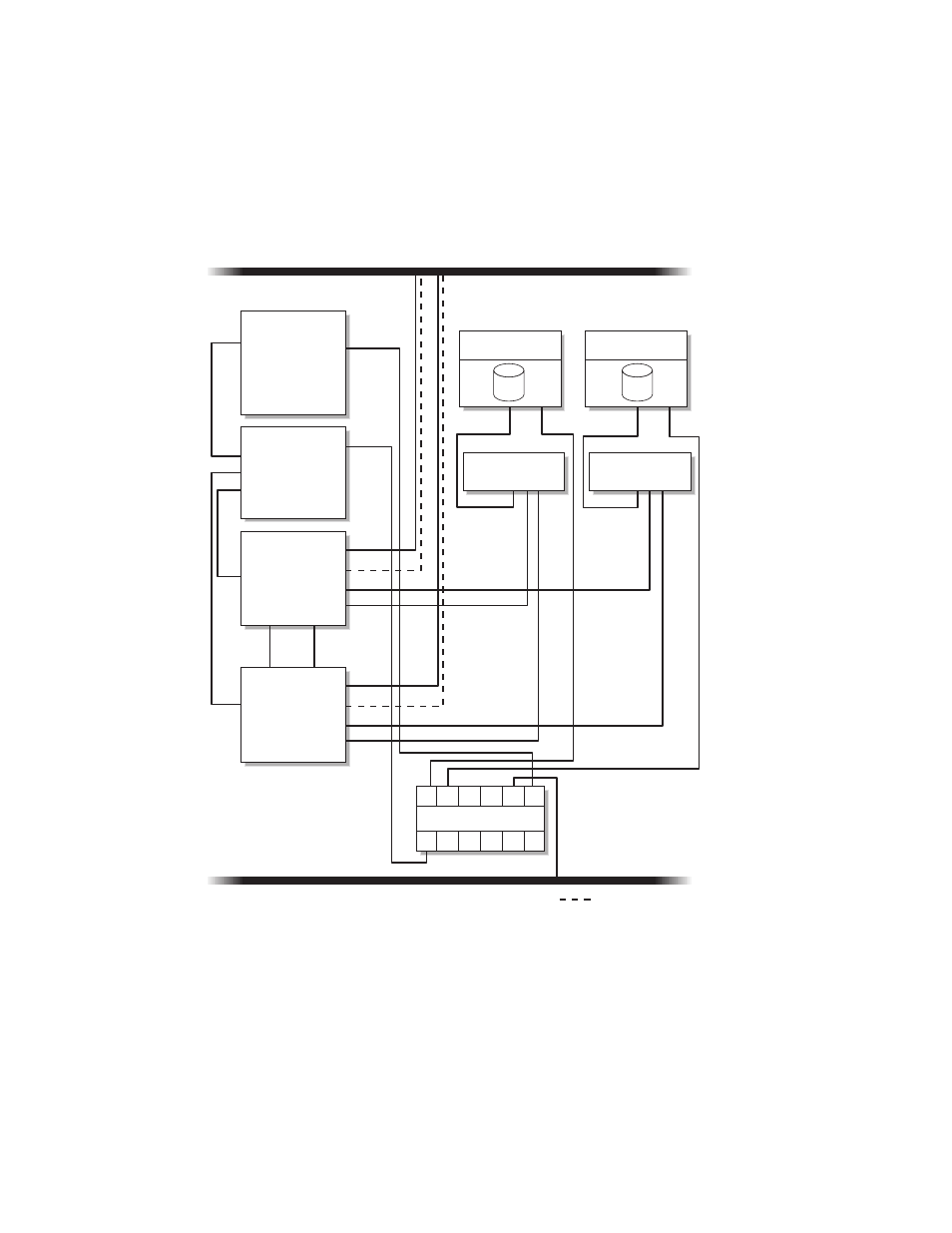

FIGURE 2-3 Cluster Platform Interconnections and NAFO
Management
Server
8:0:20:c2:1b:3c
129.153.47.38
1
2
3
10BT
0 1
sc3sconf1-n1
sc3sconf1-n0
A
A
8:0:20:d1:e1:4
8:0:20:d1:e6:f6
129.153.47.82
129.153.47.81
hme0
hme1
hme1
c1
c1
c3
c3
node 1
node 2
Cluster
NAFO
hme0
qfe4 qfe0
T3 No. 1 data T3 No. 2 mirror
sc3sconf1-T3 2
Ser. A eri0
sc3sconfl1-ms
sc3sconf1-T3 1
Cluster
Production Network
Administration Network
1 2 3 4 5 6
7 8 9 10 11 12
Ethernet hub
0 1 2 3 4 5 6 0 1 2 3 4 5 6
FC-AL hub 1 FC-AL hub 0
129.153.47.62
0:50:bd:bb:a:4:0
Concentrator
sc3sconf1-tc
Terminal
