Sun Microsystems 220R User Manual
Page 173

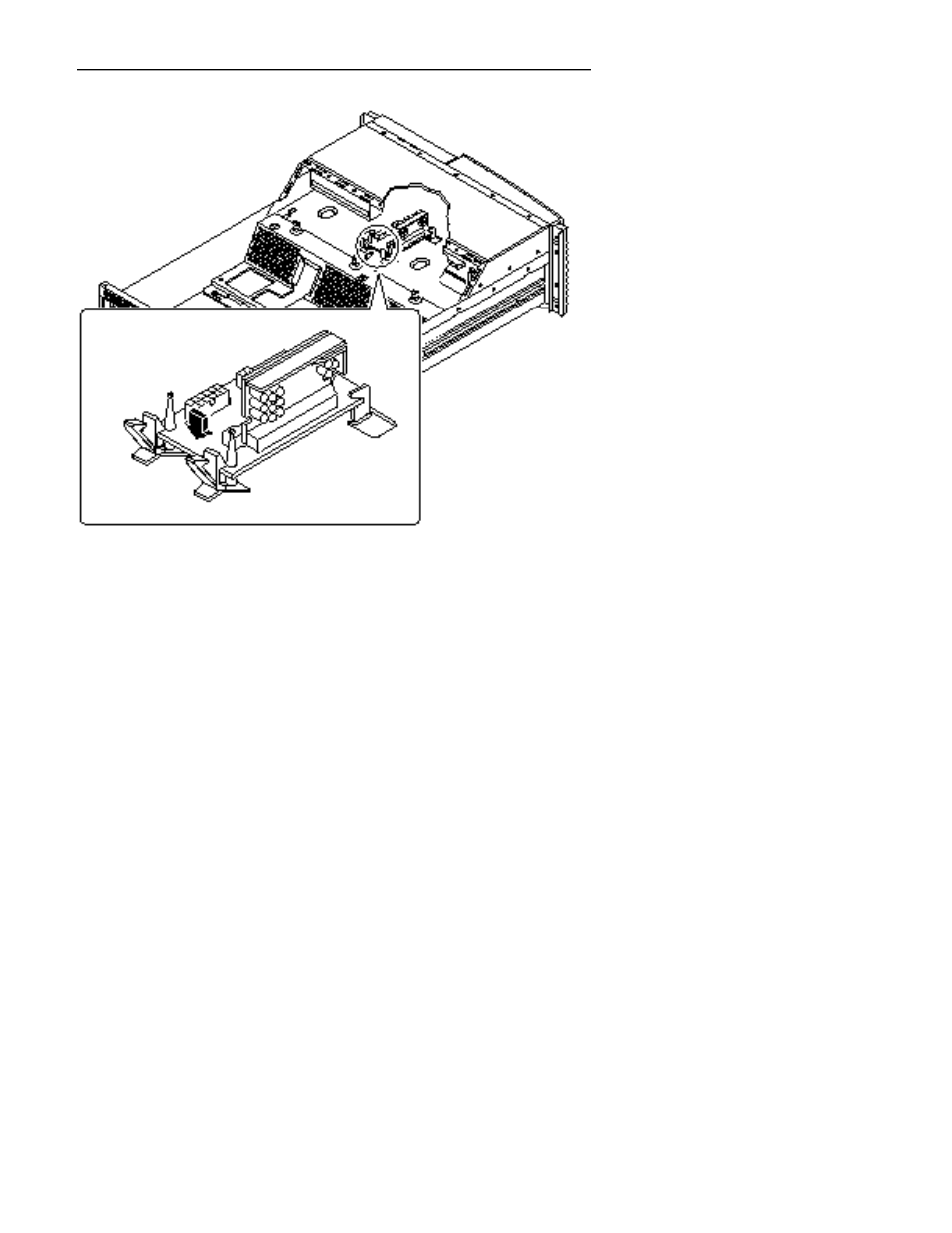

5. Connect the CPU core voltage power cable to connector J0103 on the DC-to-DC
converter board.
The connector is keyed so that it installs in only one way.
6. Connect the CPU core voltage power sense cable to connector J0102 on the
DC-to-DC converter board.
The connector is keyed so that it installs in only one way.
Removing and Replacing Miscellaneous Assemblies
173
