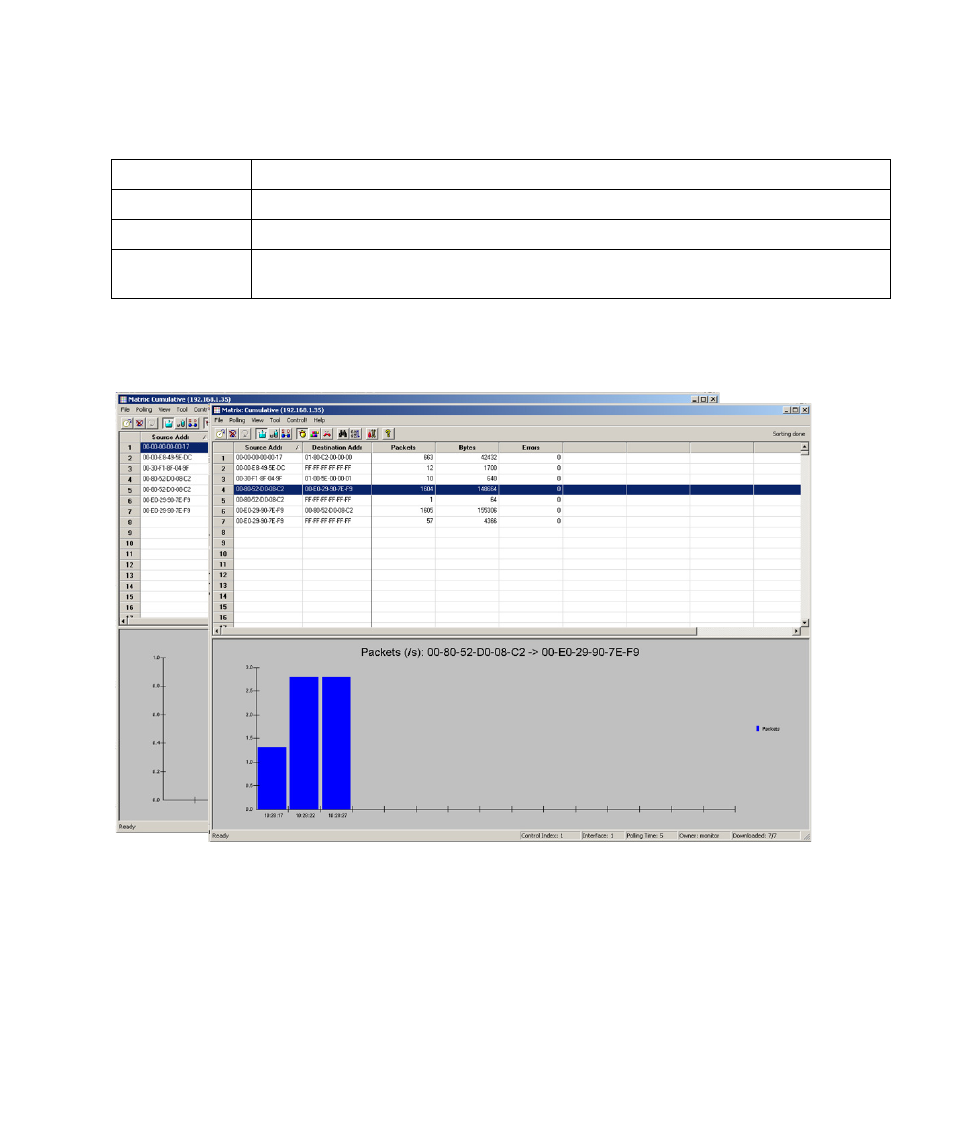

To view the matrix data collected for a specific interface, highlight it in the control table and press the View button.
When you open the Matrix table, the RMON probe starts monitoring the interface. The number of entries
downloaded is listed in the status bar at the bottom of the table.
By default, the entries are sorted according to the source address, cumulative values are listed in the numeric table
at the top of the screen, and packets/second are displayed in the graph at the bottom of the screen. Since the graph
displays rate, nothing will be displayed for the highlighted entry if no activity was seen during the last polling
interval. The configuration and display options are listed below.
Last Delete Time The last time data was deleted from this table due to lack of space.
Status Possible states include “under creation,” “valid,” and “invalid.”
Refresh Time for
Control Table The refresh interval for this control table. Range: 5-600 seconds
Table 9-16 Matrix Control Table
Field Description
