Vig390s Motherboard Manual V1.0
65

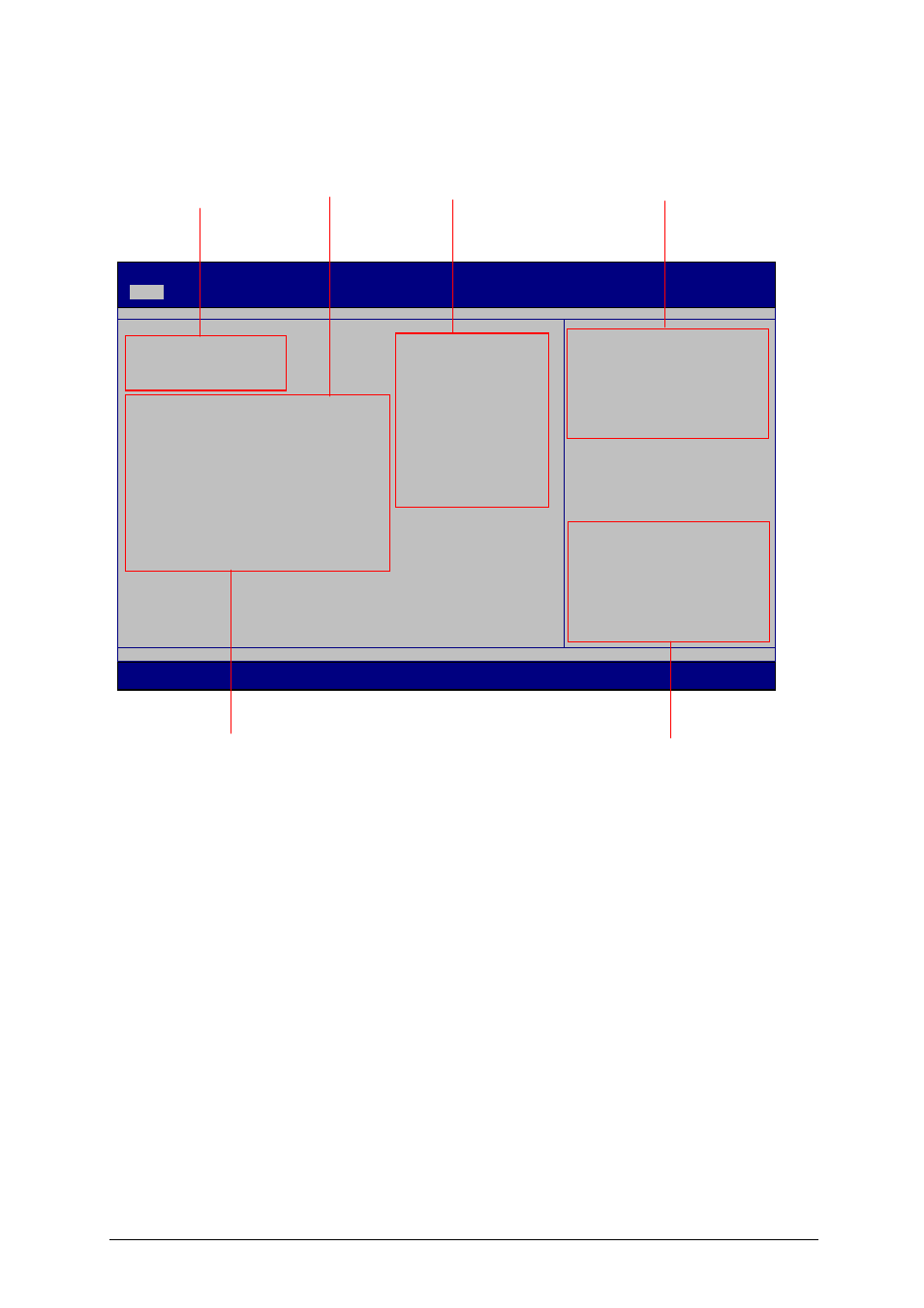

BIOS Screen layout
Menu Items Menu BAR Configuration fields General Help
Figure 29: BIOS Screen Layout
Note:
Sub-menu items indicated by “
8
” Navigation Keys
Menu Bar
Shows the menu screen options available, the currently selected menu screen is
high lighted. On entering the BIOS setup utility the Main screen menu is the first to
be shown. Use the left and right arrow keys switch select the available screens
shown in the menu bar.
Menu items
These are items relating to each menu bar heading and may have an associated
configuration filed.
Configuration fields
These show the value set or automatically detected for the corresponding menu
item. A configuration filed is either an indication of an automatic detection and may
System Time
[
12
:31:32
]
System date
[Thu 01/20/2005]
Legacy Diskette A
[1.44M, 3.5 in]
8
Primary P-ATA IDE Master :
[HDS722512VLAT20]
8
Primary P-ATA IDE Slave :
[Not Detected]
8
Secondary P-ATA IDE Master:
[Sony CD-RW CRX]
8
Secondary P-ATA IDE Slave :
[Not Detected]
8
S-ATA 1 :
[HDS724040KLSA80]
8
S-ATA 2 :
[HDS724040KLSA80]
8
IDE Configuration
8
System Information
Use
[ENTER] , [TAB]
or
[Shift-TAB] to
select a field.
Use
[+] or [-] to
configure system time.
←
Select Screen
↑↓ Select
Item
+- Change Field
Tab Select
Field
F1
General Help
F10
Save and Exit
ESC Exit
v02.53 (C) Copyright 1985-2002, American Magatrends, Inc.
BIOS SETUP UTILITY
Main
Advanced Power Boot Exit
