Vig390s Motherboard Manual V1.0

37

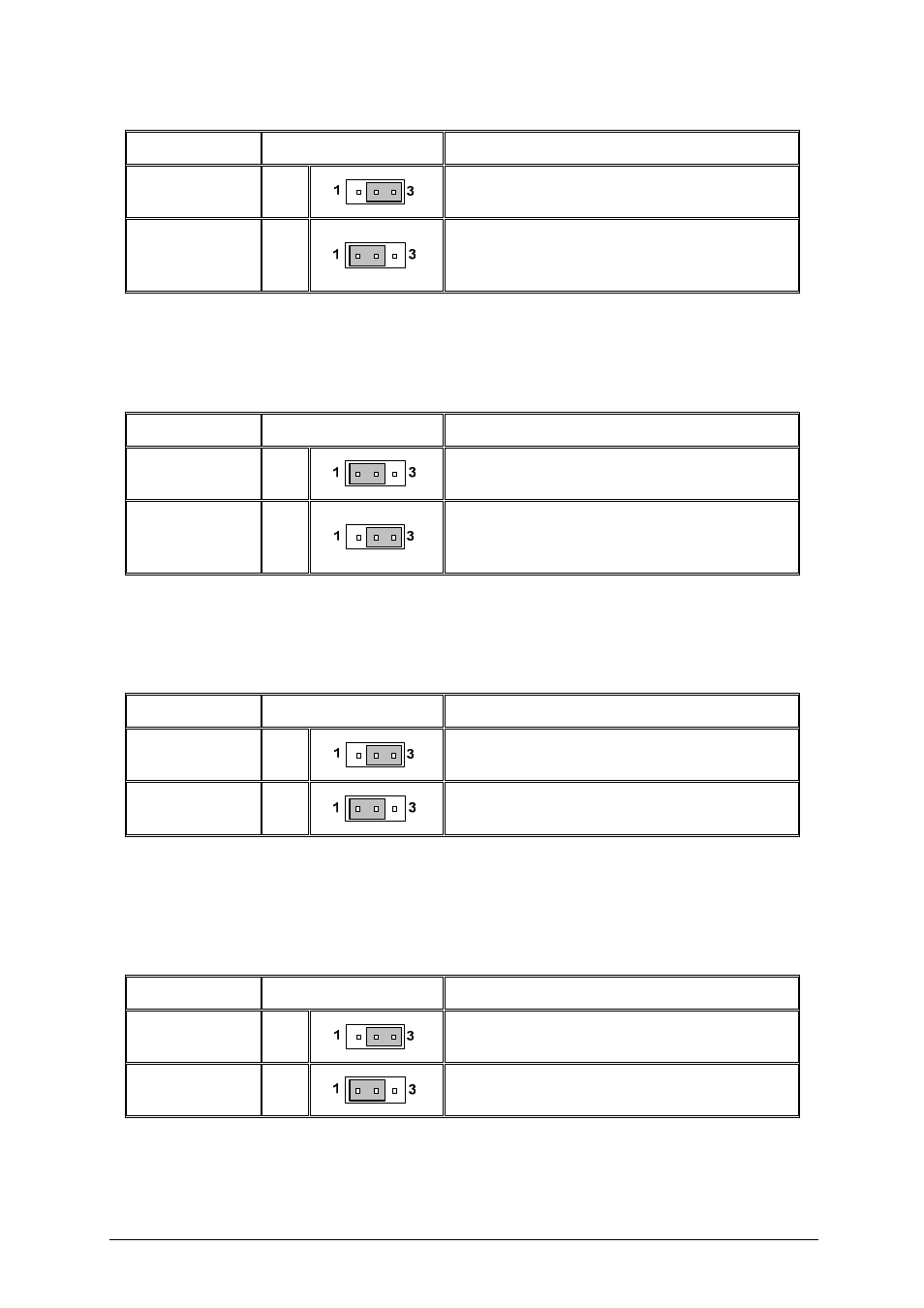

Table 19: USB power Jumper (USBPW12)

Function/Mode Jumper Setting

Configuration

(Default)
+5

2-3

Default mode +5V connection for USB ports
1 and 2.

+5VSB

1-2

Changing the jumpers to the +5VSB will
enable wake up from suspend with a USB
device connected to USB ports 1 or 2.

Keyboard Power Jumper (KBPWR1)
The table below describes the jumper settings; if the jumper removed and the
computer is powered-up then a system boot failure will occur.


Table 20: Keyboard Power Jumper (KBPWR1)

Function/Mode Jumper Setting

Configuration

(Default)
+5V

1-2

Default mode +5V, keyboard operation will
not wake system from suspend modes.

+5VSB

2-3

The Keyboard power jumper is set to
+5VSB, this enables keyboard operation to
wake the system from suspend.

CPU1 FAN power Jumper (FM_CPU1)
The table below describes the jumper settings; if the jumper removed and the
computer is powered-up then a system boot failure will occur.


Table 21:
CPU1 FAN power Jumper (FM_CPU1)

Function/Mode Jumper Setting

Configuration

(Default)
DC mode

2-3

Default mode for 3 wire DC Heatsink fan
control.

PWM

1-2

Alternative mode for 4 wire PWM Heatsink
fan control.

Note:

this will be set at time of manufacture according to the type of Heatsink fitted.

CPU2 FAN power Jumper (FM_CPU2)
The table below describes the jumper settings; if the jumper removed and the
computer is powered-up then a system boot failure will occur.


Table 22:
CPU2 FAN power Jumper (FM_CPU2)

Function/Mode Jumper Setting

Configuration

(Default)
DC mode

2-3

Default mode for 3 wire DC Heatsink fan
control.

PWM

1-2

Alternative mode for 4 wire PWM Heatsink
fan control.

Note:

This will be set at time of manufacture according to the type of Heatsink fitted.
