Intel Vig390s User Manual
Page 44
Vig390s Motherboard Manual V1.0
43

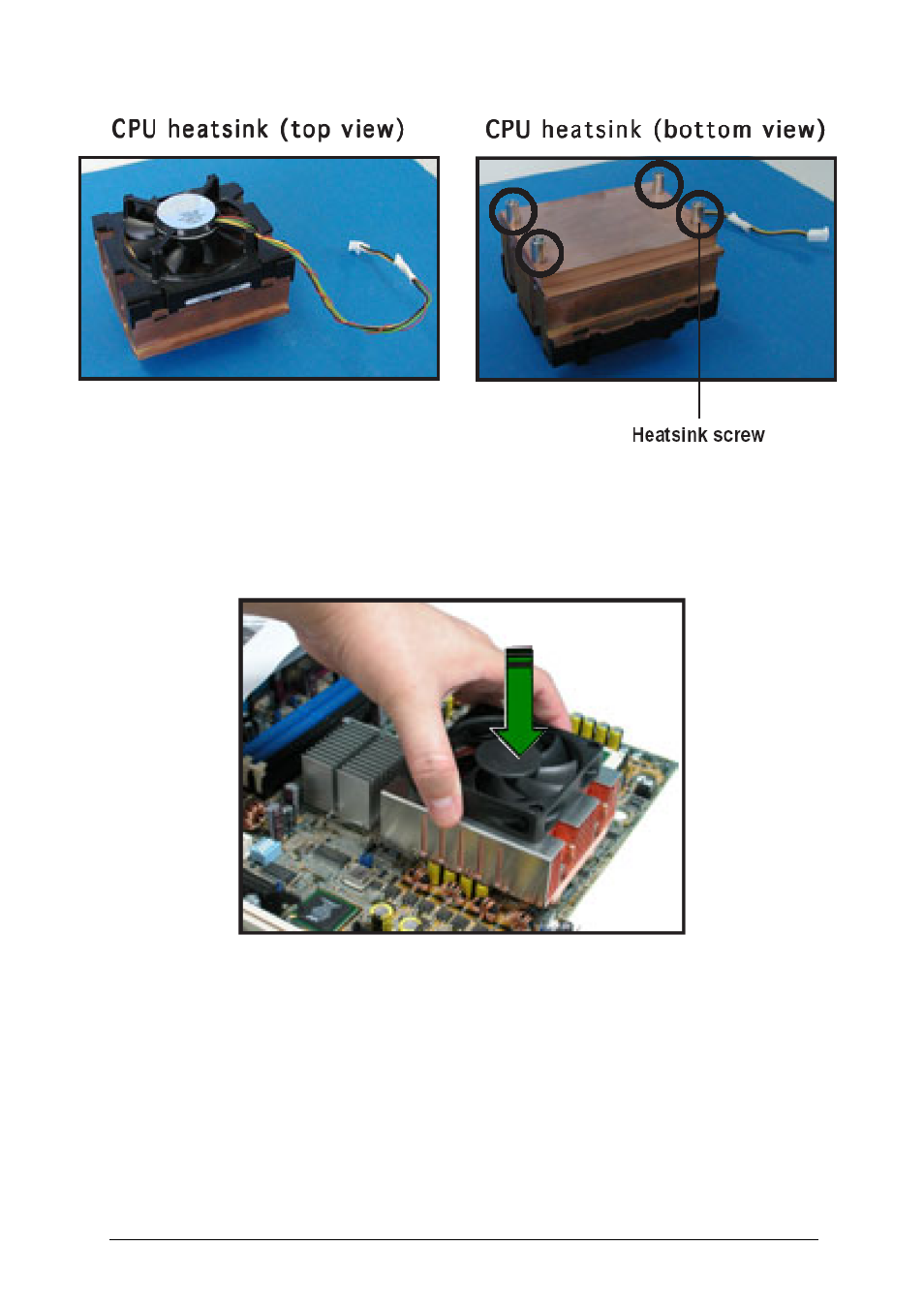

Figure 22: Xeon CPU heatsink
Fitting the heatsinks the figure above shows a typical Heatsink from top and bottom;
note the circled pillars that must locate through the motherboard. Note also that if
Heatsink thermal paste is not already applied to heatsinks this must now be done.
Figure 23: Mounting Heatsink to MB
Carefully locate each Heatsink over each CPU and allow the pillars to align with
mounting plates and fixing points through motherboard.
