Vig390s Motherboard Manual V1.0 24
LAN Subsystem
The Network Interface Controller subsystem consists of the Broadcom NetXtreme™
BMC5751 PCI Express Gigabit LAN controller Supporting PCI Express 1.0a
interface.
Features
• 10/100/100BASE-T Gigabit Ethernet
• PCI-Express bus interface
• IEEE802.3 compliant media access controller (MAC)
• TCP,IP, and UDP checksum
• Microsoft® large Send Offload
• Large burst read
• Interrupt coalescing
• Standard-compliant WOL
• SMBUS 2.0 controller
• Alert Standard Format (ASF) 2.0 support
• Supports RJ-45 connector with status indicator LEDs
• Full driver compatibility
• Advanced Power Management support
• Configuration EEPROM that contains the MAC address
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector. The following table describes the
LED states when the board is powered up and the LAN subsystem is operating.

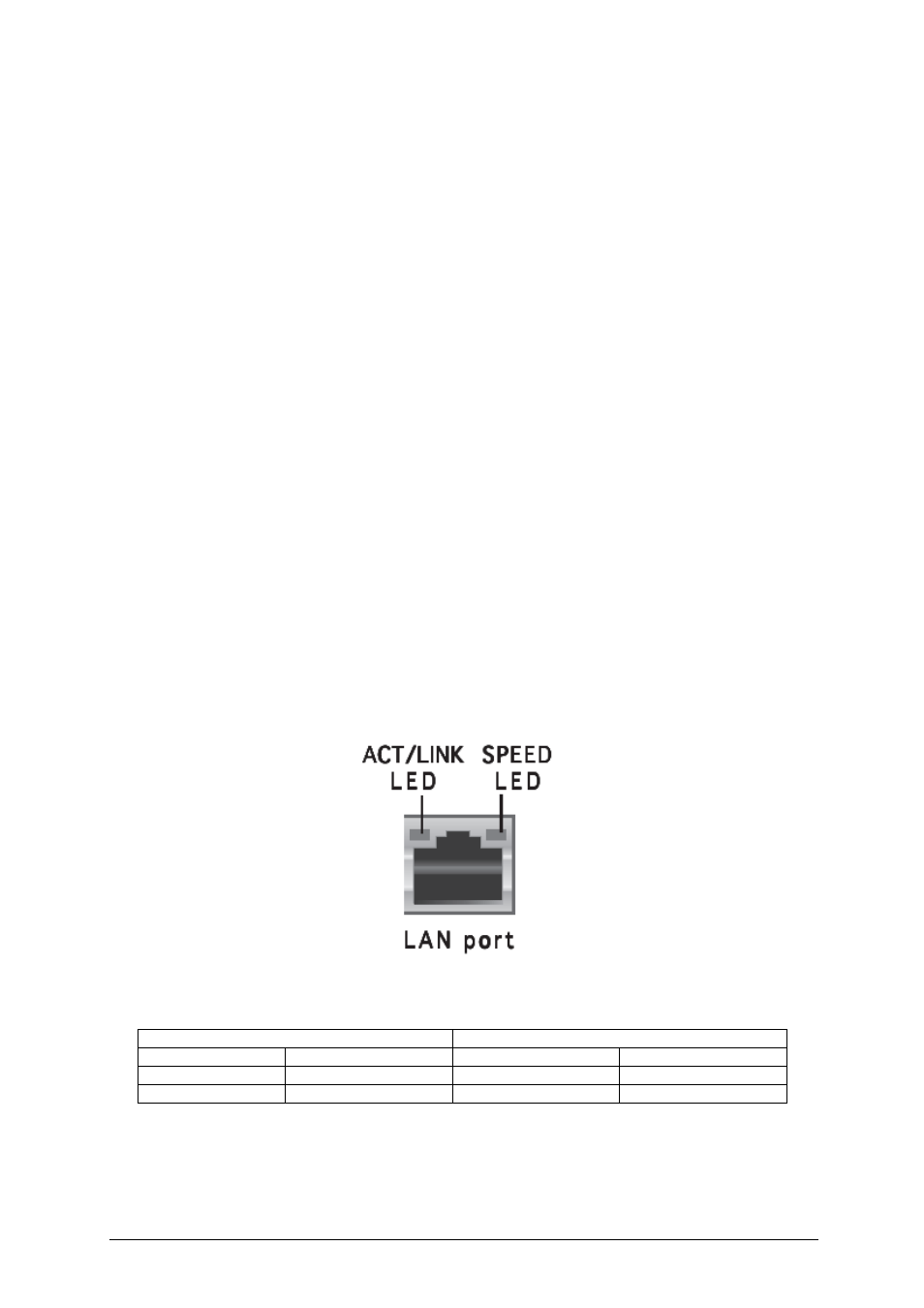

Figure 13: LAN Connector
Table 7: LAN Connector LEDs
ACT/LINK LED SPEED LED
OFF No link Off 10Mbps
Green Linked Orange 100Mbps
Blinking
Data activity Green 1 Gbps
