Vig390s Motherboard Manual V1.0 39
Front panel connections
The following are all connectors situated along the front edge of the motherboard. They are
often connected to buttons and LED’s situated on the front panel.
Reset
Switch
Power
Switch
H.D.D.
LED
+
Front pannel
connectors
+
Power
LED

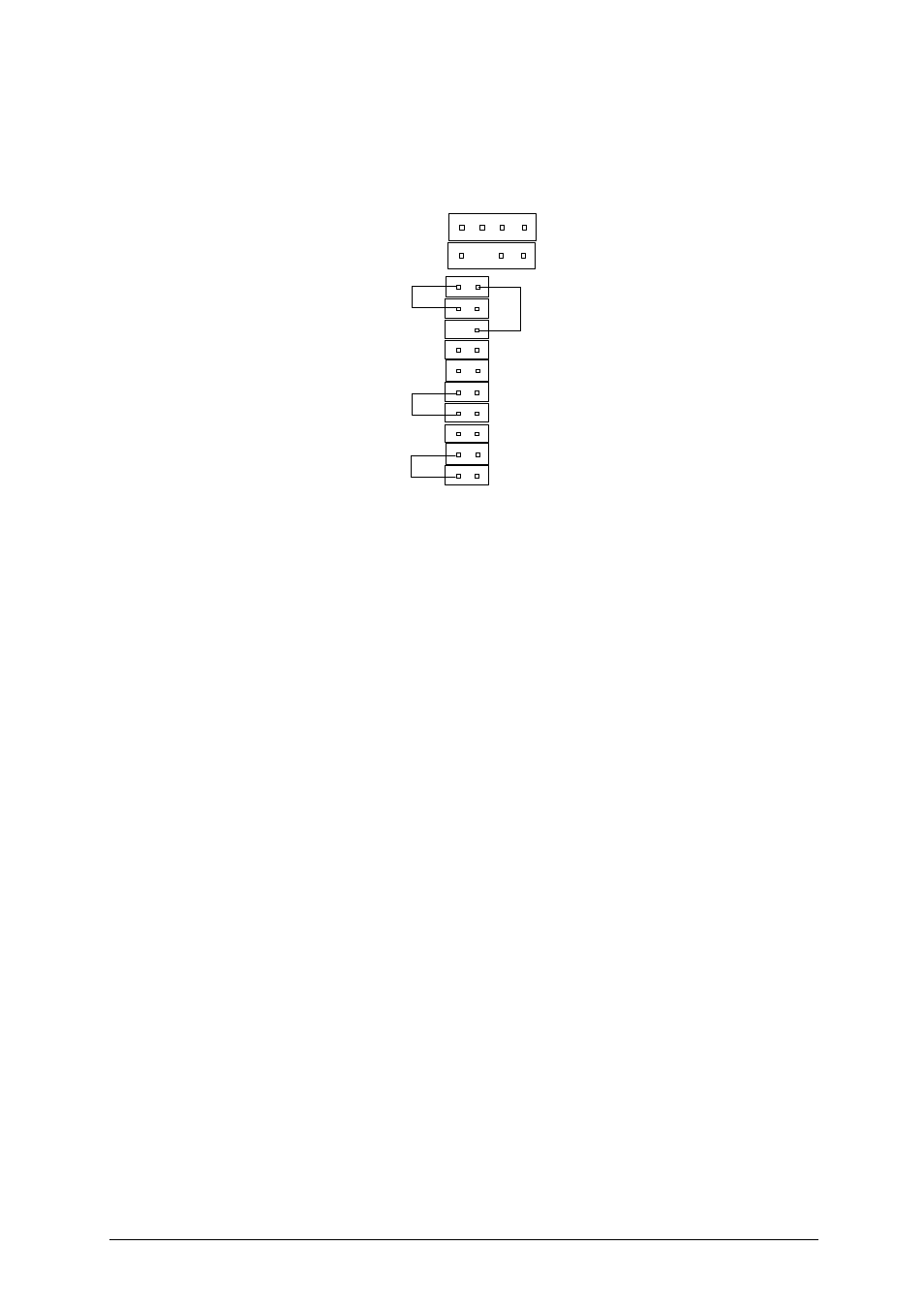

Figure 16: Front panel connectors
A - Hard Disk L.E.D. Connector
This goes to the Hard Disk L.E.D. on the front panel, which lights up when the IDE
Hard Disk is in use.
B - Reset switch connector
When these pins are shorted, it will cause the computer to perform a cold reboot.
C - Power L.E.D.
This attaches to the power L.E.D on the front panel, to display if the computer is
active or not.
D- Power Switch On/Off
When these pins are shorted it turns the computer on and off.
