System Board Jumper Settings

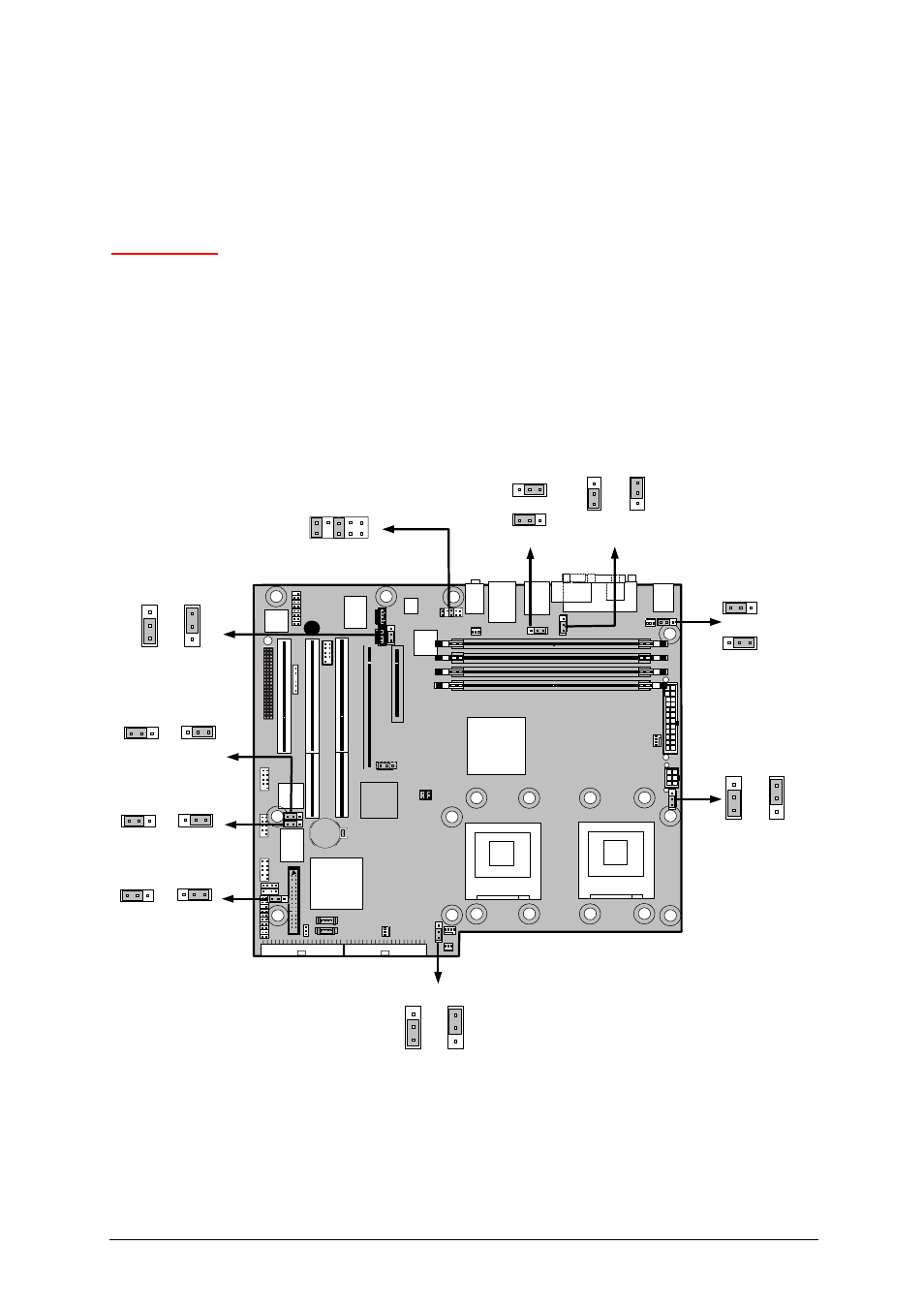

The following figure shows the jumper locations of the motherboard. Please refer to
the following tables describing each jumper’s configuration.
CAUTION!
Do not move the jumper with the power on. Always turn off the power and unplug
the power cord from the computer before changing a jumper, taking all necessary
anti static precautions.
Note:
There is no jumper setting for configuring the processor speed or bus
frequency. The feature for configuring the processor speed is in the Setup program
using configure mode. See BIOS Section for information about configure mode.
CPU1 CPU2
3
2
1
FM_CPU2
DEFAULT
NORMAL
CLEAR
CMOS
1 2 3 1 2 3
CLRTC1
3
2
1
DEFAULT
DC MODE
PWM
3
2
1
FM_CPU1
3
2
1
DEFAULT
DC MODE
PWM
1 2 3
1 2 3
KBPWR1
DEFAULT
+5V
+5VSB
DEFAULT
ENABLE DISABLE
1 2 3 1 2 3
1394_EN1
DEFAULT
ENABLE
DISABLE
1 2 3 1 2 3
USB_EN1
3
2
1
LAN_EN1
3
2
1
DEFAULT
ENABLE
DISABLE
USBPW12
1
2
3 1
2
3
DEFAULT
+5V
+5VSB
USBPW34
DEFAULT
+5V
1 2 3
1 2 3
+5VSB
FRONT
PANEL
AUDIO
DEFAULT
INTEL
E7525
INTEL
6300ESB
Figure 14: Jumper Configurations
