Chapter 4: Installing the Software
5536 PRI RAS Communications Controller Users Guide 49
– For North America and Japan, select
µ
Law (Mu
Law).
3. Click OK.
If you have not yet configured the board’s ISDN port
properties, do so now, as described in
Configuring ISDN Port
Properties on page 46 . Otherwise, continue to the next topic.
Completing the WAN Setup
When WAN card and port properties are configured as needed,
do the following to complete the WAN setup:
1. Click OK in the WAN Adapters Setup dialog box.
The setup software finds firmware for the board. It
updates the registry and dynamically installs the drivers.
2. When the following message informs you that the driver
is running, click OK.

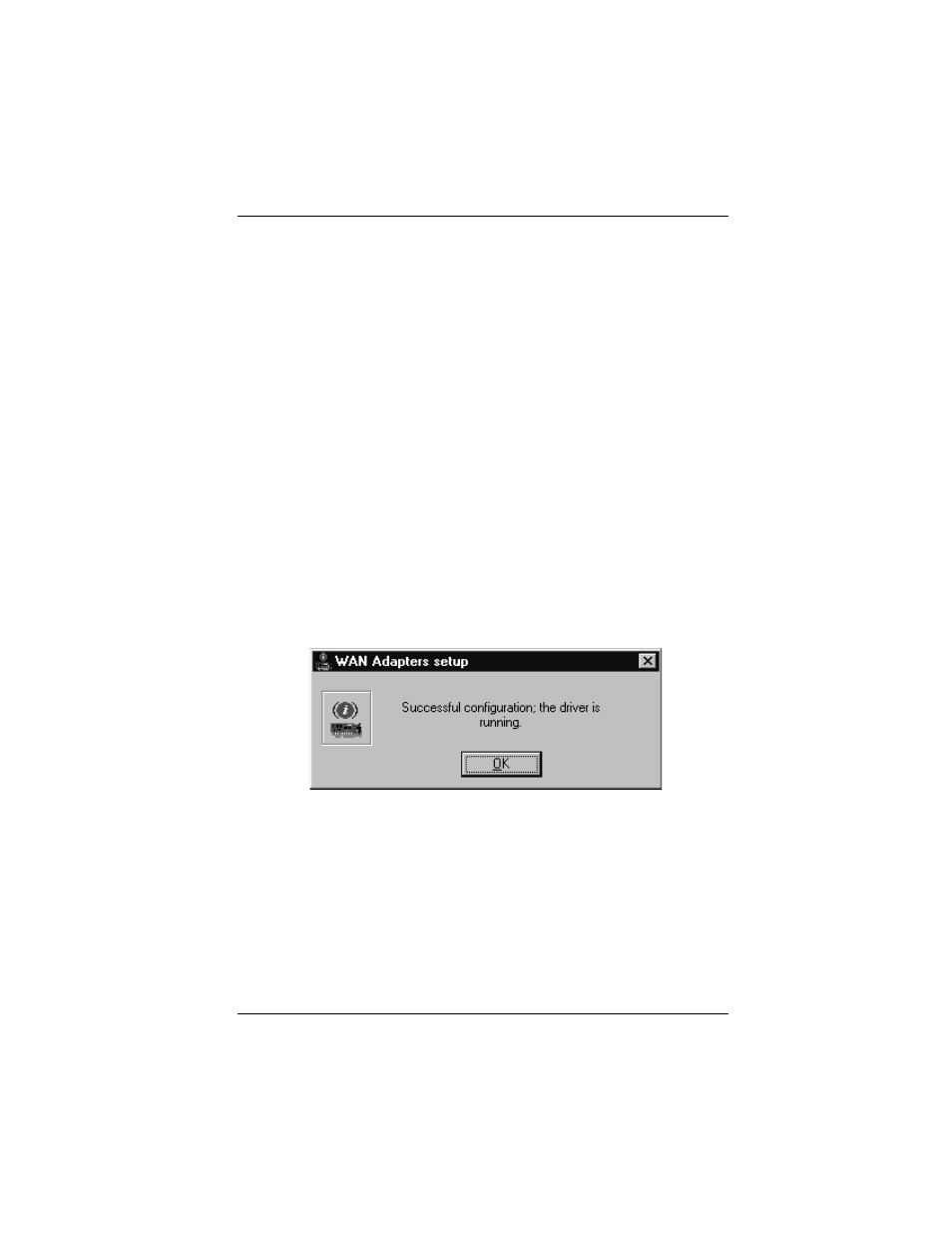

Figure 4-10. Successful Setup Message
Next, set up RAS support properties for the driver.
