Setting Up Card and Port Properties
46
Interphase Corporation

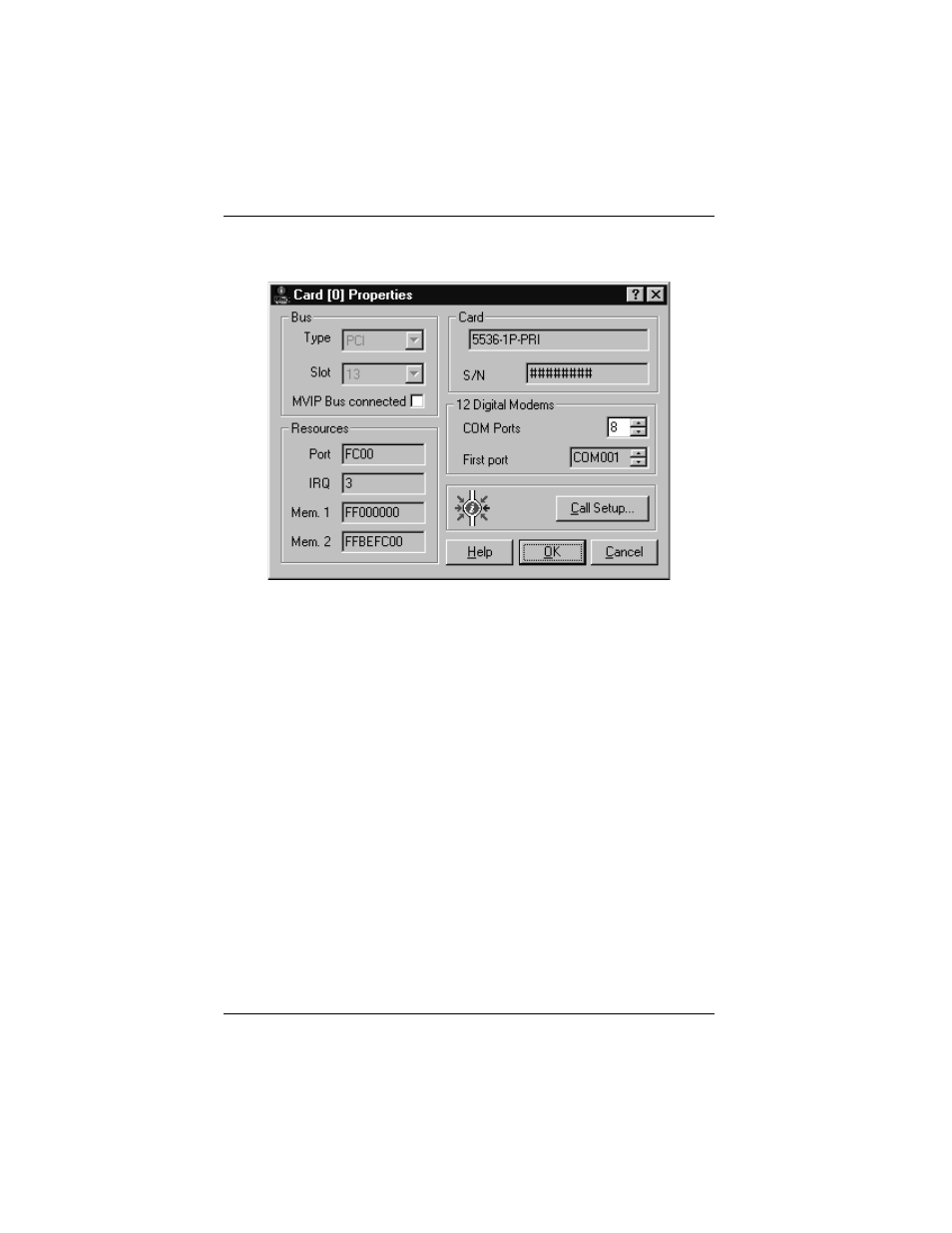

The Card Properties dialog box appears:
Figure 4-7. Card Properties Dialog Box
2. Select the MVIP Bus connected field (in the Bus
section) by clicking on the checkbox.
3. Click OK to save the connection and return to the WAN
Adapters Setup dialog box.
Configuring ISDN Port Properties
ISDN port properties must always be configured for both
Digital Modem and ISDN RAS support drivers. Configure
ISDN port properties as follows:
1. In the Cards section of the WAN Adapters Setup dialog
box, select the ISDN PRI port you want to configure
and click Properties.
The ISDN PRI Port Properties dialog box appears:
