234 IBM System Storage DS6000 Series: Copy Services with IBM System z

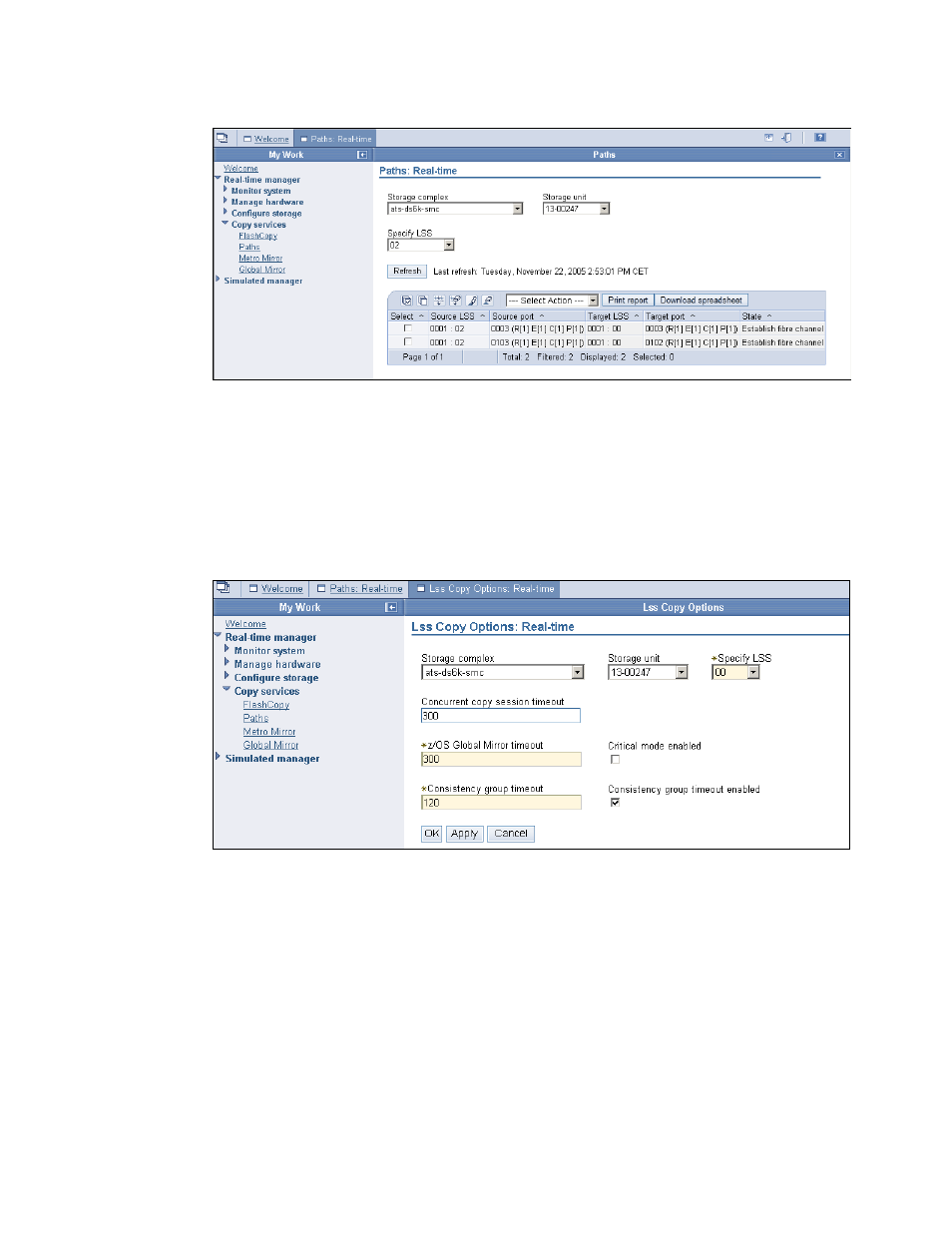

Figure 20-1 Paths panel
To create a new path, select from the Select Actions pull-down menu Create, and a process
will then guide you to establishing a path.
Alternatively, if in the Paths panel you select one or more of the existing paths, then the
Select Actions pull-down menu will give you the following additional possible actions:
Delete, to delete the paths you have selected before.
LSS copy options, to modify the copy options for an LSS; see Figure 20-2.
Figure 20-2 LSS Copy Options
20.5.2 Metro Mirror panel
The Metro Mirror panel is the central point in the DS Storage Manager to establish new and
manage existing Global Copy pairs. You can get to the Metro Mirror panel as follows:
1. Select Real-time manager.
2. Select Copy services.
3. Click Metro Mirror.
Figure 20-3 on page 235 shows the Metro Mirror panel.
