Upgrading the 4-Port Dial Access Adapter Using the 4-Port Dial
Access Modem Card Feature

Note: This procedure assumes that you have a 4-port Dial Access Adapter
installed in your IBM 2210.

wer

Rea

ult

Blanking
Plate
Screws

Front
Blanking
Plate

4 Port
Connector Plug

Rear Blanking
Plate

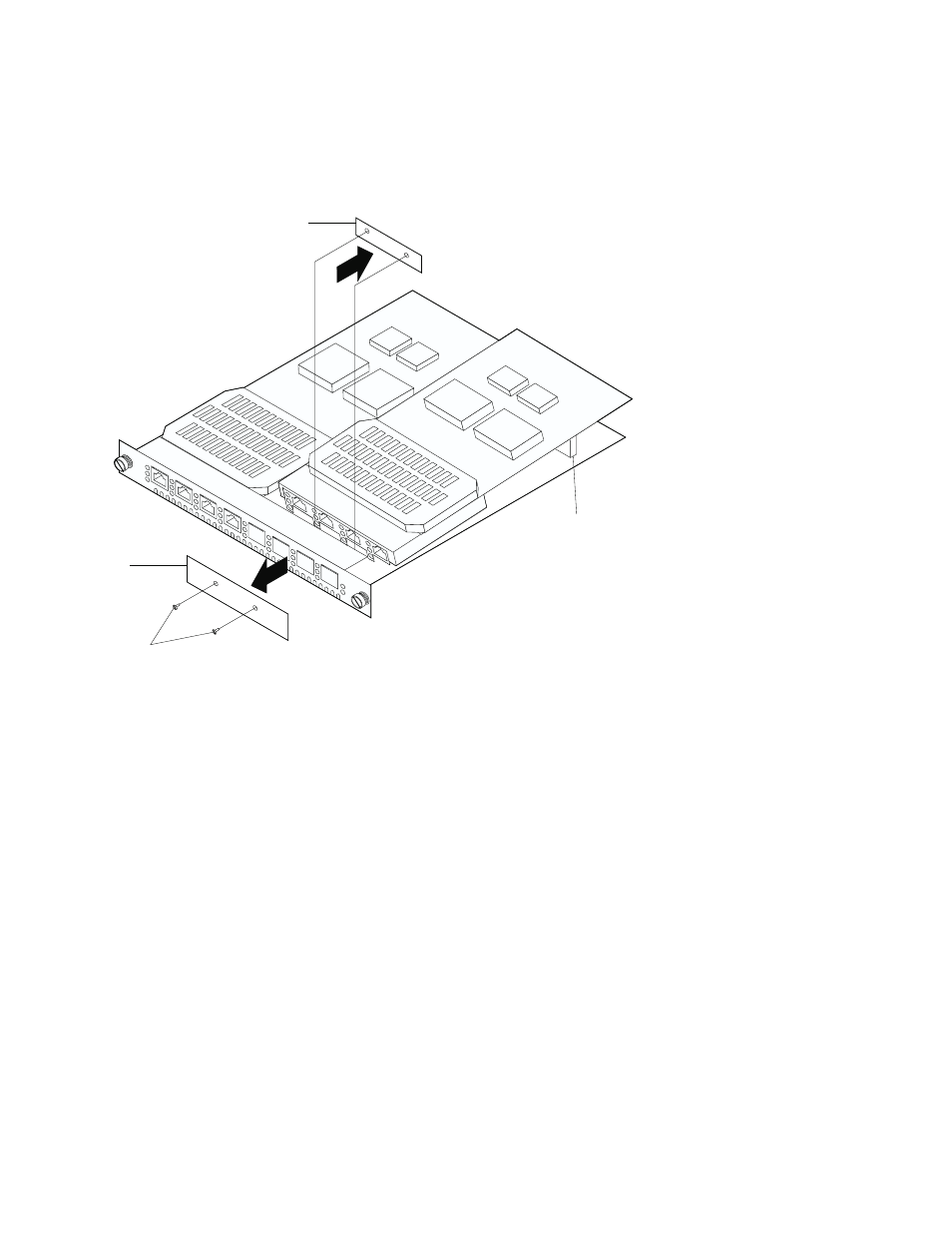

Figure

4-43. Upgrading the 4-Port Dial Access Adapter

To upgrade the 4-port Dial Access Adapter with a new 4-port Dial Access Modem
Card:

1. Remove the Dial Access Adapter from the 2210 as described in “Removing the

Optional Adapter” on page 4-38.

2. Remove the 4-port Dial Access Modem Card from the anti-static bag.
3. Place the bag on a flat surface and place the Dial Access Adapter that you

removed from the IBM 2210 on top of the bag.

4. Using a flat-blade screwdriver, remove the blanking plate from the Dial Access

Adapter faceplate and store in a safe place. You will need to replace this if the
4-port Dial Access Modem Card is removed from the adapter.

5. Angle the upgrade such that the RJ-11 jacks align with the ports on the

faceplate.

6. Align the 4-port connector plug on the 4-port Dial Access Modem Card and the

connector receptacle on the Dial Access Adapter.

7. Press firmly on the 4-port Dial Access Modem Card over the words PRESS

HERE TO INSERT.

8. Using a nut driver, secure the 4-port Dial Access Modem Card in place with the

three (3) screws provided.

9. Reinstall the Dial Access Adapter as described in “Installing Optional Adapters”

on page 4-36.

4-42

2210 Service and Maintenance
