10
Attach the fan cable by pressing firmly down until it clicks into place.
11
Position the power supply cable connector so that the side of the connector
with the tabs faces the retaining clips. Then, press firmly down until it clicks
into place.
12
Reinstall the cover. See “Reinstalling the Cover” on page 4-4 for
instructions.
Note: The customer must reload operational code and configuration infor-
mation after the system board is replaced.
Single In-line Memory Module (SIMM)
Refer to “Handling Static-Sensitive Devices” on page 4-2 before removing or
installing a SIMM.
Removing the Dynamic Random Access Memory (DRAM) SIMM for 12x
Models
Note: The figures in this procedure are based on the 12x models. The location of
the DRAM socket is similar in the other models and the procedures are identical.

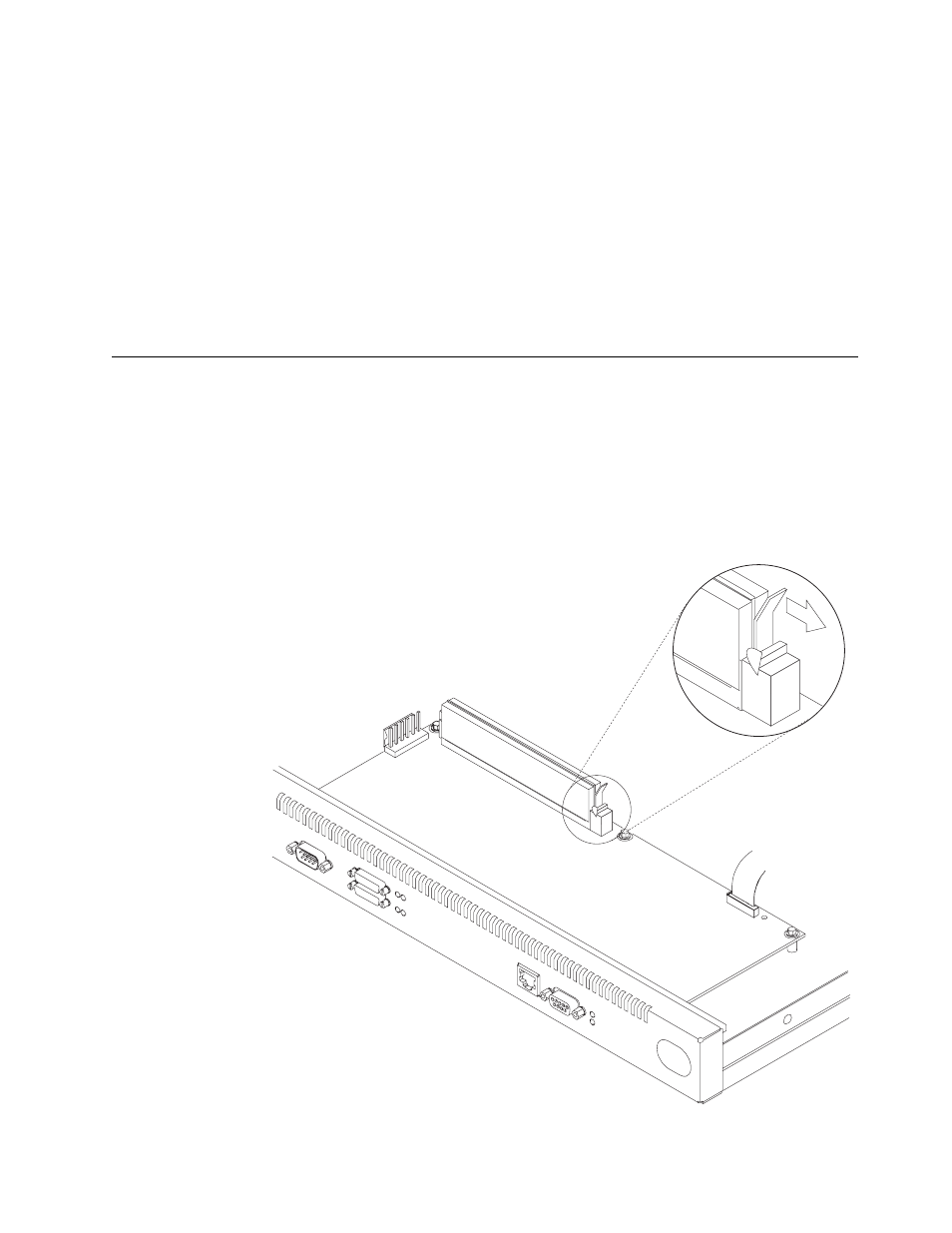

Figure 4-19. Removing the DRAM SIMM in 12x Models
Chapter 4. Removal and Replacement Procedures 4-15
