LED Panel
Removing the LED Panel for 12x Models

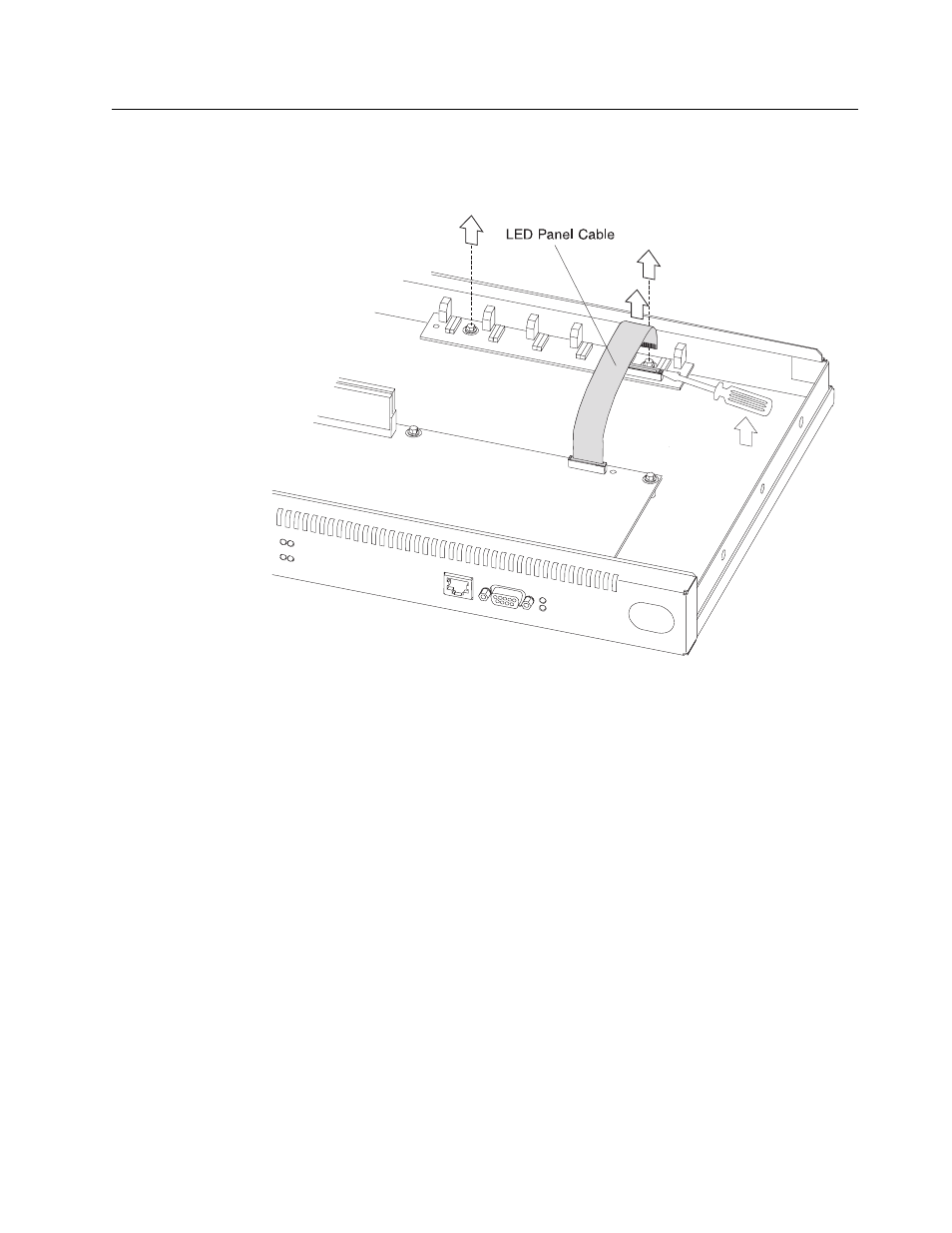

Figure 4-33. Removing the LED Panel (12x Models)
1
To remove the LED panel cable, use a screwdriver on either side of the con-
nector to lift the blue retaining latch. Pull the cable from the latch. Note as
you remove this cable that the blue coloring on the end of the cable faces the
blue latch.
2
Remove the two screws that attach the LED panel to the floor of the
machine.
3
Slide the LED panel toward the center of the machine until the bulbs clear
the wall of the system unit.
Chapter 4. Removal and Replacement Procedures 4-29
