Fan Cable
LED Panel Cable
Power Supply Cable
Reset Cable
AC Power Ground
AC Power Cable

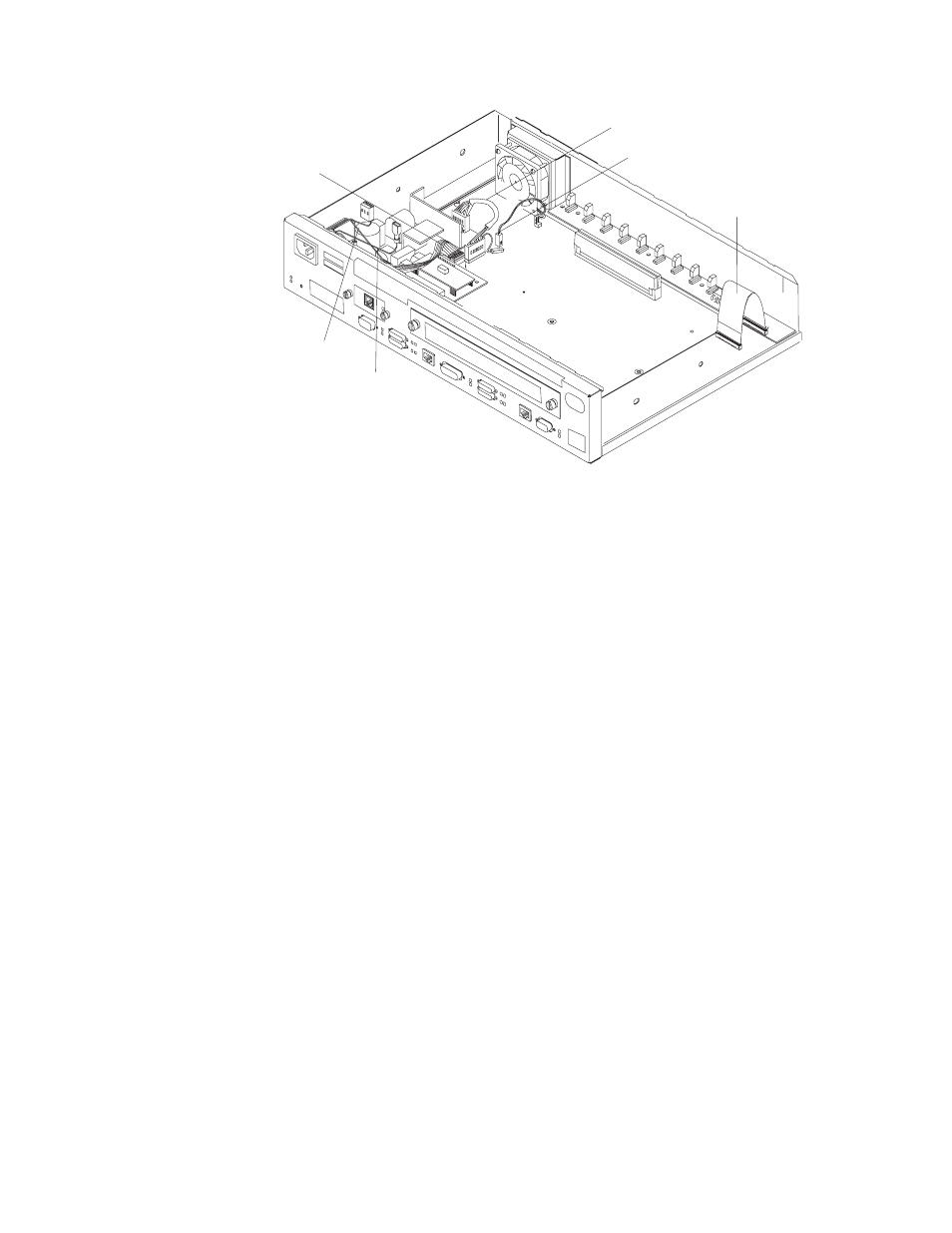

Figure 4-28. Connections to the Power Supply (14T and 24x Models)
3
If the Adapter Enablement Feature feature is installed, remove the connector
to the adapter riser card.
4
Remove the power supply cover by sliding the cover toward the fan until the
leading edge of the cover clears the front panel, then lifting.
5
Remove the connector from the adapter power supply, if installed, to the ac
power source.
6
Remove the connector to the ac power source.
7
Remove the four corner hex screws from the power supply.
8
Lift the power supply out of the system unit. Be sure to leave the insulator in
place when you remove the power supply and note the position of the regu-
lator protection tab.
4-24 2210 Service and Maintenance
