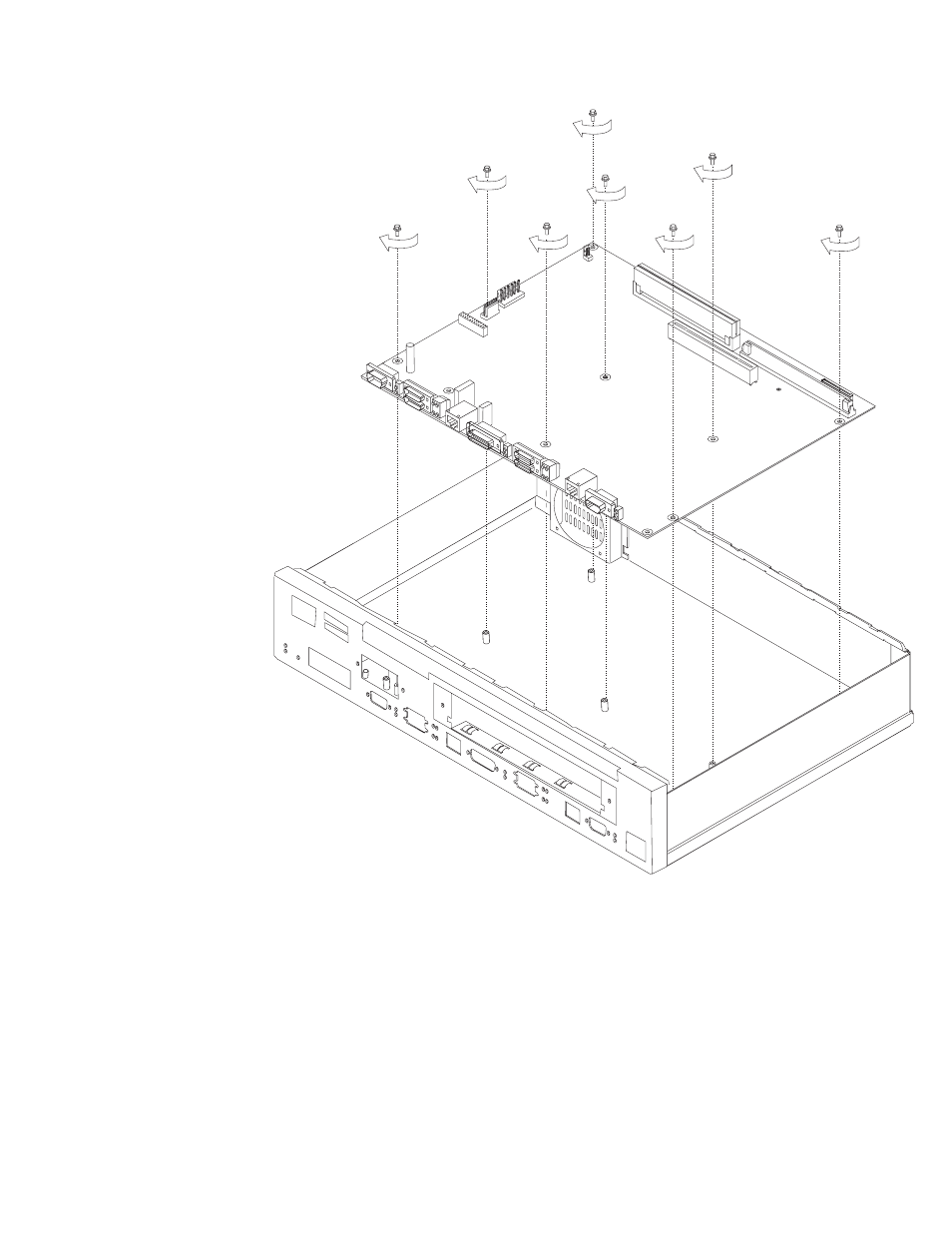

Figure 4-16. System Board Retainer Screws (14T and 24x Models)
4
Using a nut driver, replace the hex screws in the service port and in the
token-ring port, if present on this IBM 2210.
5
Replace the bracket on the Ethernet port, if present. See Figure 4-8 on
page 4-7 for reference.
6
Replace the remaining slotted screws that attach the WAN ports to the front
panel.
Chapter 4. Removal and Replacement Procedures 4-13
