Installing the Flash and DRAM SIMMs in Models 14T and 24x
| Note: When using 32 MB of memory with a 14T or 24x model you must be at
| revision level 2.34 or higher of the PROM Load/Dump Program.
Refer to “Handling Static-Sensitive Devices” on page 4-2 before removing or
installing a flash SIMM.

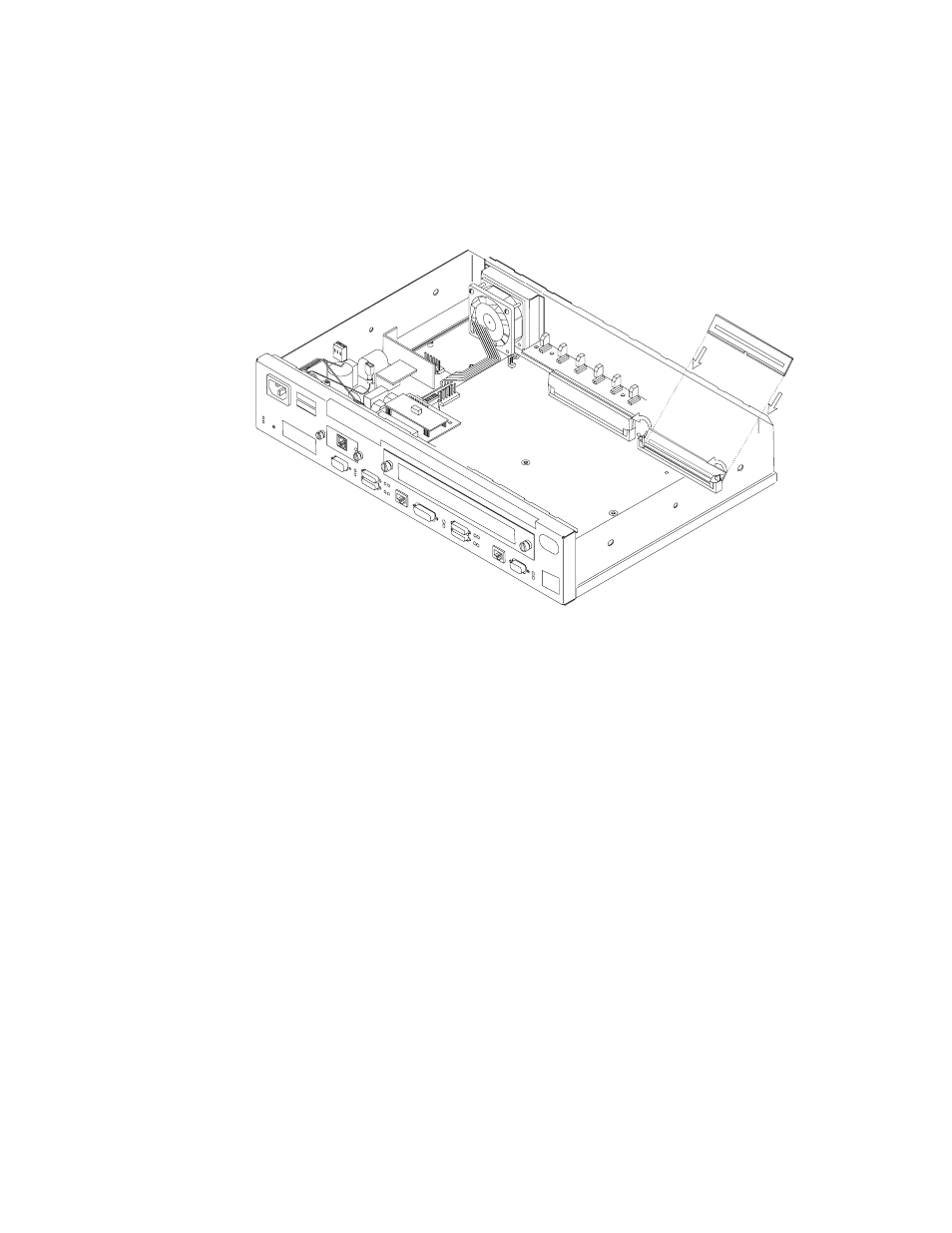

Figure 4-22. Installing the Flash SIMM (14T and 24x Models)
1
Remove the cover from the IBM 2210 as described in “Removing the Cover”
on page 4-2.
2
Tilt the top of the SIMM away from you and slide it into the retainer.
3
Press the SIMM forward until the retaining tabs are holding it securely.
4
Replace the cover on the IBM 2210 as described in “Reinstalling the Cover”
on page 4-4.
5
Verify that the IBM 2210 is functioning correctly by using “MAP 0210: Verify
Operation” on page 2-23.
4-18 2210 Service and Maintenance
