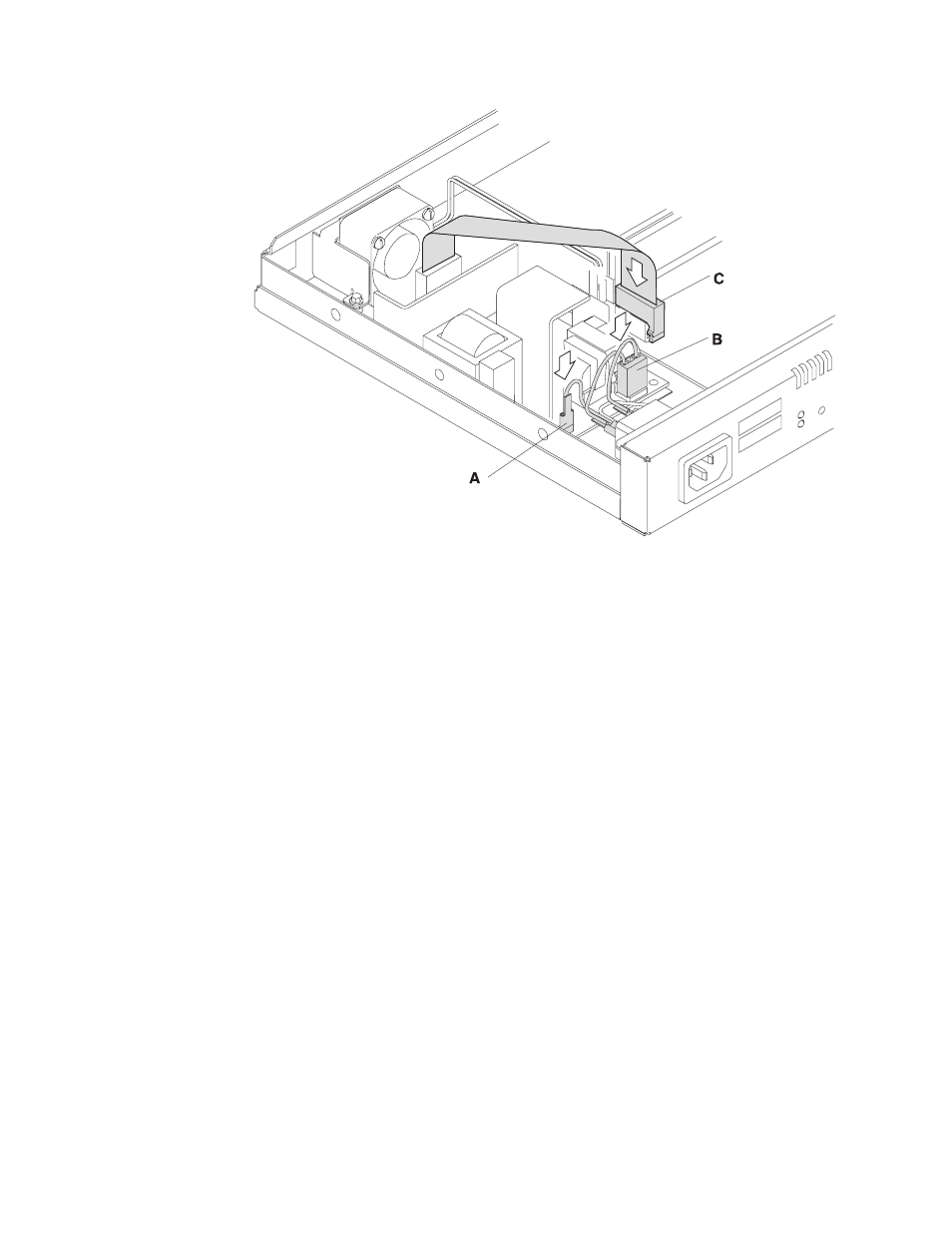

Figure 4-26. Connections to the Power Supply (12x Models)
2
Replace the spade lug terminal ground (A).
3
Replace the connector to the ac power source (B).
4
Position the connector to the system board (C) so that the side of the con-
nector with the tabs faces the retaining clips. Then, press firmly down until it
clicks into place. Be sure it is firmly seated.
Removing the Base Power Supply for 14T and 24x Models
To remove the power supply:
1
Remove the screws that attach the power supply cover to the chassis as
shown in Figure 4-27 on page 4-23.
4-22 2210 Service and Maintenance
