Figure

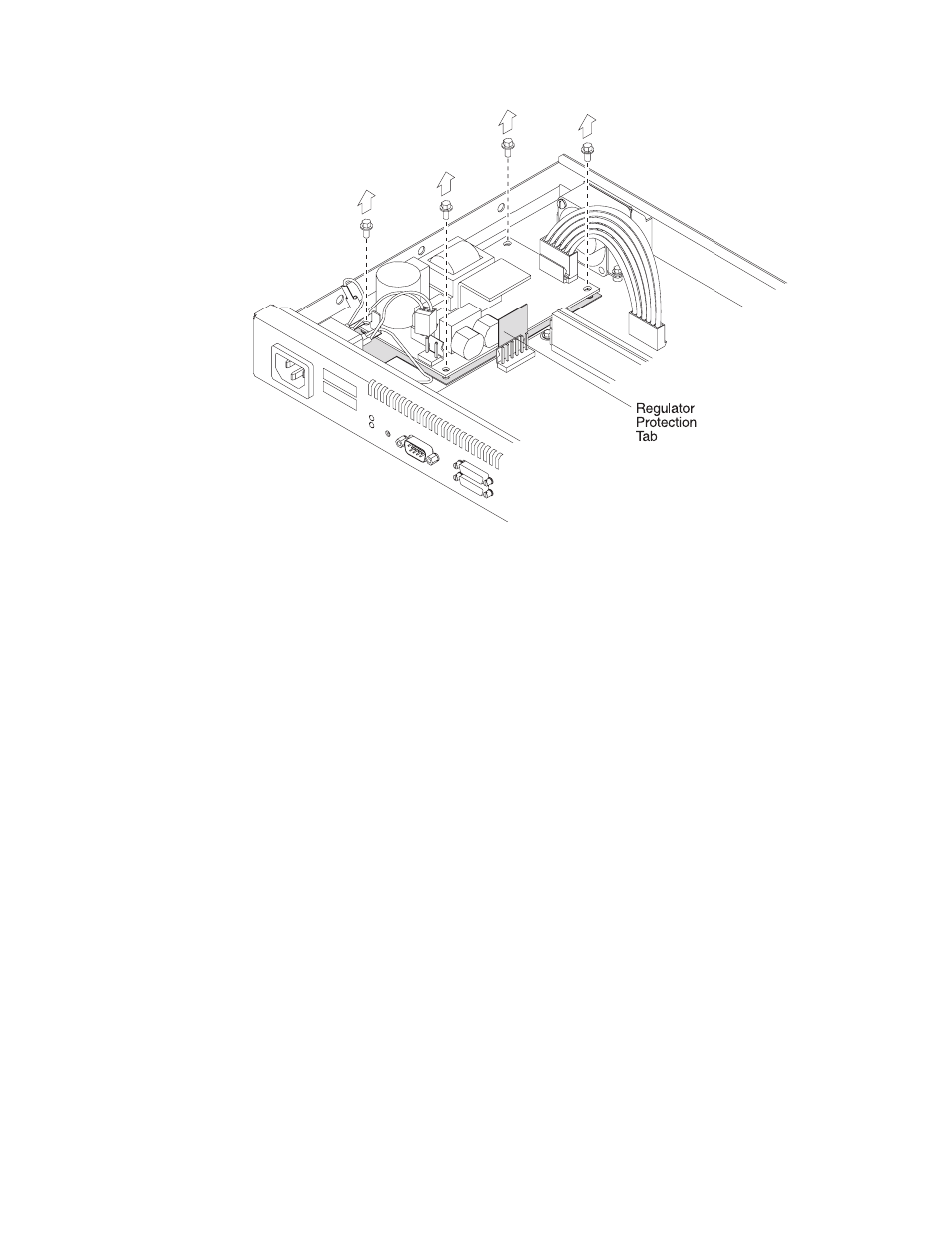

4-24. Removing the Screws from the Power Supply (12x Models)
4
Remove the four corner hex screws from the power supply.
5
Lift the power supply out of the system unit. Be sure to leave the insulator in
place when you remove the power supply and note the position of the regu-
lator protection tab.
4-20
2210 Service and Maintenance
