Installing a Second Service Port in Models 14T and 24x
Refer to “Handling Static-Sensitive Devices” on page 4-2 before removing or
installing a second service port card.
Installing the EIA 232 Service Port Feature in Models 14T and 24x

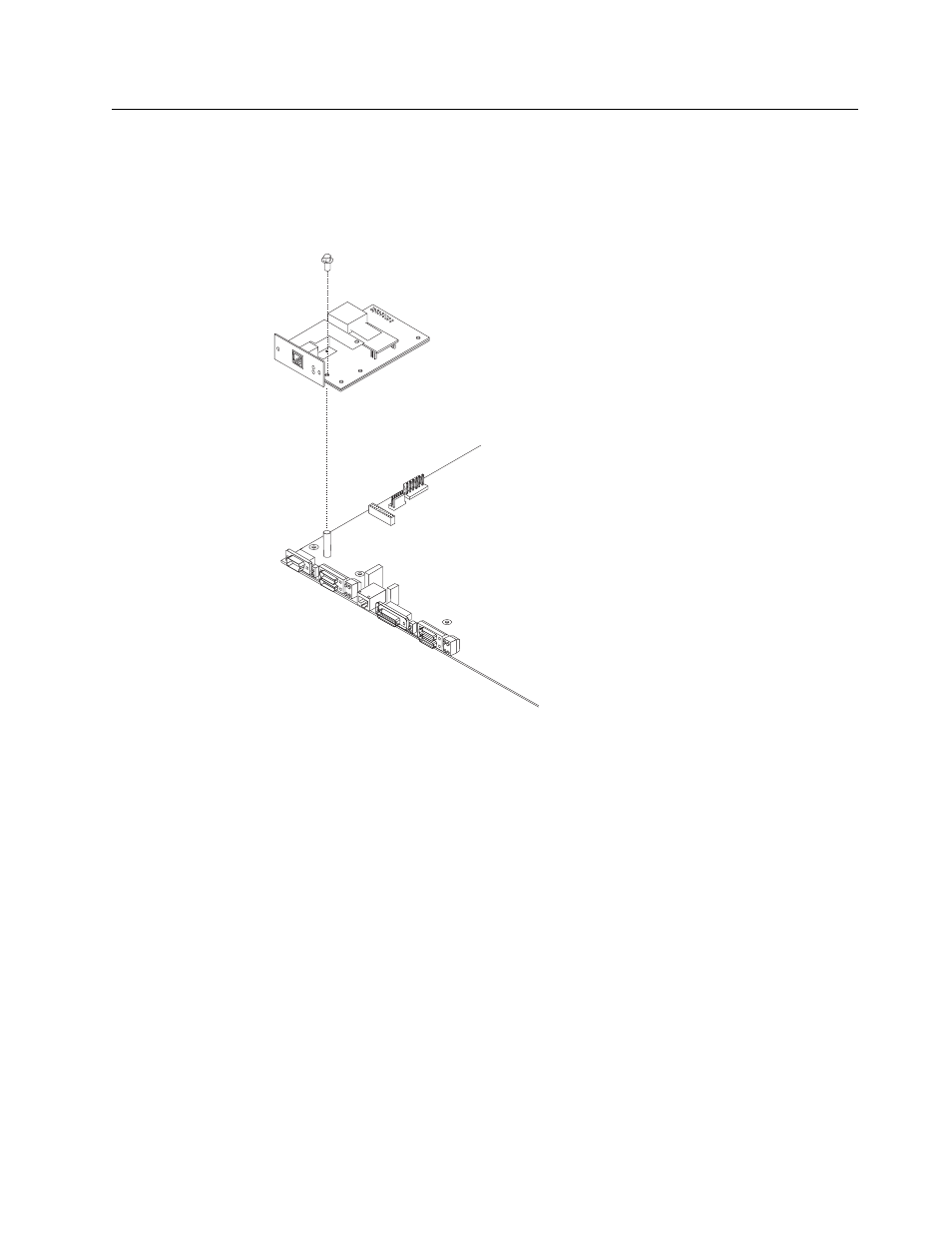

Figure 4-41. Installing the EIA 232 Service Port Feature
1
Remove the cover from the IBM 2210 as described in “Cover” on page 4-2.
2
Remove the blank Service Port faceplate by unscrewing the two screws.
3
Save the faceplate and screws.
4
Insert the EIA 232 Service Port Feature connection into the connector on the
system board.
5
Using the two screws from the blank faceplate secure the front of the Service
Port Card faceplate to the frame of the IBM 2210.
6
Fasten the middle of the EIA 232 Service Port Feature to the standoff on the
system board using the supplied Philips-head screw.
7
Replace the cover as described in “Reinstalling the Cover” on page 4-4.
