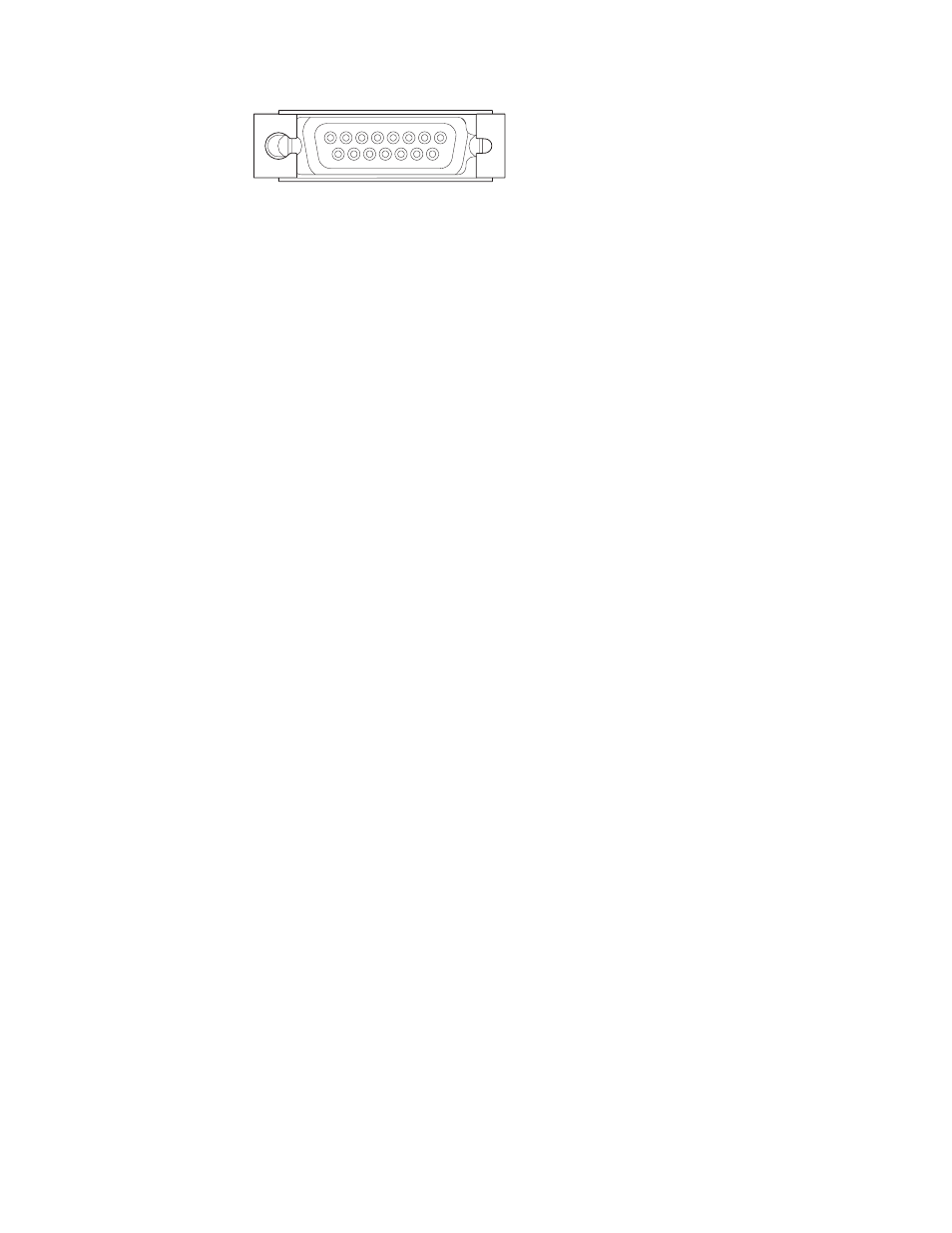

Figure 4-15. Ethernet Port
11
Using a screwdriver, remove the remaining slotted screws that attach the
WAN ports to the front panel.
12
You will transfer memory modules from this system board to the new one.
Go to “Removing the Dynamic Random Access Memory (DRAM) SIMM for
12x Models” on page 4-15 and “Removing the Flash and DRAM SIMMs in
Model 14T and 24x” on page 4-17 for instructions for removal. After you
remove the memory, lift the system board out of the unit.
Replacing the System Board for 14T and 24x Models
1
Place the system board in the IBM 2210.
2
Go to “Replacing the DRAM SIMM for 12x Models” on page 4-16 and
“Installing the Flash and DRAM SIMMs in Models 14T and 24x” on
page 4-18 for instructions on replacing the memory. Then, continue with
step 3.
3
Use a nut driver to replace the system board retainer screws. Figure 4-16
on page 4-13 shows the location of the retainer screws.
4-12 2210 Service and Maintenance
