Removing the Flash and DRAM SIMMs in Model 14T and 24x

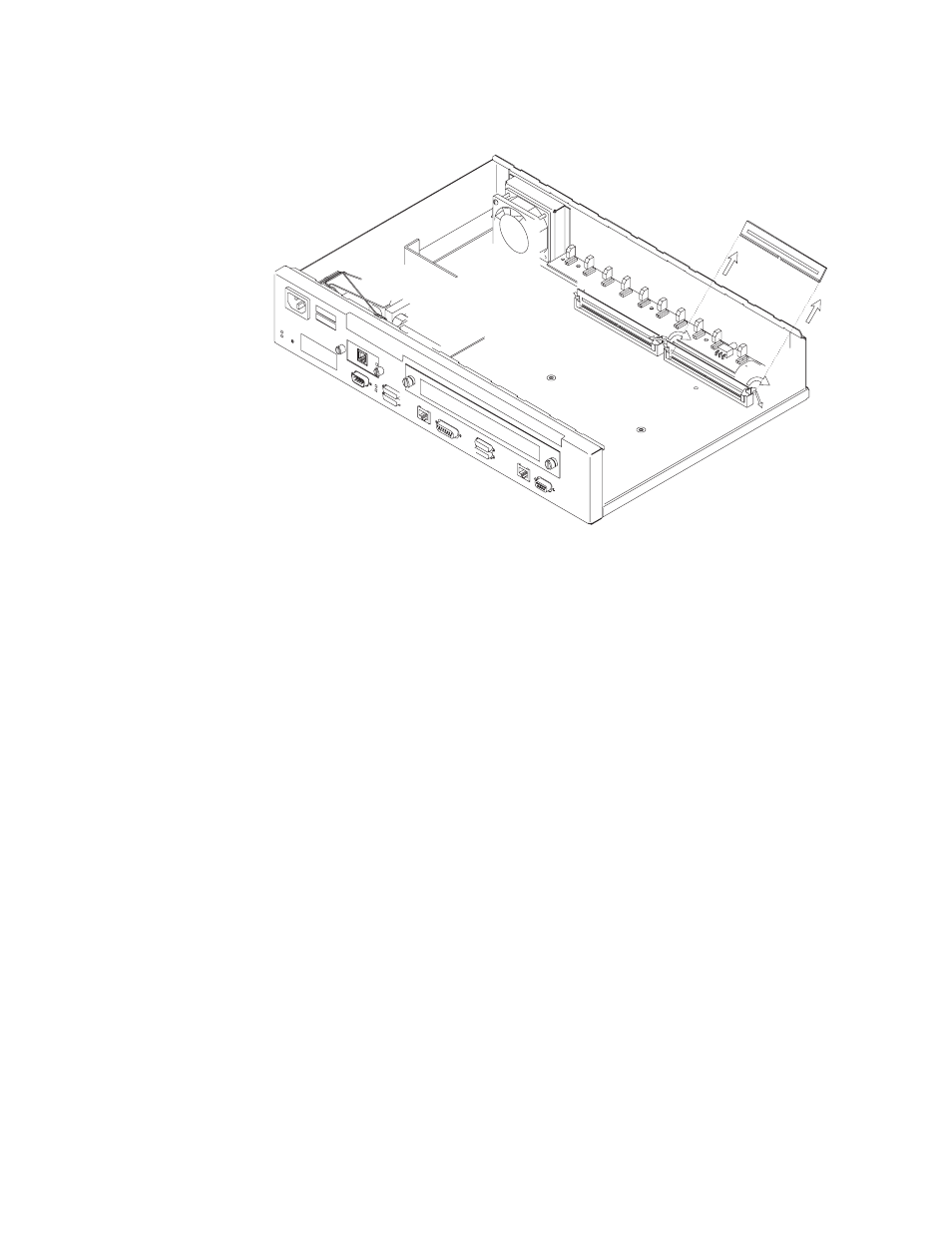

Figure 4-21. Removing the Flash SIMM (14T and 24x Models)
1
Remove the cover from the IBM 2210 as described in “Removing the Cover”
on page 4-2.
2
Push back the retaining tabs located at each end of the SIMM socket. The
SIMM will fall backwards.
3
Remove the SIMM by gently pulling it away from you.
4
Replace the cover on the IBM 2210 as described in “Reinstalling the Cover”
on page 4-4.
5
Verify that the IBM 2210 is functioning correctly by using “MAP 0210: Verify
Operation” on page 2-23.
Chapter 4. Removal and Replacement Procedures 4-17
