Figure

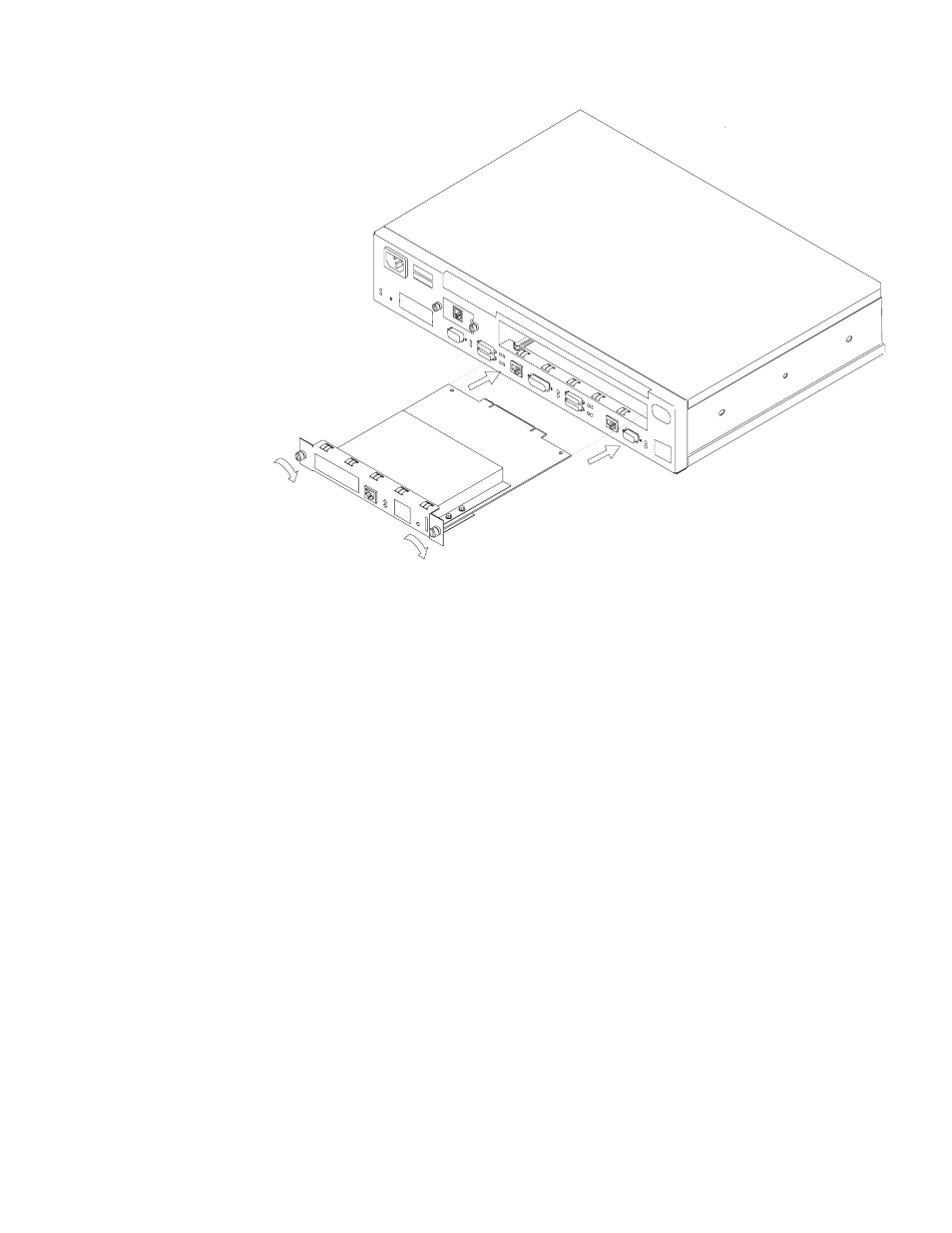

4-39. Installing the Optional Adapter (Actual adapter may appear different)
1
Unplug the power cord.
2
Remove the blank faceplate by loosening the two screws and pulling the
plate toward you.
3
Check to ensure that the Adapter Enablement Feature is installed. Look
inside the module slot and ensure that the guide rails for the card are
present.
If the guide rails are not visible, an authorized service representative must
install the Adapter Enablement Feature. If you have not ordered the Adapter
Enablement Feature, you should do so before proceeding.
If the feature is not installed, refer to the
IBM 2210 Nways Multiprotocol
Router Service and Maintenance Manual.
4
Remove the adapter from the antistatic bag.
5
While holding the adapter carefully by the front plate insert it into the
opening. Make sure that the edges of the adapter line up with the guide
rails.
6
Press the adapter into the slot.
7
Secure the adapter in place by tightening the screws.
8
Plug the power cord into the outlet.
