Setting the HDD
1. Connect the HDD FPC Ass’y to the HDD.
2. Insert the HDD Ass’y into the HDD Damper.
3. Set the HDD Ass’y into the HDD Case Upper.
4. Attach the HDD Case into the HDD Case Upper Ass’y

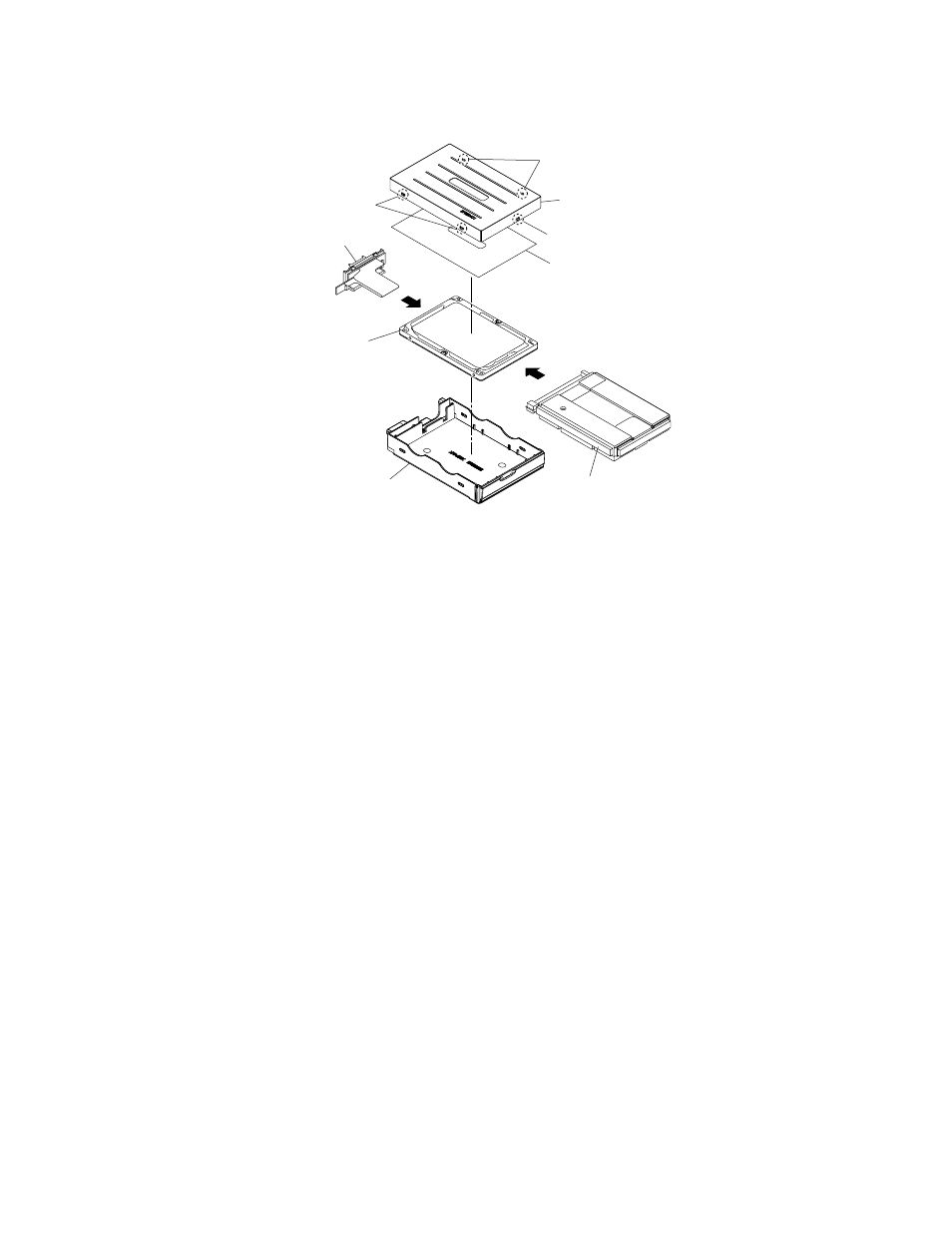

HDD FPC
ass'y
HDD case upper
Hook
Hook
HDD
Hook
HDD insulation
sheet
HDD case
HDD damper
