9.2.11.

Setting the PWR BATTERY LED PCB

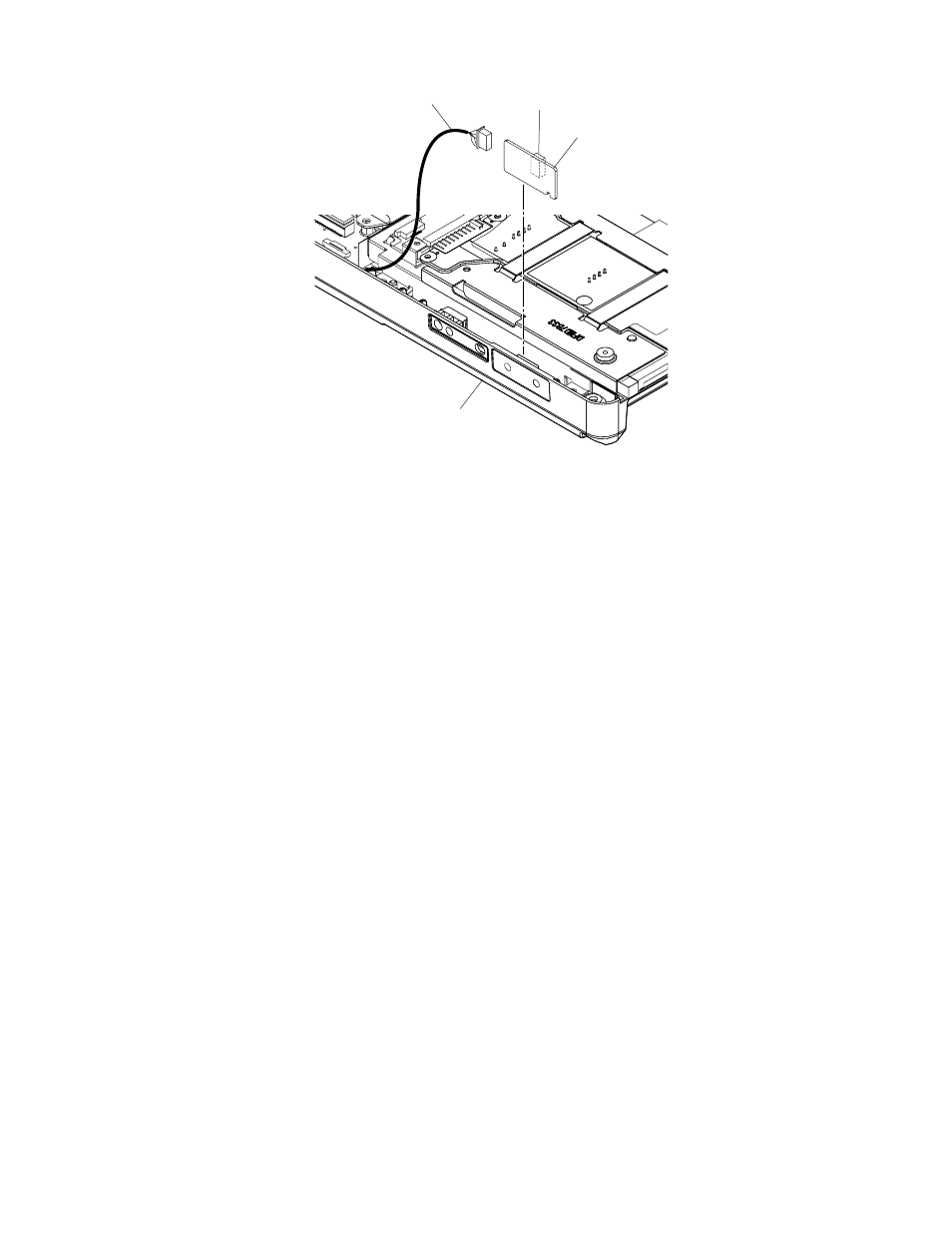

1. Connect the Cabel to the Connector(CN4400), and insert it to the computer.

CN4400

Cable

PWR BATTERY

LED PCB

Bottom case ass'y
