9-16

9.2.5.

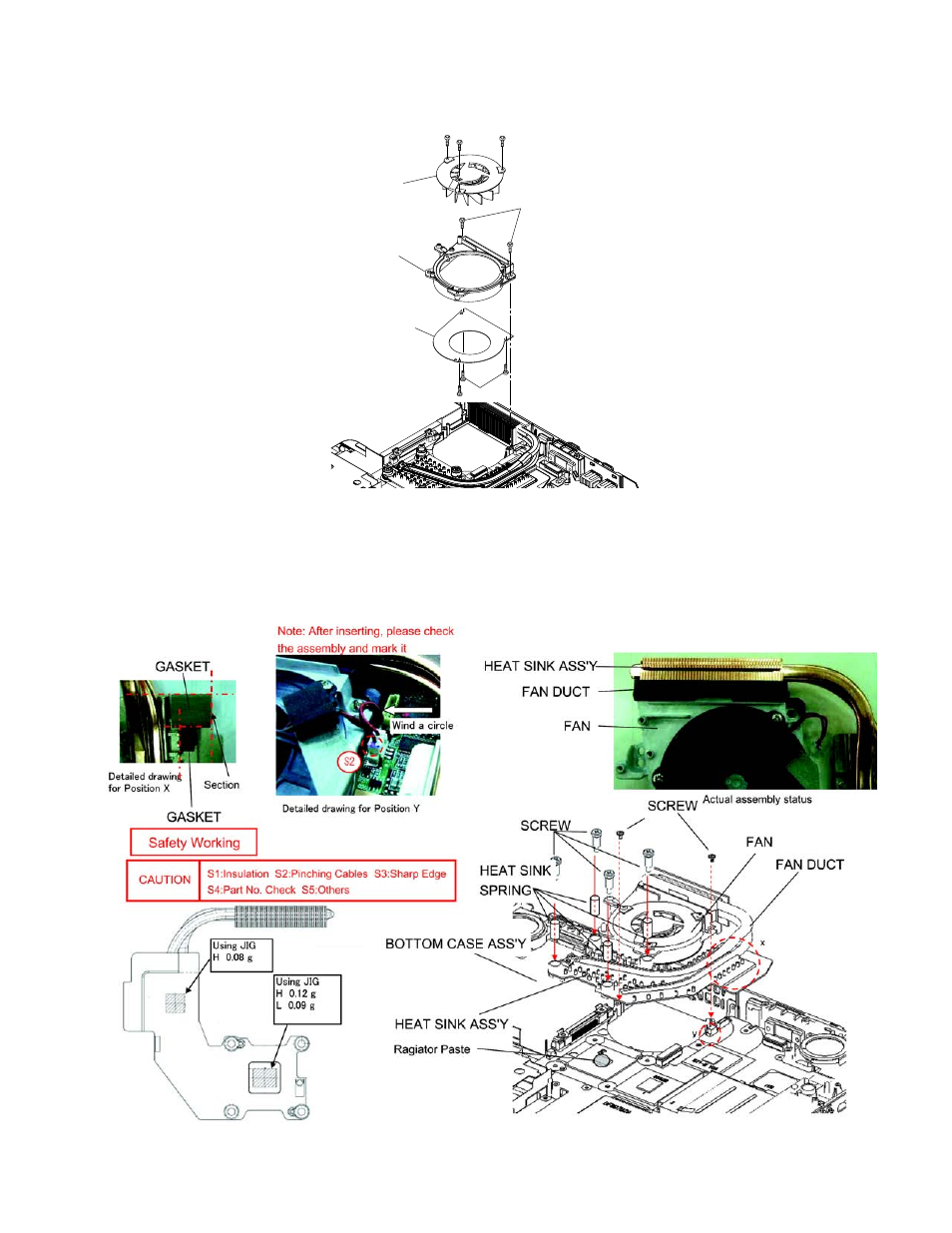

Setting the Fan Ass’y

1. Fix the Fan Case Plate to the Fan Case using the three Screws .
2. Fix the Fan to the Fan Case using the three Screws .
3. Set the Fan Ass’y to the computer, and fix it using two Screws . No.1, No.2

Screw : DFHE5122YA
Screw : DRHM0093ZA
Screw : DXSB2+4FNLT

■How to assemble the Heat Sink Ass’y and Fan Ass’y.

Fan

Fan case

Fan case plate
